Satel ETHM-A, Varslingsmodul, Sikkerhetsalarmsystem, Satel, INTEGRA, Grønn, Vegg
Varenr.: [8216828] | Producent: SATEL | Model-nr.: ETHM-A | EAN: 5905033337183
Fjernlager
Varen er på fjernlager, leveringstiden er 6-8 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
1.373,00
eksklusiv MVA 1.098,40
Totalt inkl. frakt
1.373,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail

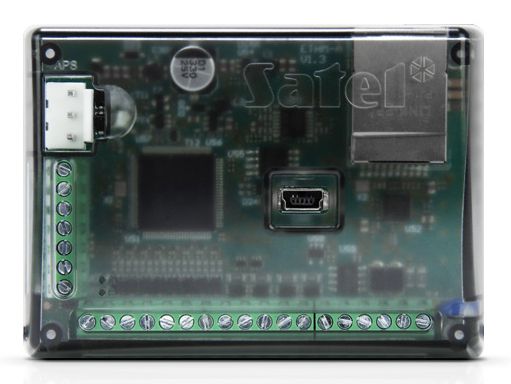

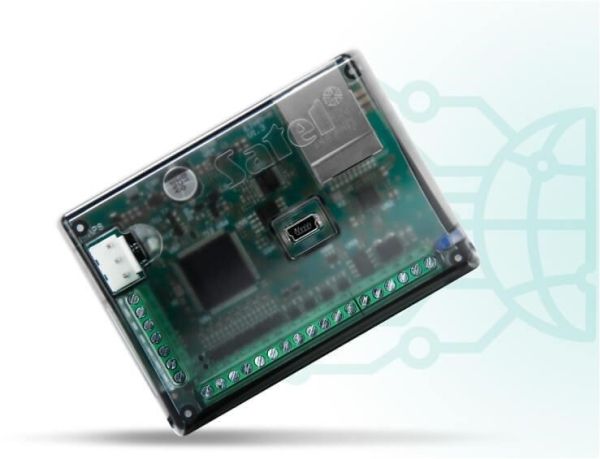

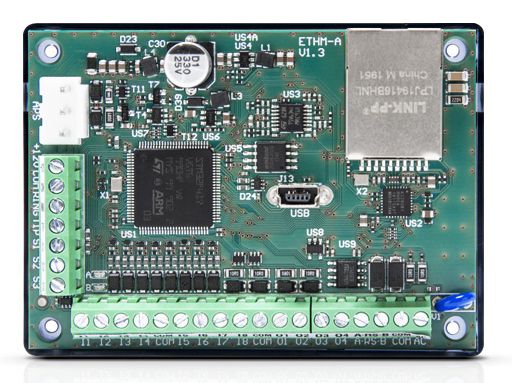

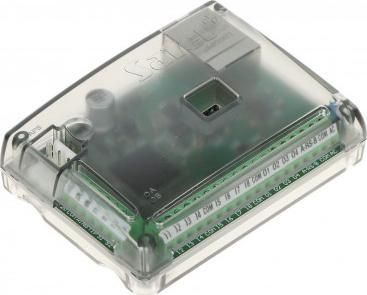

ETHM-A is a universal monitoring module which can operate autonomously, as part of an intruder alarm system or in automation systems. The module allows transmission of information via the Ethernet network.
In intruder alarm systems, the module can be used for event reporting, when connected to an alarm control panel via its dialler. ETHM-A can also be connected to a control panel using suitably configured control panel outputs connected to the module inputs.
ETHM-A has 8 inputs which can be programmed as NO, NC or analogue to work with devices equipped with NO or NC outputs, analogue sensors or D/A converters. Additionally, it is equipped with a 1-Wire digital sensor bus and can be connected to max 8 detectors (e.g., temperature) with a maximum bus length of 30 m. In this way, the module can be used to collect and transmit various types of data within the IoT, e.g., current temperature, humidity level and others. ETHM-A can also transmit to the monitoring station events that have taken place in the alarm system (e.g., arming, alarms and others).
ETHM-A has 4 transistor outputs (OC). They can be controlled remotely, e.g., using the GX CONTROL mobile app, a computer with the GX Soft software installed or within the IoT.
The module can also be used to send PUSH notifications to mobile devices with the GX CONTROL app installed and via e-mail.
To program and configure the module, a PC with the GX Soft software installed is required. ETHM-A supports local connection (USB) or remote connection (Ethernet). The ETHM-A firmware can be updated remotely using the UpServ software.
In intruder alarm systems, the module can be used for event reporting, when connected to an alarm control panel via its dialler. ETHM-A can also be connected to a control panel using suitably configured control panel outputs connected to the module inputs.
ETHM-A has 8 inputs which can be programmed as NO, NC or analogue to work with devices equipped with NO or NC outputs, analogue sensors or D/A converters. Additionally, it is equipped with a 1-Wire digital sensor bus and can be connected to max 8 detectors (e.g., temperature) with a maximum bus length of 30 m. In this way, the module can be used to collect and transmit various types of data within the IoT, e.g., current temperature, humidity level and others. ETHM-A can also transmit to the monitoring station events that have taken place in the alarm system (e.g., arming, alarms and others).
ETHM-A has 4 transistor outputs (OC). They can be controlled remotely, e.g., using the GX CONTROL mobile app, a computer with the GX Soft software installed or within the IoT.
The module can also be used to send PUSH notifications to mobile devices with the GX CONTROL app installed and via e-mail.
To program and configure the module, a PC with the GX Soft software installed is required. ETHM-A supports local connection (USB) or remote connection (Ethernet). The ETHM-A firmware can be updated remotely using the UpServ software.
