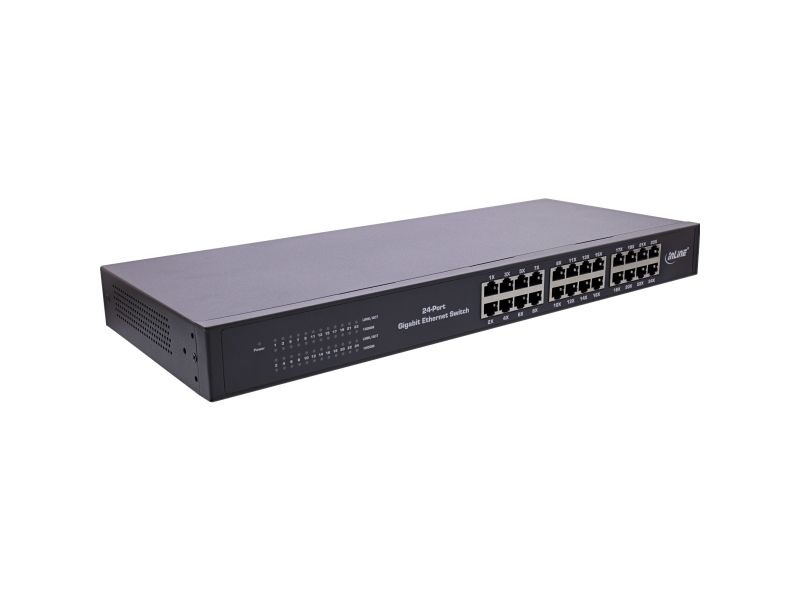

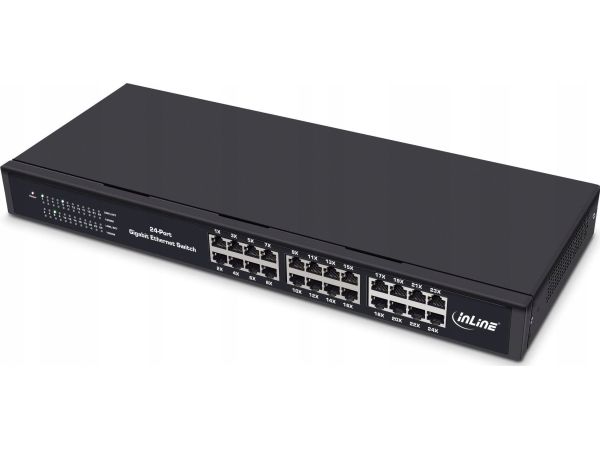

InLine 32324O, Gigabit Ethernet (10/100/1000), Full tosidig, Rack-montering, 1U
Varenr.: [9835408] | Producent: Inline | Model-nr.: 32324O | EAN: 4043718298129
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
1.839,00
eksklusiv MVA 1.471,20
Totalt inkl. frakt
1.839,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Efficiently expand a Gigabit network in a 19-inch rack
High port density for many end devices:24x 10/100/1000 Mb/s with Auto-Negotiation and Auto MDI/MDIX.
Reduce power consumption during operation:IEEE 802.3az (EEE) adapts signal strength to cable length and load.
Stable forwarding under data load:Store-and-forward and IEEE 802.3x flow control support smooth traffic.
Quick diagnostics in everyday use:LEDs for Power and Link/Activity/Speed show status at a glance.
Rack-mountable and robust:19 inch, 1U, metal housing with mounting brackets.
The 24-port Gigabit switch distributes traffic reliably and brings existing infrastructures up to 1 Gb/s per port with minimal effort. Auto-Negotiation and Auto MDI/MDIX simplify cabling, while IEEE 802.3az dynamically reduces power demand. Store-and-forward, flow control and jumbo frames support reliable forwarding; the MAC address table with 16K entries provides efficient switching.
In professional IT environments and existing infrastructures of companies and public institutions, the device can be operated in a space-saving manner in a 19-inch rack. For on-site installations and service deployments, the clear LED indicators and robust metal construction support swift commissioning and reliable operation.
Ports:24x 10/100/1000 Mb/s, Auto-Negotiation, Auto MDI/MDIX
Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Forwarding method:store-and-forward
Switching capacity:52 Gb/s
MAC address table:16K
Jumbo frames:supported
LEDs:LINK/ACT/SPEED (green), Power (red)
Chipset:RTL8382L, 2x RTL8218D, 2x RTL8231
Dimensions:440 x 180 x 44 mm
Form factor:19 inch, 1U
Mounting:19-inch brackets included
Operating temperature:0-40 °C
Storage temperature:-10-70 °C
Operating humidity:10-90 %, non-condensing
Storage humidity:5-90 %, non-condensing
Power supply:AC 100-240 V, 50/60 Hz (internal power supply)
Power consumption:max. 21 W
Housing:metal
Cables:UTP Cat.3/4/5 (10Base-T), UTP Cat.5/5e or higher (100Base-TX), UTP Cat.5e or higher (1000Base-T), EIA/TIA-568 100 Ohm STP, up to 100 m each
Forwarding rate:10 Mb/s 14880 pps; 100 Mb/s 148800 pps; 1000 Mb/s 1488000 pps
