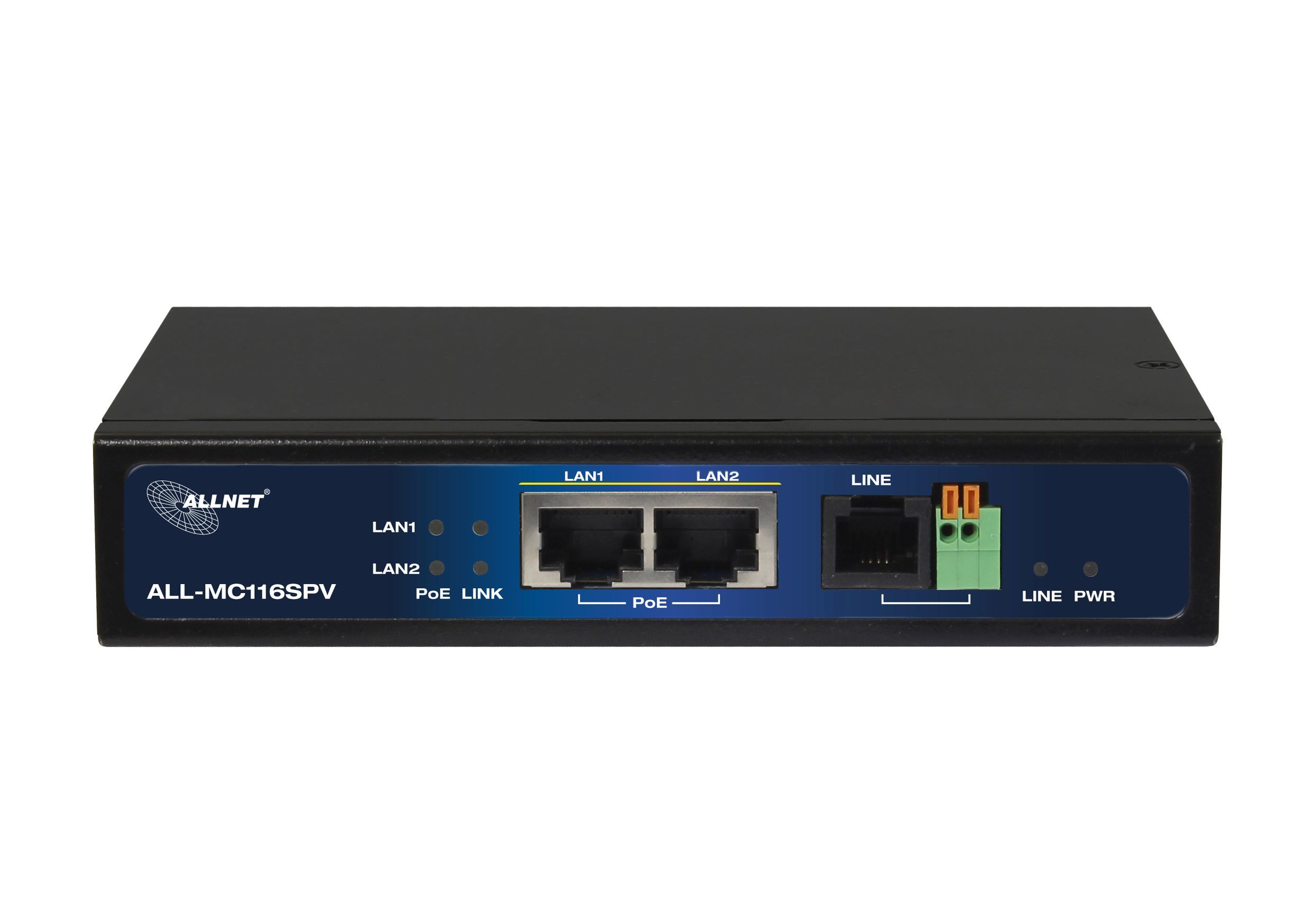

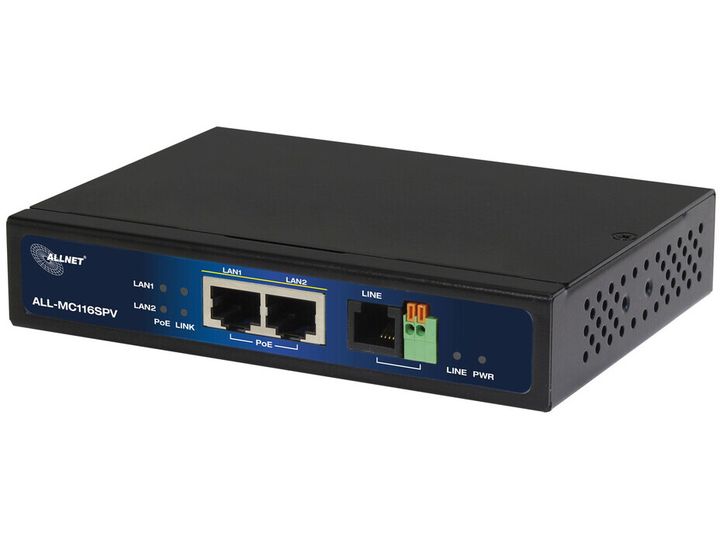

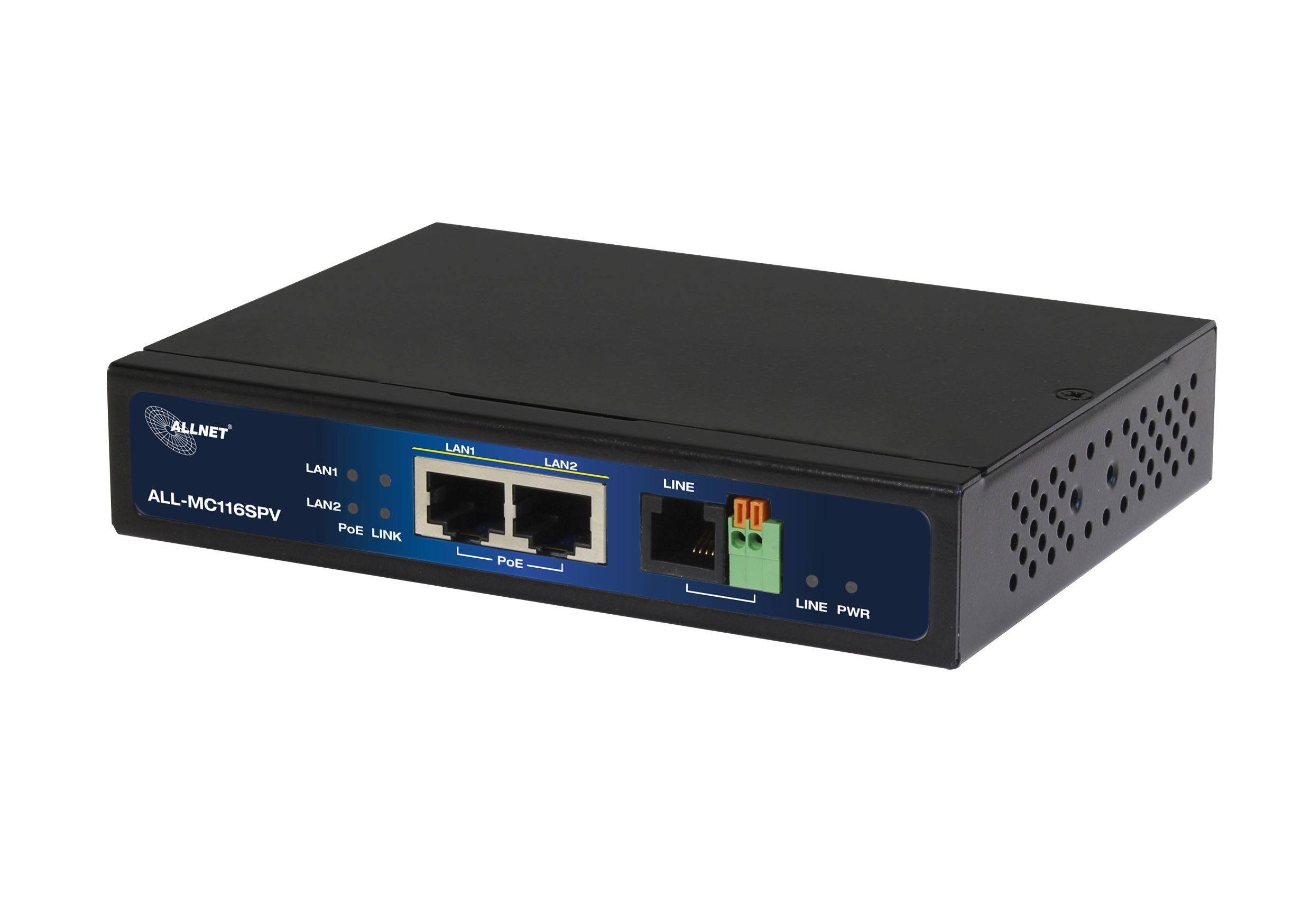

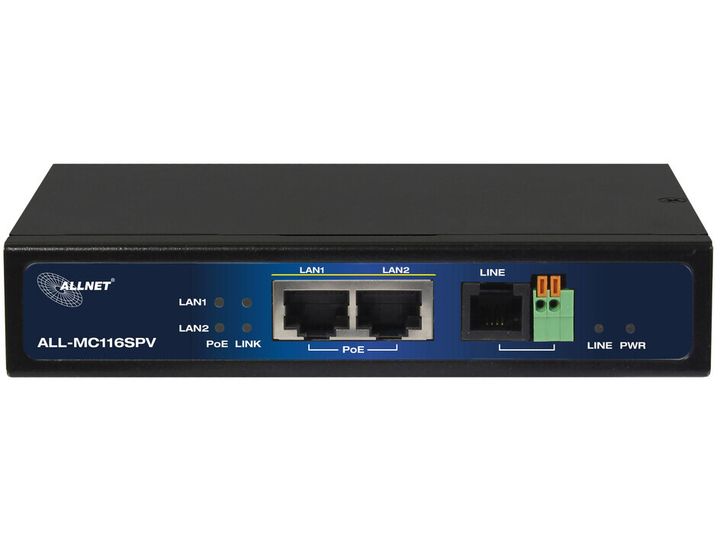

ALLNET ALL-MC116SPV-VDSL2, 10BASE-T, 100BASE-T, DMT, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Sort, ADSL (RJ-11), Ethernet (RJ-45), Metall

The ALL-MC116SPV-VDLS2 is a cost-effective unmanaged VDSL2 bridge modem with integrated 2x port PoE switch according to IEEE802.3at with max. 30W per PoE port. It uses the G.993.2 VDSL2 standard technology for data transmission on only one copper cable pair. Data transmission over only a single copper cable pair. The ALL-MC116SPV-VDSL2 is specifically designed to support vectoring for Telcom & ISP to hospitality solutions for operation on DSLAM's. The modem is therefore compatible with standard VDSL2 up to 100Mbit VDSL2 connections. The modem has 2x 10/100/1000Base-T Ethernet ports with PoE IEEE802.3at max. 30W per port. PoE budget = 60W. Thus, this extender offers a flexible solution to extend the LAN network and is perfect for use in buildings, hotels, hospitals or other places outside the range of 10/100/1000Base-T (Ethernet).

Especially the vectoring technology distinguishes the ALL-MC116SPV-VDSL2 from its brothers that it is designed for vectoring connection to a DSLAM, whether it is used for provider ISP or in-house DSLAM later. Important to note, this is an unmanaged device. With unmanaged bridge modems you have NO chance to read out the bandwidth or set VLAN tags etc.. Of course you can read out the data at your DSLAM as they synronized. The 2x PoE ports according to IEEE802.3at with max. 30W per port are now still ideal to operate PoE devices such as WLAN access points or PoE tablets up to patient monitors or other end devices in the hospital room/hotel room/nursing homes etc. directly on the two ports.
