Extralink 1 PORT GIGABIT POE INJECTOR WITH 10-30V TO 48V INVERTER, Raskt Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.1af, IEEE 802.3at, Cat5e, Cat6, Cat6a, Sort, Nettverk
Varenr.: [9569534] | Producent: EXTRALINK | Model-nr.: EX.14671 | EAN: 5903148914671
Ikke på lager
Varen er ikke på lager.
Frakt 69,00 - Instabox - Velg din nærmeste pakkeboks.
Fraktprisen er basert på levering til dette postnummer: - Skift postnummer
Oppgi postnummer for levering.
Se alle alternativer
| Instabox - Velg din nærmeste pakkeboks | 69,00 |
| Bring - Hentes på Posten | 75,00 |
| PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden | 159,00 |
| Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer) | 224,00 |
Utsolgt
Varen er ikke på lager.
NOK
200,00
eksklusiv MVA 160,00
Totalt inkl. frakt
269,00
Gi meg beskjed når varen er på lager igjen.
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail

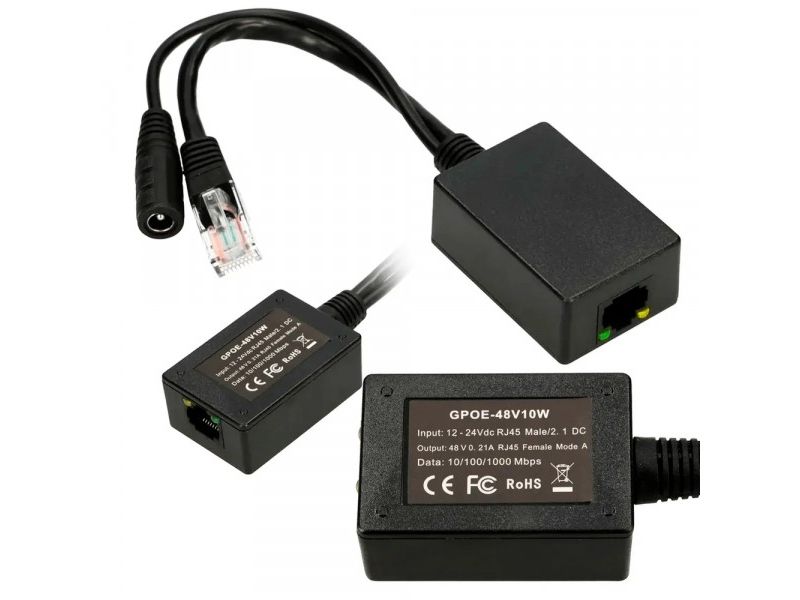

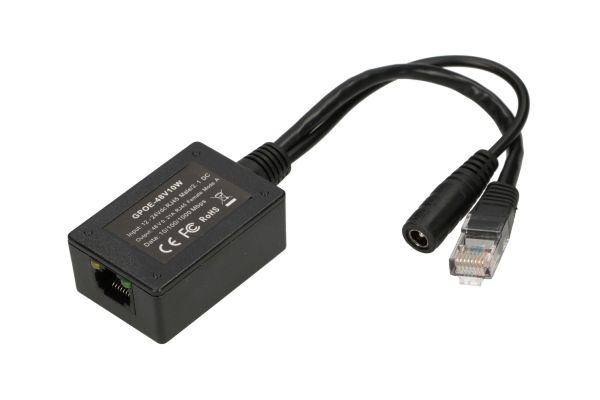

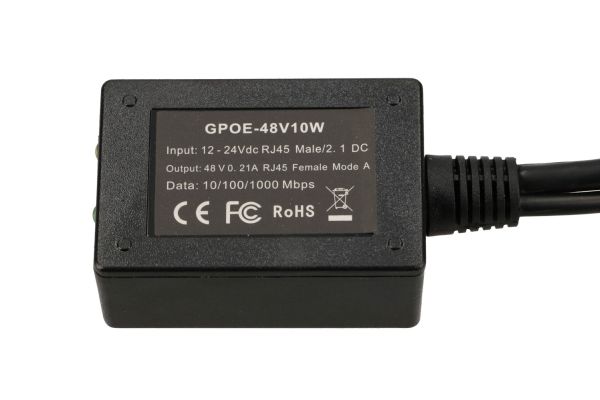

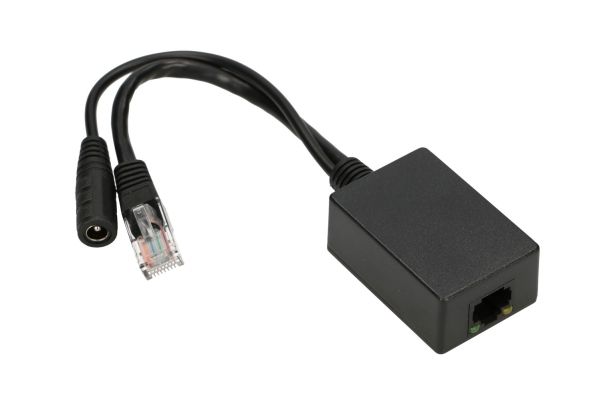

Extralink poe injector
The Poe injector allows you to bring power to your 10/100/1000mbps network over CAT5e, CAT6 or CAT6A Ethernet cable. The power source can be any power supply from 10V to 30V and the output voltage of the injector is 48V. The poe adapter can be powered from the DC jack 5.5/2.1 mm connector - or from the RJ45 plug pins - 4.5 (plus) and 7.8 - (minus). Thanks to the poe injector, a battery (12V or 24V) or passive PoE (10V-30V) can be used to power the 48V device.
When connecting power to the DC jack 2.1mm input - the power will be isolated from the male RJ-45 connector - so it can be connected to a switch or router. The 48V output voltage is delivered to pins 3.6 (plus) and 1.2 - (minus) of the RJ-45 female jack to power any 802.3af device. This converts both the voltage that the receiving device is powered by and the pins on which the power over ethernet operates.Extralink PoE Inverter 1 Port Input 1x 1000Mb/s RJ45/Jack 10-30V, Output 48V. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1af, IEEE 802.3at. Product colour: Black, LED indicators: Link. Power over Ethernet (PoE) voltage: 48 V. Package type: Box. Number of products included: 1 pc(s)
The Poe injector allows you to bring power to your 10/100/1000mbps network over CAT5e, CAT6 or CAT6A Ethernet cable. The power source can be any power supply from 10V to 30V and the output voltage of the injector is 48V. The poe adapter can be powered from the DC jack 5.5/2.1 mm connector - or from the RJ45 plug pins - 4.5 (plus) and 7.8 - (minus). Thanks to the poe injector, a battery (12V or 24V) or passive PoE (10V-30V) can be used to power the 48V device.
When connecting power to the DC jack 2.1mm input - the power will be isolated from the male RJ-45 connector - so it can be connected to a switch or router. The 48V output voltage is delivered to pins 3.6 (plus) and 1.2 - (minus) of the RJ-45 female jack to power any 802.3af device. This converts both the voltage that the receiving device is powered by and the pins on which the power over ethernet operates.Extralink PoE Inverter 1 Port Input 1x 1000Mb/s RJ45/Jack 10-30V, Output 48V. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1af, IEEE 802.3at. Product colour: Black, LED indicators: Link. Power over Ethernet (PoE) voltage: 48 V. Package type: Box. Number of products included: 1 pc(s)
