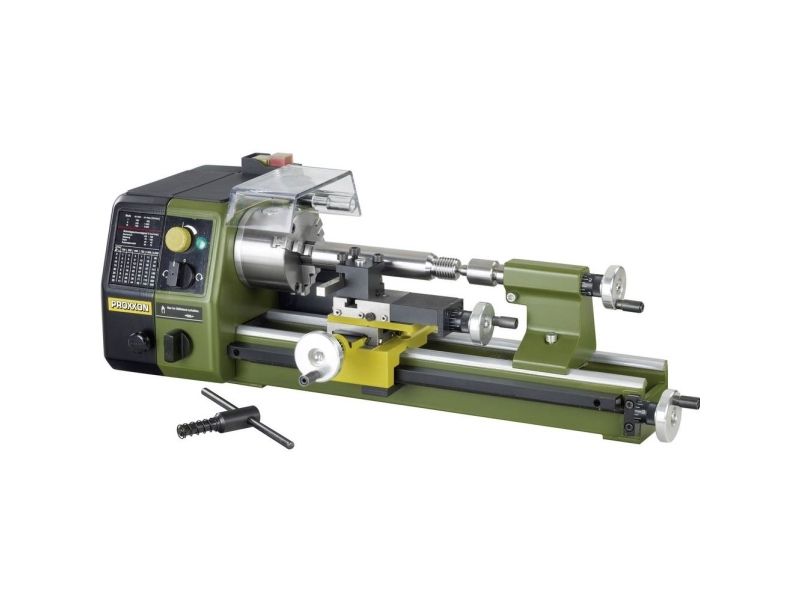

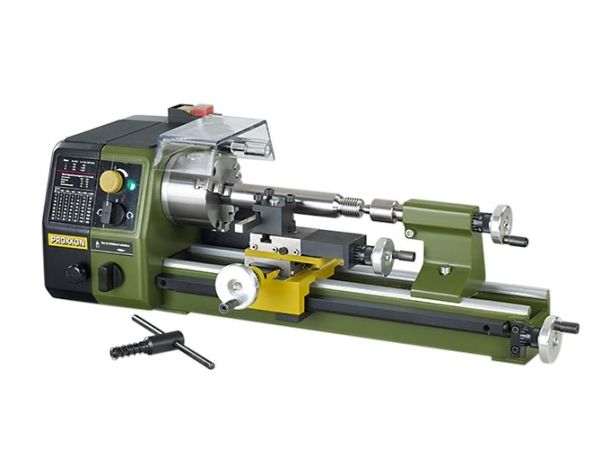

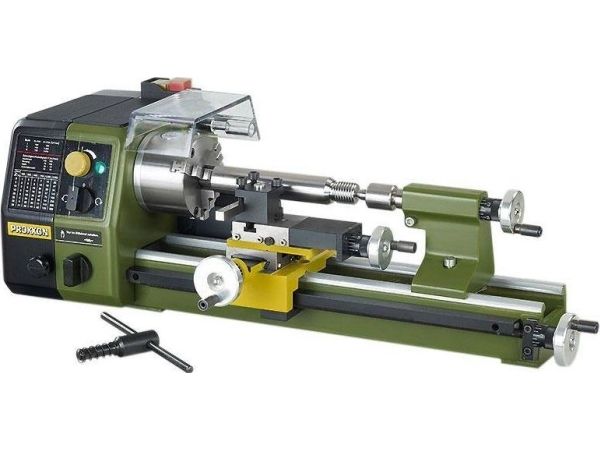

Proxxon dreiebenk Proxxon PD 250/E, presis
Varenr.: [9171570] | Producent: Proxxon | Model-nr.: PR24002 | EAN: 4006274240025
Fjernlager
Varen er på fjernlager, leveringstiden er 6-8 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
22.629,00
eksklusiv MVA 18.103,20
Totalt inkl. frakt
22.629,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Trenger du en reservedel til elektroverktøyet ditt?
Konfiguratoren vår viser nøyaktig de delene som passer til PR24002 - kullbørster, brytere, gir, chucker, batterier og mye mer.
Finn reservedeler til modellen din- Deler til denne modellen på lager
- Levering 1-2 virkedager
- Originale og kompatible deler
For face, longitudinal and taper turning, thread-cutting. For machining steel, brass, aluminium and plastic. Mounting flange for fastening the mill/drill head PF 230.
Centre distance 250mm. Swing 70mm. Height over cross slide 43mm.
Machine bed: Of cast iron, wide-legged shape and prism slides. For vibration-free work even at high loads. Rear flange for mounting the mill/drill head PF 230. Covered lead spindle.
Headstock: Of die-cast aluminium. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).
Tailstock: Of die-cast aluminium. Sleeve Ø 20mm, retractable up to 30mm. With millimetre scale, MK 1 bore and live centre.
Support: Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm.
Drive: Quiet DC special motor with 3-stage belt drive for 300 - 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 - 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.
Lathe chuck: High quality 3-jaw chuck as per DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws from 2 - 75mm. Including lathe chuck guard with safety shutdown.
Handwheels: Of aluminium, with adjustable scale ring (1 division = 0.05mm, 1 revolution = 1mm).
Thread cutting device: With change gears for left-hand and righthand threads of the most important metric pitches (0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5mm).
Other technical data: 220 - 240V. 50/60Hz. Size L 560, W 270, H 170mm. Weight approx. 12kg.
Centre distance 250mm. Swing 70mm. Height over cross slide 43mm.
Machine bed: Of cast iron, wide-legged shape and prism slides. For vibration-free work even at high loads. Rear flange for mounting the mill/drill head PF 230. Covered lead spindle.
Headstock: Of die-cast aluminium. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).
Tailstock: Of die-cast aluminium. Sleeve Ø 20mm, retractable up to 30mm. With millimetre scale, MK 1 bore and live centre.
Support: Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm.
Drive: Quiet DC special motor with 3-stage belt drive for 300 - 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 - 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.
Lathe chuck: High quality 3-jaw chuck as per DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws from 2 - 75mm. Including lathe chuck guard with safety shutdown.
Handwheels: Of aluminium, with adjustable scale ring (1 division = 0.05mm, 1 revolution = 1mm).
Thread cutting device: With change gears for left-hand and righthand threads of the most important metric pitches (0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5mm).
Other technical data: 220 - 240V. 50/60Hz. Size L 560, W 270, H 170mm. Weight approx. 12kg.
