InLine 64601, Sender og Mottaker, Koblet med ledninger (ikke trådløs), 100 m, Cat5, Cat6, 3840 x 2160 piksler, 30 Hz

4K KVM distribution over Ethernet up to 100 m with 1-frame latency

4K signal over Ethernet up to 100 m:Transmit an HDMI source via direct CATx cable or via Gigabit switch to a remote display.
Real-time control via USB 2.0:Control keyboard and mouse over IP-KVM with 1-frame latency.

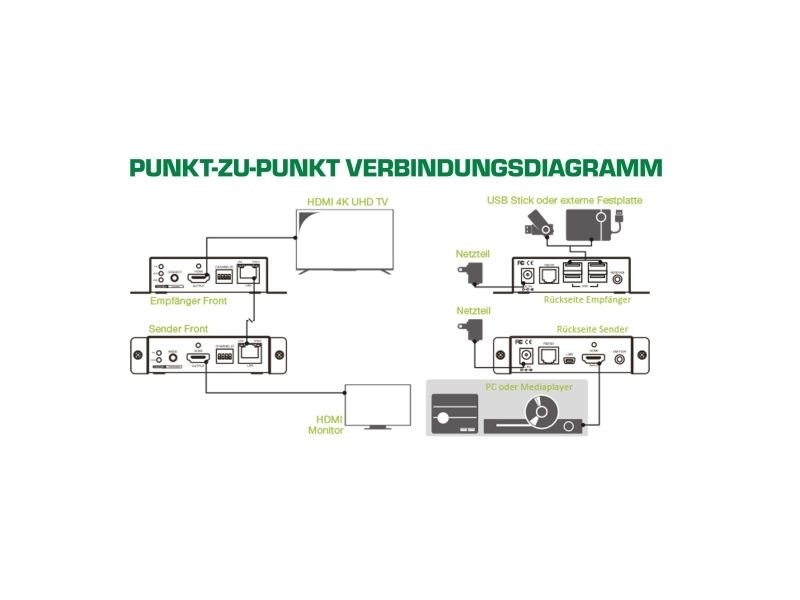

Flexible distribution and video walls:Implement point-to-point, point-to-multipoint, and video wall scenarios with multiple units.
Easy administration:Control via web interface, HTTPS/Telnet, and RS-232 for fast access.
Local monitoring included:HDMI loopback at the transmitter enables parallel display at the source location.

The HDMI USB KVM extender transmits video signals up to 3840 x 2160 at 30 Hz along with 7.1 audio channels over an active LAN or a direct CATx connection. HDCP 2.2 and automatic EDID configuration support smooth operation. The bitrate control of 10-800 Mb/s enables transmission adaptable to the environment. The receiver can select a suitable output format via the hybrid video output, and audio can be extracted as analog 2-channel LPCM if required.
In exhibition and demo areas, at workstations, and in control centers, the solution facilitates scalable installations over existing infrastructures with Gigabit switches. Features such as web-based management, HTTPS/Telnet, and RS-232 accelerate setup, service deployments, and operation in companies and public institutions.

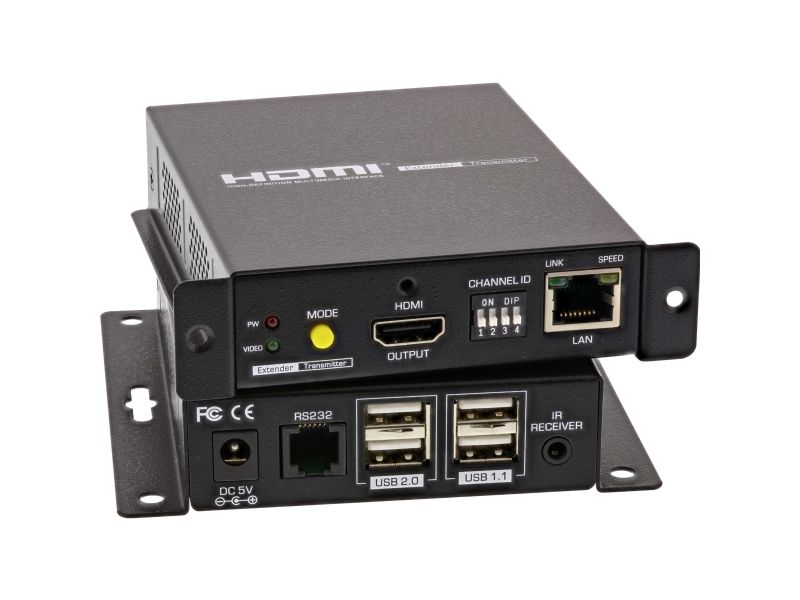

Network port:1x RJ45 socket (transmitter/receiver)

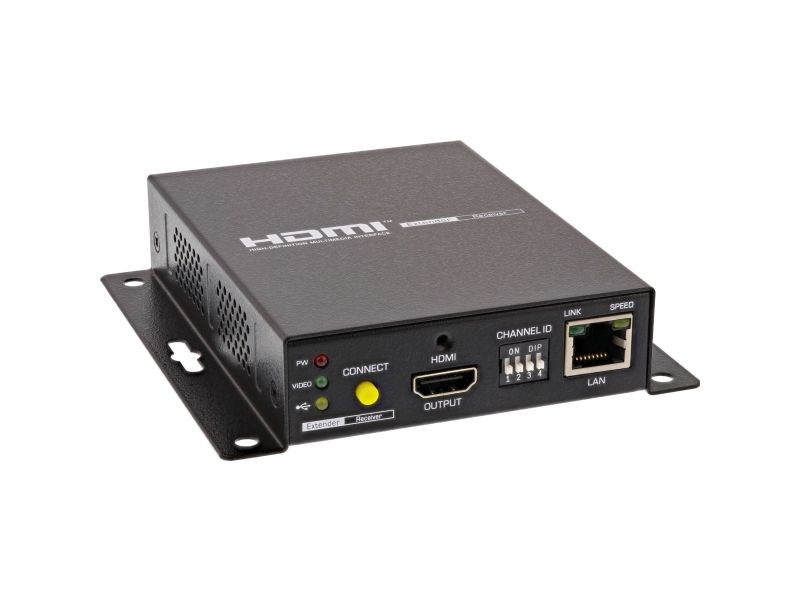

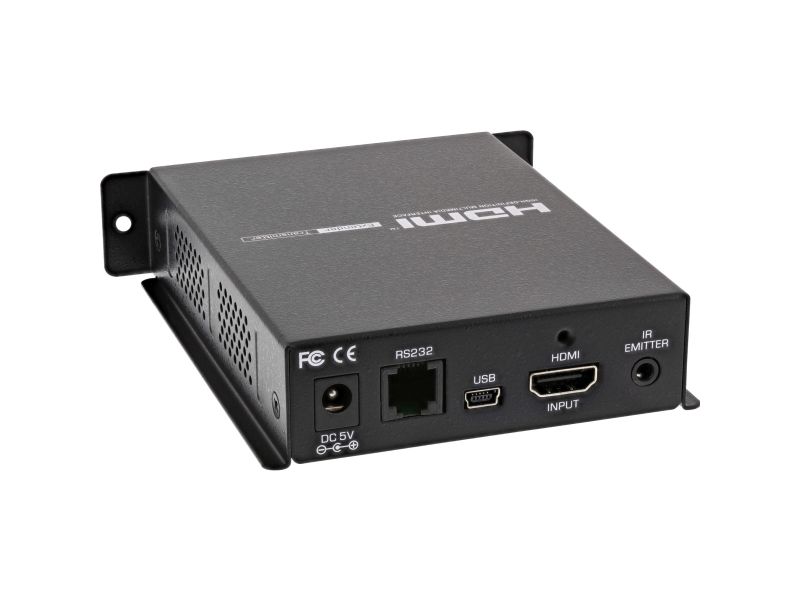

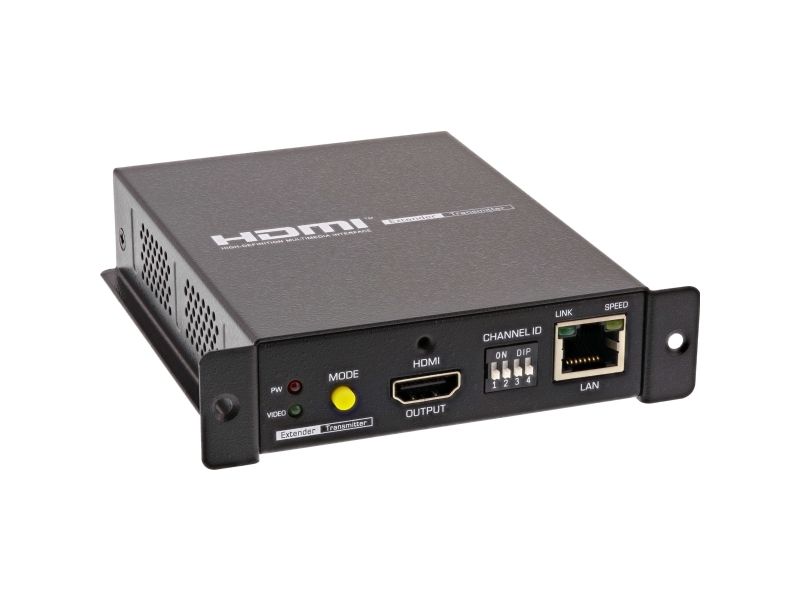

Video inputs/outputs:Transmitter 1x HDMI socket (in), 1x HDMI socket (out, loopback); Receiver 1x HDMI socket (out)
USB:Transmitter 1x USB type B socket; Receiver 4x USB type A sockets
IR:1x 3.5 mm female jack (transmitter/receiver)
RS-232:1x RJ12 socket (transmitter/receiver)
Resolution:3840 x 2160 at 30 Hz
Audio:7.1 channel, LPCM/DTS/Dolby/Dolby ATMOS
Latency:1 frame
Range:up to 100 m
Network operation:directly via CATx or via Gigabit Ethernet switch
HDMI/HDCP:up to HDMI 2.0, HDCP 2.2
Management:web interface, HTTPS/Telnet, RS-232
EDID:automatic configuration
Bitrate control:10-800 Mb/s
Video functions:video snapshot, rotation, partial zoom, shift
Hybrid video output:selectable format per receiver
Audio output:analog 2-channel LPCM (audio extract)
DIP switch:4-bit, 16 stream channels
Mounting:VESA mount, rack mounting
Dimensions:Transmitter 95 x 115 x 26 mm; Receiver 115 x 115 x 26 mm
Power supply:DC 5 V
Operating temperature:0-40 °C
Storage temperature:-20-60 °C
Humidity:0-90 %, non-condensing
