Enhanced Security Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering

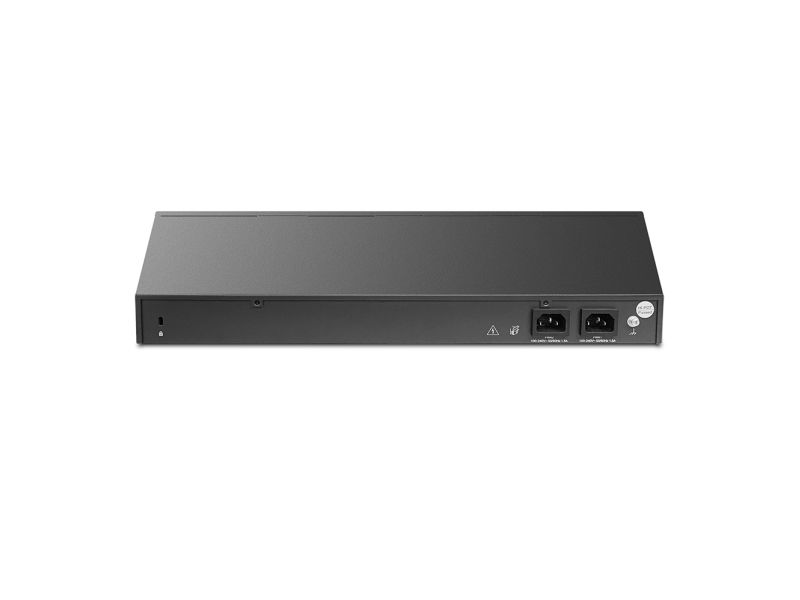

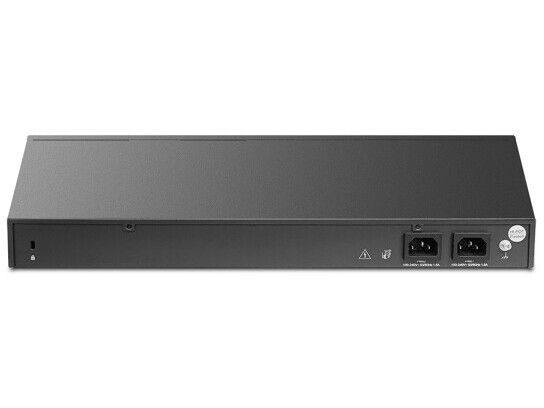

Dual Redundant Power Supplies Carrier-class reliability for enterprise networking

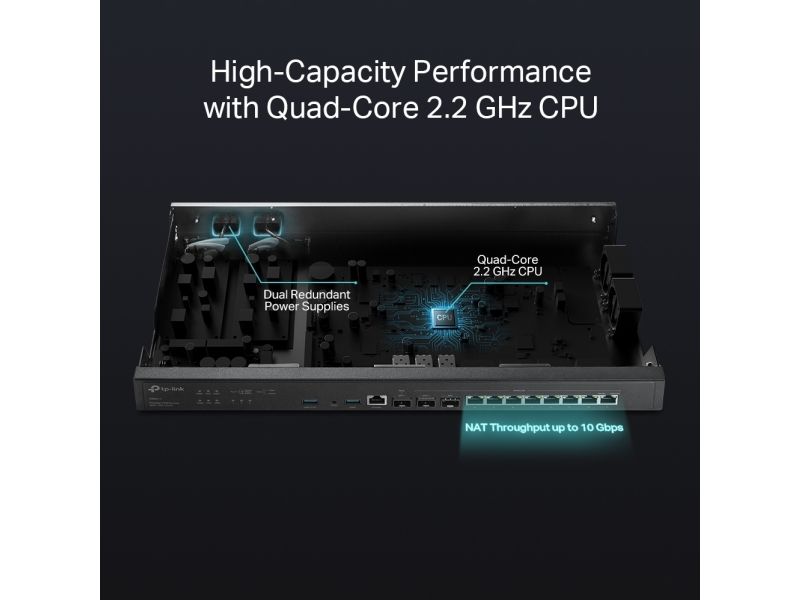

High-Capacity Performance with Quad-Core 2.2 GHz CPU Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

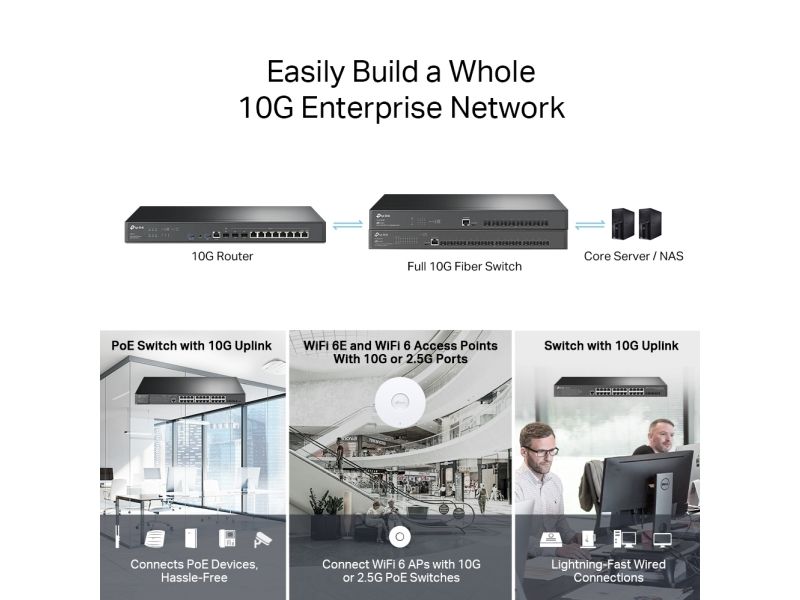

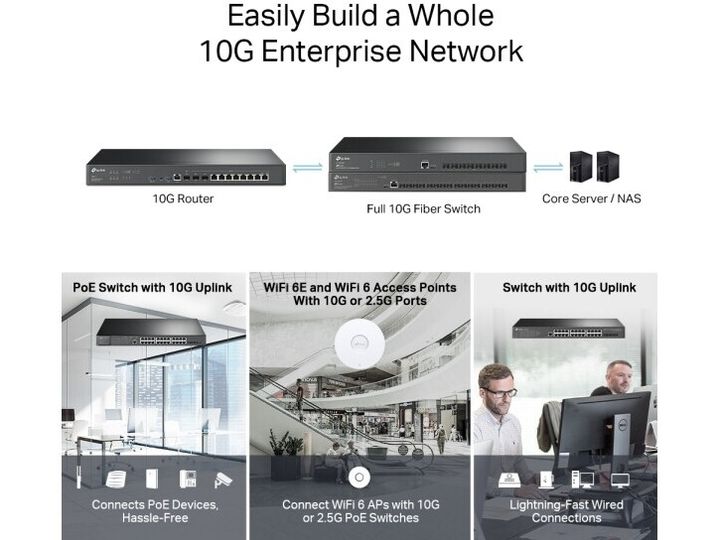

Maximize the 10G Broadband with Omada Enterprise Gateway Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.

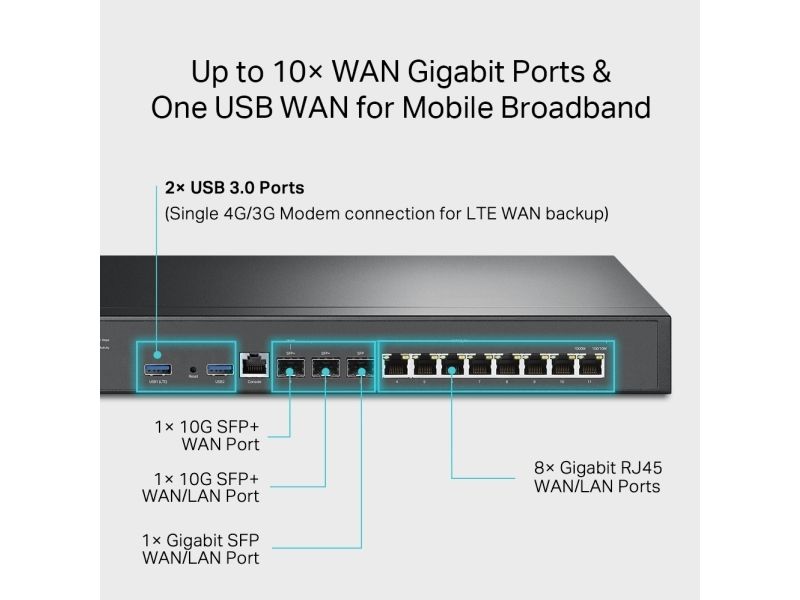

10× WAN Ports & One USB WAN for Mobile Broadband Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.

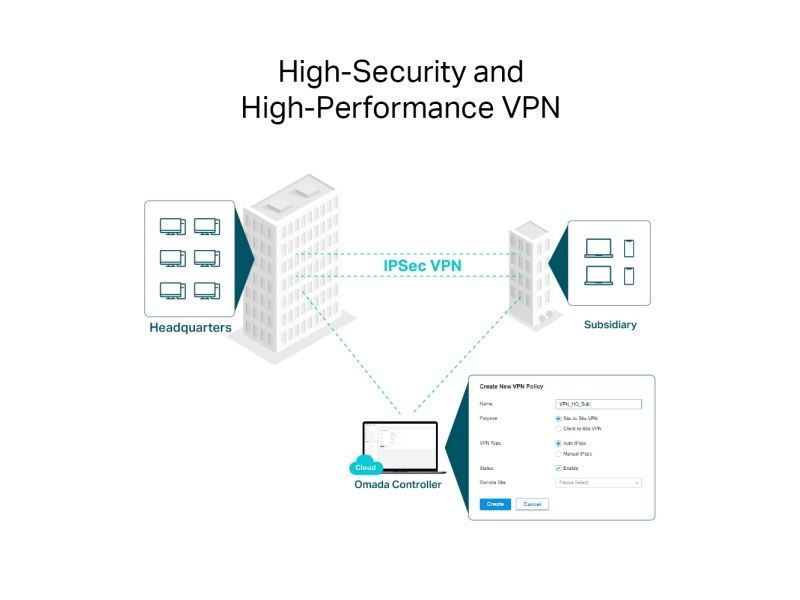

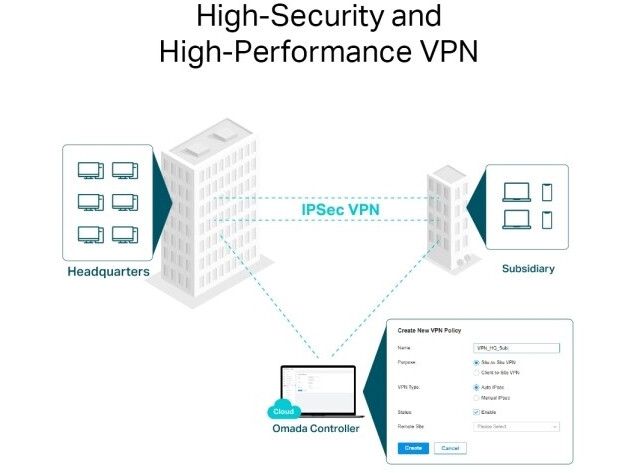

High-Security and High-Performance VPN ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
Powerful Firewall Advanced firewall policies protect your network and data.
IP/MAC/URL/Keyword Filtering Forcefully prevent viruses and attacks from intruders.
Convenient VLAN Support Create virtual network segments for enhanced security and simplified network management.
IP-MAC Binding Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
DoS Defense Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
One-Click ALG Activation One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.

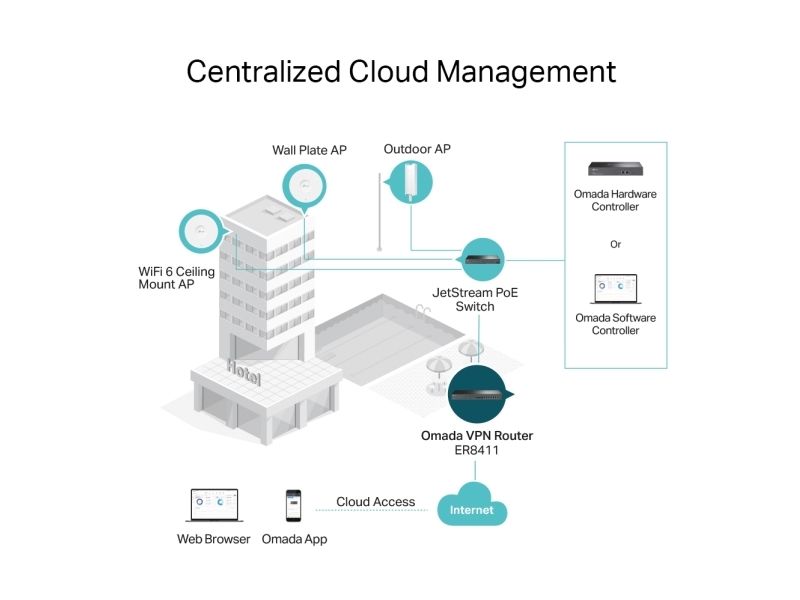

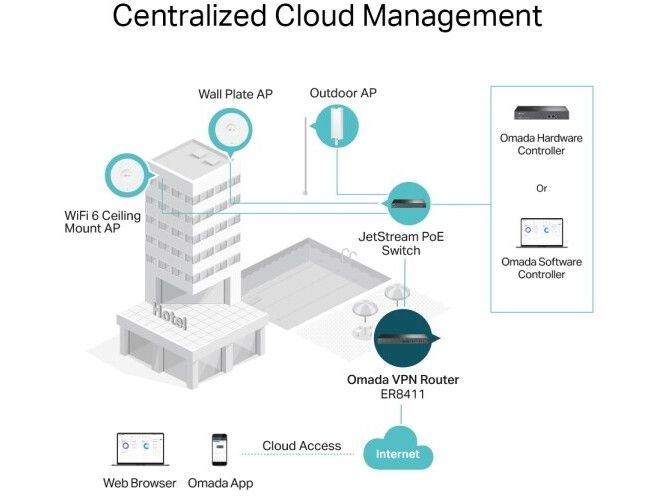

Seamless Integration into Omada SDN The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Produktbeskrivelse

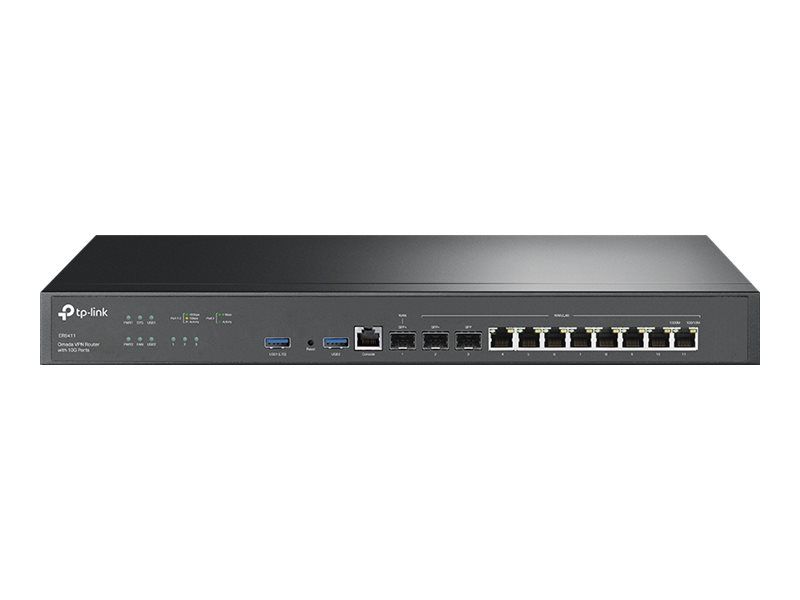

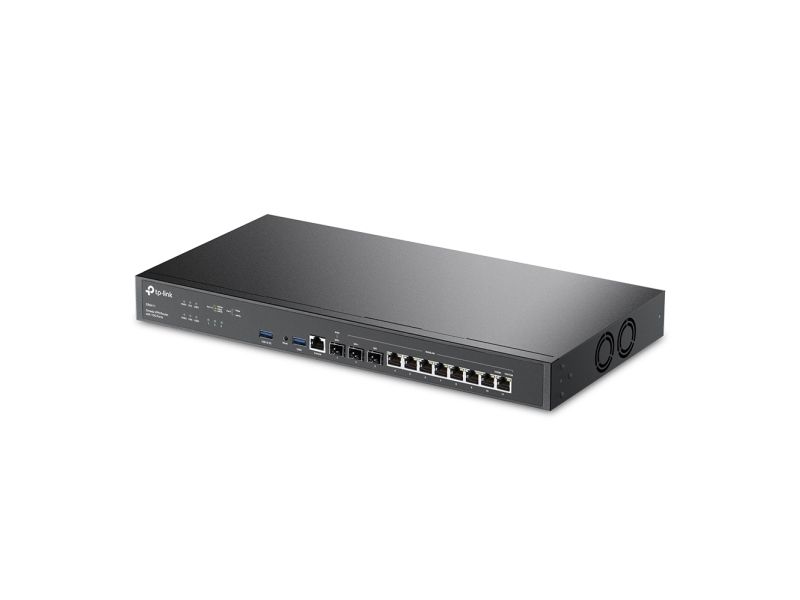

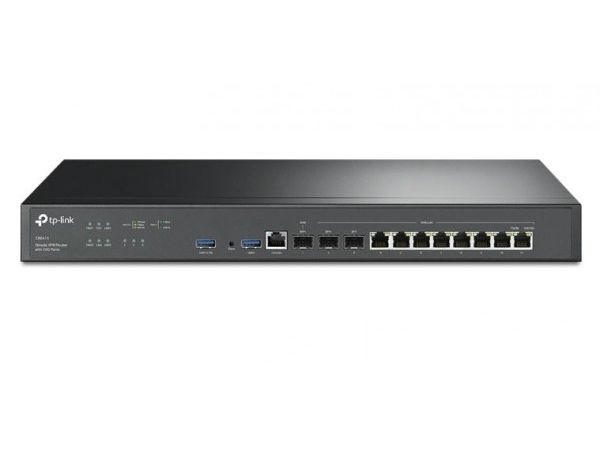

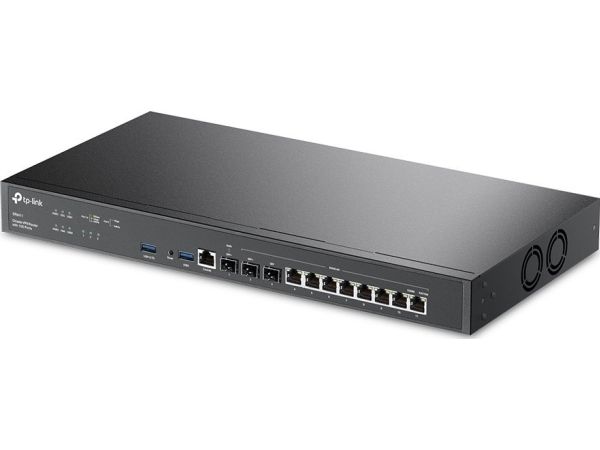

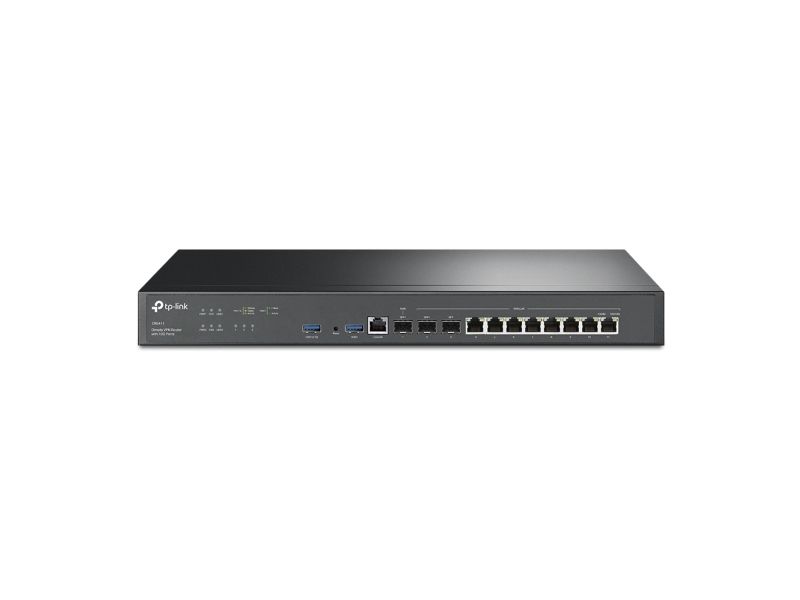

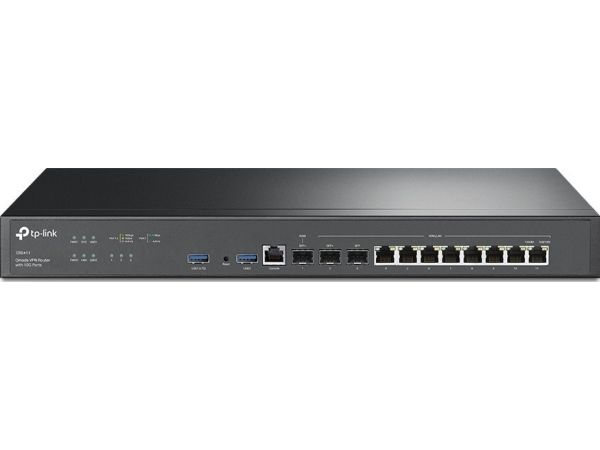

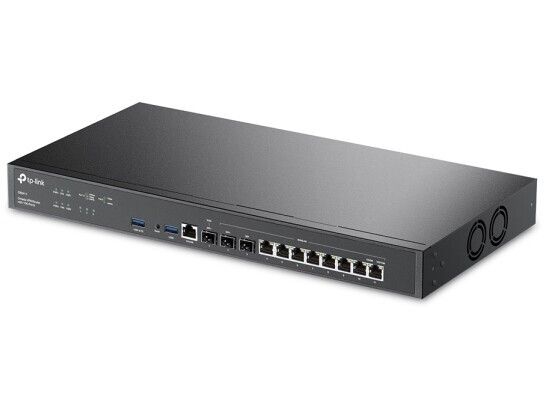

TP-Link Omada ER8411 V1 - ruter - rackmonterbar
Enhetstype
Ruter
Utførelse
Rackmonterbar
Digital signaleringsprotokoll
H.323, SIP
Datakjedeprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Nettverksovervåking, NAT-støtte, VLAN støttet, Syslog-støtte, ALG-støtte, VPN-gjennompassering, URL-filtrering, Ethernet Passthrough-port, ACL-støtte, DPD, IPSec NAT-T, virtuell severstøtte, DHCP-server, nullstillingsknapp, portutløsning, SPIF, IP-MAC-binding, DHCP-klient, statisk ruting, VPN-server, GARP, DoS, Ping of Death, IGMP-proksy, båndbreddekontroll per port, 2 vifter, ARP-kontroll, 4 kV-overspenningsvern, SDN, Web Filtering, VPN-klient, policy basert ruting, Hotspot Access Point Capability, PFS, ZPT, L2TP over IPSec, DMZ-støtte, MAC-klon, planomstart, OpenVPN-klient, PPTP VPN-klient, OpenVPN-server, IPTV-støtte, lastbalanse-nettverksmodus, enhetspåvisning, Address Reservation, økthastighetsbegrensning, USB backup
Tilpassede standarder
IEEE 802.1Q, UPnP, FCC, RoHS
Prosessor
2.2 GHz
RAM
4 GB DDR4 SDRAM
Flash-minne
256 MB
Statusindikatorer
Strøm, system, WAN, LAN, vifte, USB
Kommunikasjoner
Digital signaleringsprotokoll
H.323, SIP
IP-telefoni
VolP-protokoller
H.323, SIP
Ekspansjon / Tilkoplinger
Grensesnitt
WAN: 1 x 10GBase-X - SFP+ WAN / LAN: 1 x 10GBase-X - SFP+ WAN / LAN: 1 x 1000Base-X - SFP (mini-GBIC) WAN / LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Konsoll: 1 x RJ-45 USB 3.0: 1 x - LTE USB 3.0: 1 x
Strømforsyning
Strømenhet
Intern strømforsyning
Strømforsyningsredundans
Ja
Installert antall
2
Påkrevd nettspenning
AC 100-240 V (50/60 Hz)
Strømforbruk ved drift
26.36 watt
Diverse
Medfølgende kabler
1 x strømkabel
Monteringssett
Inkludert
Programvare / Systemkrav
OS påkrevd
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10, Microsoft Windows 11
Mål og vekt
Bredde
44 cm
Dybde
22 cm
Høyde
4.4 cm
Miljøparametere
Min. driftstemperatur
0 °C
Maks. Driftstemperatur
40 °C
Driftsfuktighet
10 - 90% (ikke-kondenserende)
