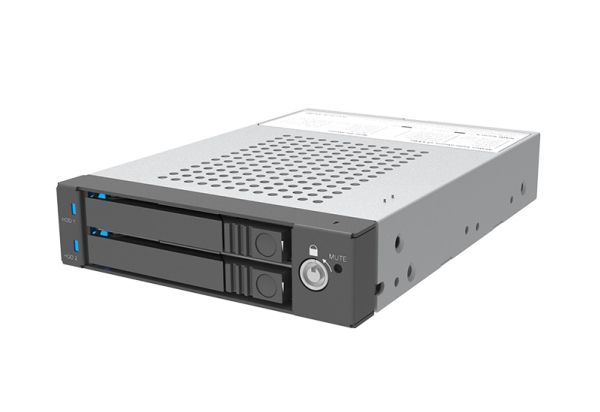

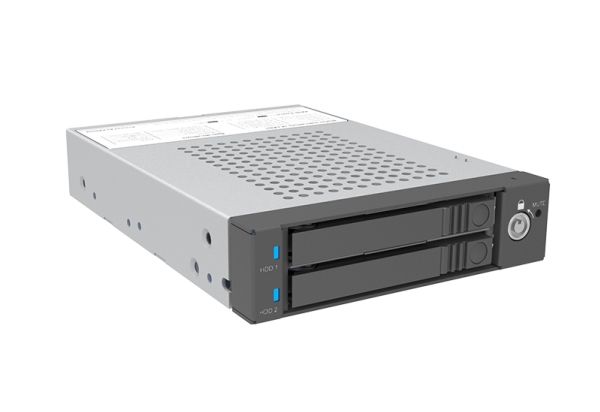

Raidon iR2775-S3, 8,89 cm (3.5"), Bærepanel, Grå, 2.5", SATA III, 9.5 mm

Easy to install it into your PC/Server

iR2775-S3 not only provides you the multiple RAID features but also gives you a simple structure for installation. You could just install it into your PC/Server easily by yourself for having so many RAID features.

The iR2775-S3 has two RAID modes, RAID 0 (capacity increased, hard disk performance improved) and RAID 1 (data security). You can easily select the modes based on the demand when installing the gaming system. If you need to emphasize the security of the operating system, you can choose to install a high-speed SSD hard disk and set it to RAID 1 mode (data security). And if you want to have the faster storage speed, you can switch the iR2775-S3 system to RAID 0 mode (capacity increased) for better performance on your gaming system.

iR2775 exact same SATA Connector Locations, Dimension, and Screw Holes as 3.5” hard disk drive

RAIDON iR2775-S3 internal RAID module supports SATA III 6.0 Gb/s host interface and SATA 15 pin power supply; the connector’s location exactly as the same as a 3.5” hard drive. Thus, it is not necessary to install any other brackets but just install the iR2775-S3 inside to existing PC and then it will be upgraded to be a PC system with a Hardware RAID storage!

High Reliability or High Performance

iR2775-S3 is equipped with 2 sophisticated RAID levels. With the understanding of the transmission performance of the iR2775-S3.

In accordance with your own needs, you can select the required hard disk application mode.

RAID 1 mode is the most secure. For fields which require high data security, it is the most appropriate storage mode.

RAID 0 mode is appealing for its transmission speeds. It can accelerate the access speed of data, but it is not secure.

Included software monitoring program to easily view hard disk status

For Windows users, a software RAIDGuide Manager monitoring program is also provided. It allows users to understand the RAID module and hard disk status more directly through the monitoring program. Even better, after setting the monitoring program, it will take the initiative to send letters to users when the hard disk fails. This instant notification allows users to be aware of the situation as soon as possible to remedy the situation faster.

Our RAID Enclosures Start Providing S.M.A.R.T Features

iR2775-S3 storage RAID enclosure product now supports the S.M.A.R.T (Self Monitoring, Analysis, and the Reporting Technology) feature. You just have to open this RAIDGuide Manager Utility, you then can enjoy using it to know the HDD quality status, and you could even to replace any HDD which is with critical quality level in advance to help an even better protection for all your data.

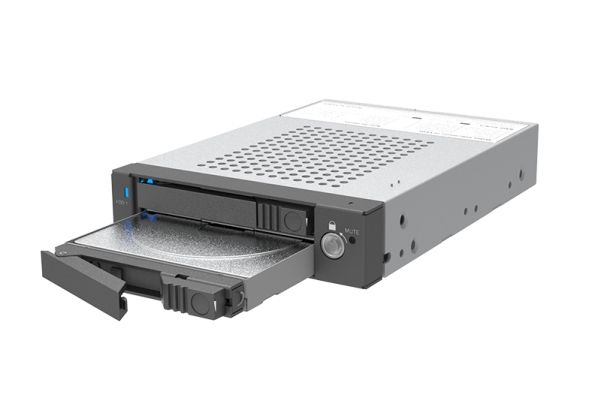

Convenient and secure extractable hard disk module

The RAIDON exclusive hard disk trays are designed with a safety lock and secure architecture to lock the hard disk. It effectively maintains sensitive data and is easy to use. If the hard disk is corrupted, users do not have to worry about data maintenance and simply need to buy the same model hard disk with the same capacity to make a replacement. It can greatly reduce the wait time for machine maintenance. Even users who do not understand computer hardware can quickly maintain and replace it.

An Excellent Ventilation design

Overheat is one of the major problems to cause system failure, and causes a huge loss at the downtime period in the 24-hour full-automation production equipment. Our iR2775-S3 has an excellent ventilation design to help dissipating the heat generated from two HDDs/SSDs efficiently and reduces the loss caused by system downtime.

iR2775-S3 is recommended being used in your CNC machinery to the huge IC production equipment.
