InLine 32316P, Gigabit Ethernet (10/100/1000), Strøm over Ethernet (PoE), Rack-montering, 1U
Varenr.: [8197380] | Producent: Inline | Model-nr.: 32316P | EAN: 4043718300686
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (4)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
3.981,00
eksklusiv MVA 3.184,80
Totalt inkl. frakt
3.981,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
PoE++ switch with 16 ports and SFP uplink for flexible power and data supply
Supply high-power devices:PoE++ up to 60 W (ports 1-4), PoE+ up to 32 W (ports 5-16), 300 W budget.
Safely bridge long distances:2x SFP for fiber uplinks at 1000 Mb/s.

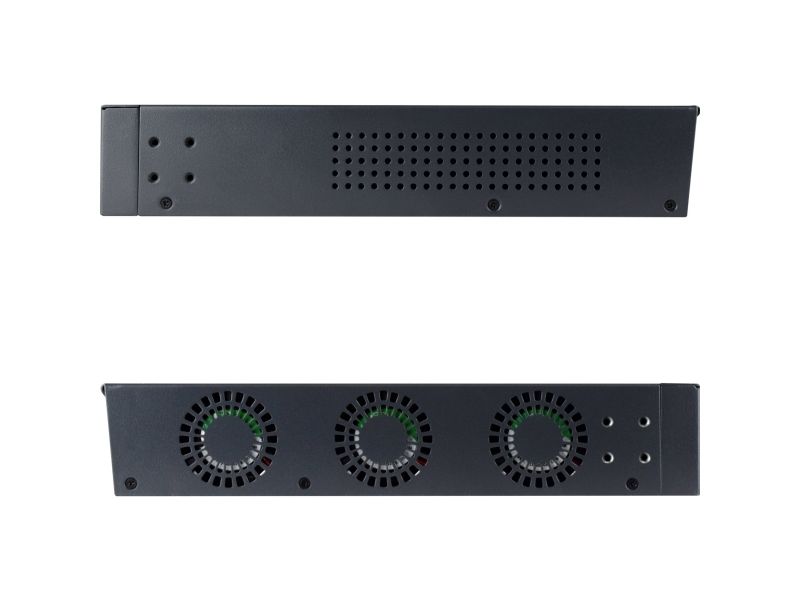

Simplify rack deployment:19 inch, 1 U, mounting brackets included; 3 fans for stable cooling.
Monitor operation and diagnostics:LCD with real-time PoE status, password-protected menu.
Protect ports and devices:Protection against overload, overvoltage, and overheating at each port; ± 6 kV surge protection.
This PoE++ Gigabit switch combines data transmission and power supply on 16 RJ45 ports with 10/100/1000 Mb/s. Four ports deliver up to 60 W, the other twelve up to 32 W; the 300 W PoE budget and the 330 W total power also cover power-hungry devices. Two SFP slots connect fiber at 1000 Mb/s and help bridge longer distances. The LCD display provides real-time PoE status information, the password-protected menu supports secure administration. Integrated protection functions increase operational reliability.
In professional IT environments, in on-site installations, and in existing infrastructures of companies and public institutions, the switch reduces the need for power outlets and simplifies placement of IP cameras (including models with heater), wireless access points, or VoIP endpoints. Features such as store-and-forward, jumbo frames, and an 8K MAC table support reliable performance; the 19 inch 1 U rack form factor facilitates integration.
Interfaces:16x RJ45 10/100/1000 Mb/s (Auto-MDI/MDI-X), 2x SFP 1000 Mb/s
PoE ports:16 (ports 1-4 PoE++, ports 5-16 PoE+)
PoE power:ports 1-4 max. 60 W, ports 5-16 max. 32 W
PoE budget:300 W
Total power:330 W
Standards:IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3bt, 802.3az
Display:LCD, real-time PoE status
Network cables:Cat.5e/6/6A/8.1 up to 100 m
1000Base-X:MMF, SMF
MAC address table:8K, automatic learning, automatic updates
Jumbo frame:9216 bytes
Packet buffer:4.1 Mbit
Forwarding mode:store-and-forward
Packet forwarding rate:26.78 million packets per second
Bandwidth:36 Gbit
Surge protection:± 6 kV
Number of fans:3
Dimensions:440 x 232 x 45 mm
Weight:approx. 3.2 kg
Input voltage:100-240 V AC, 50/60 Hz
Operating temperature:-10-60 °C
Storage temperature:-40-70 °C
Operating humidity:10-90 % non-condensing
Storage humidity:5-90 % non-condensing
Rack mounting:19 inch, 1 U, mounting brackets included
Supply high-power devices:PoE++ up to 60 W (ports 1-4), PoE+ up to 32 W (ports 5-16), 300 W budget.
Safely bridge long distances:2x SFP for fiber uplinks at 1000 Mb/s.
Simplify rack deployment:19 inch, 1 U, mounting brackets included; 3 fans for stable cooling.
Monitor operation and diagnostics:LCD with real-time PoE status, password-protected menu.
Protect ports and devices:Protection against overload, overvoltage, and overheating at each port; ± 6 kV surge protection.
This PoE++ Gigabit switch combines data transmission and power supply on 16 RJ45 ports with 10/100/1000 Mb/s. Four ports deliver up to 60 W, the other twelve up to 32 W; the 300 W PoE budget and the 330 W total power also cover power-hungry devices. Two SFP slots connect fiber at 1000 Mb/s and help bridge longer distances. The LCD display provides real-time PoE status information, the password-protected menu supports secure administration. Integrated protection functions increase operational reliability.
In professional IT environments, in on-site installations, and in existing infrastructures of companies and public institutions, the switch reduces the need for power outlets and simplifies placement of IP cameras (including models with heater), wireless access points, or VoIP endpoints. Features such as store-and-forward, jumbo frames, and an 8K MAC table support reliable performance; the 19 inch 1 U rack form factor facilitates integration.
Interfaces:16x RJ45 10/100/1000 Mb/s (Auto-MDI/MDI-X), 2x SFP 1000 Mb/s
PoE ports:16 (ports 1-4 PoE++, ports 5-16 PoE+)
PoE power:ports 1-4 max. 60 W, ports 5-16 max. 32 W
PoE budget:300 W
Total power:330 W
Standards:IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3bt, 802.3az
Display:LCD, real-time PoE status
Network cables:Cat.5e/6/6A/8.1 up to 100 m
1000Base-X:MMF, SMF
MAC address table:8K, automatic learning, automatic updates
Jumbo frame:9216 bytes
Packet buffer:4.1 Mbit
Forwarding mode:store-and-forward
Packet forwarding rate:26.78 million packets per second
Bandwidth:36 Gbit
Surge protection:± 6 kV
Number of fans:3
Dimensions:440 x 232 x 45 mm
Weight:approx. 3.2 kg
Input voltage:100-240 V AC, 50/60 Hz
Operating temperature:-10-60 °C
Storage temperature:-40-70 °C
Operating humidity:10-90 % non-condensing
Storage humidity:5-90 % non-condensing
Rack mounting:19 inch, 1 U, mounting brackets included
