Honeywell LSQ310-20
Varenr.: [7850463] | Producent: Honeywell | Model-nr.: LSQ310-20 | EAN: 2050007310846
Fjernlager
Varen er på fjernlager, leveringstiden er 6-8 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (4)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
5.112,00
eksklusiv MVA 4.089,60
Totalt inkl. frakt
5.112,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail

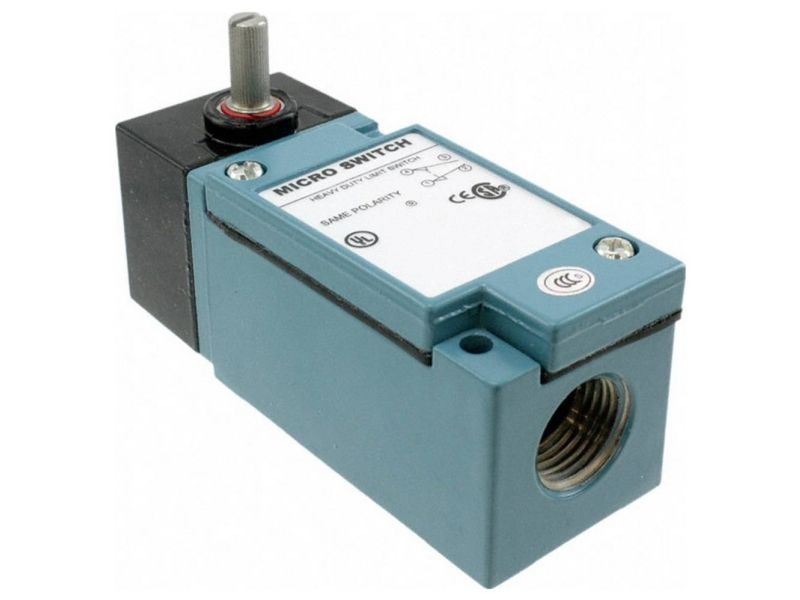

Maintained Contact, Spoke Actuator Limit Switch

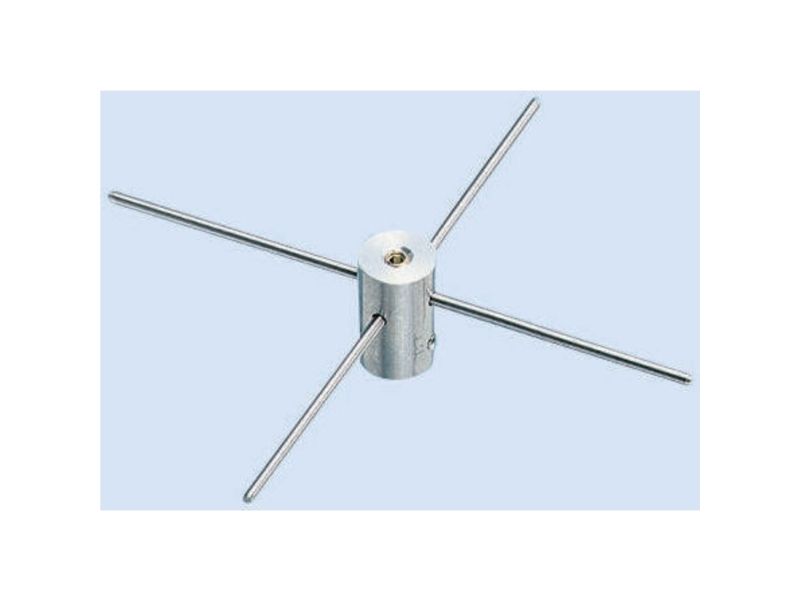

This spoke actuator switch is used to detect a transient target and remember its position.
The target passes through the spoke rotating the spoke by a quarter turn. This toggles the switch, normally a closed circuit, from ON to OFF. If another target transitions through the spoke, it will again toggle the switch this time from OFF to ON. Alternatively, the target can return back through the spoke again toggling the switch from OFF to ON. The spoke once rotated will maintain its position until it is moved to a new section - this is unlike normal limit switch actuation which normally will want to return to its rest position - with this switch there are 4 rest positions at each 90°C points in a 360°C rotation.
The tip over point is at 60°C at which point the spoke will rotate to the next segment position.
Standards
EN60947-5-1, IEC947-5-1
Approvals
UL, CSA
Approvals
UL; CSA
This spoke actuator switch is used to detect a transient target and remember its position.
The target passes through the spoke rotating the spoke by a quarter turn. This toggles the switch, normally a closed circuit, from ON to OFF. If another target transitions through the spoke, it will again toggle the switch this time from OFF to ON. Alternatively, the target can return back through the spoke again toggling the switch from OFF to ON. The spoke once rotated will maintain its position until it is moved to a new section - this is unlike normal limit switch actuation which normally will want to return to its rest position - with this switch there are 4 rest positions at each 90°C points in a 360°C rotation.
The tip over point is at 60°C at which point the spoke will rotate to the next segment position.
Standards
EN60947-5-1, IEC947-5-1
Approvals
UL, CSA
Approvals
UL; CSA
