EXSYS EX-1526HMVS, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Svart, Metall

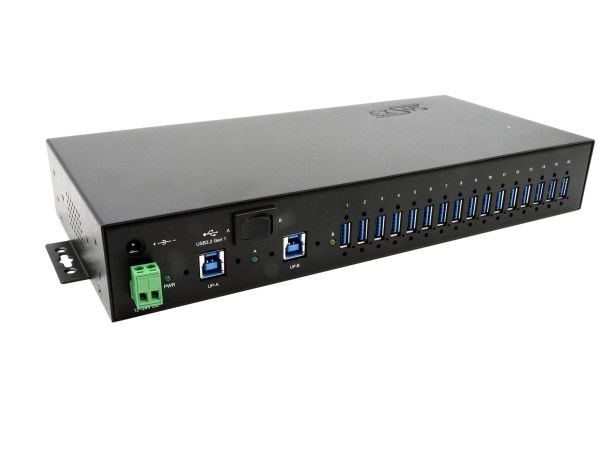

The EX-1526HMVS is a managed USB 3.2 Gen1 (or commonly referred to as USB 3.0 or 3.1 Gen1) hub designed to provide extensive and unique features for industrial applications. It offers you an instant expansion of sixteen USB 3.2 Gen1 ports to bolt on and is compatible with all existing USB3.1, USB 3.0, USB 2.0 and USB 1.1 devices. The EX-1526HMVS can be manually switched between two computers.

The EX-1526HMVS supports USB battery charging specification v1.2 (SDP, CDP, DCP) as well as some manufacturer specific charging modes such as Apple 2.4A and Samsung.
By powering from the DC jack or terminal block, 1.5A can be provided on each port or 3A on eight ports. It can be used in automation, industrial and office applications. Thanks to its special housing, EX-1526HMVS can be screwed to the wall, under a table or in a 19" cabinet. Optionally the plug-in power supply EX-6984 with 24V/6.6A can be ordered.

Managing Software
The EX-1526HMVS is supplied with the managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire Hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, intel x86 and ARM based Linux. It contains several management software utilities, for the different platforms like GUI software (Graphical User Interface) or also the console command line for all common Microsoft Windows systems. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++,VB, Python or even PHP server scripting language.
