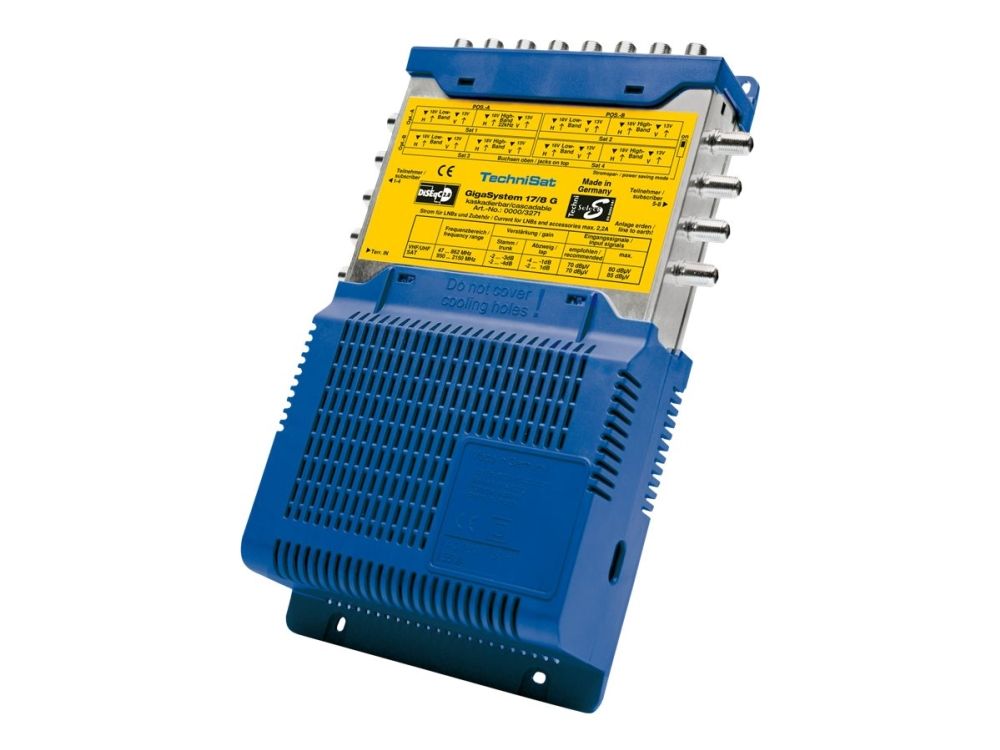

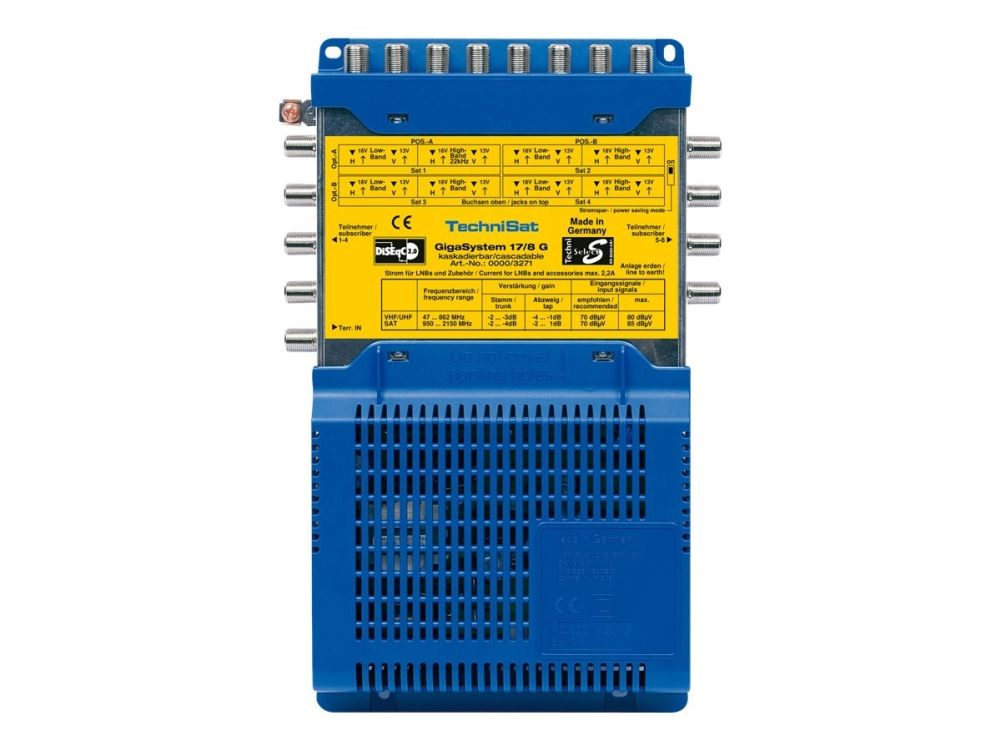

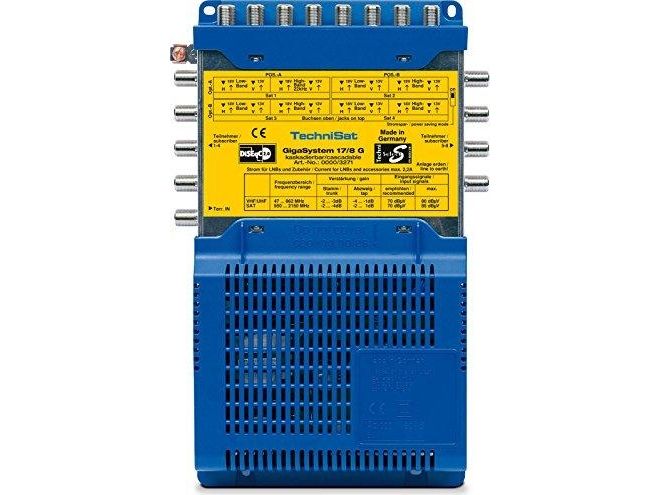

TechniSat GigaSystem 17/8 G - Multisvitsj for satellittsignal for antenne - blå/gul
Varenr.: [7421611] | Producent: TechniSat | Model-nr.: 0000/3271 | EAN: 4019588032712
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Fri frakt Instabox - Velg din nærmeste pakkeboks
Fraktprisen er basert på levering til dette postnummer: - Skift postnummer
Oppgi postnummer for levering.
Se alle alternativer
| Instabox - Velg din nærmeste pakkeboks | Gratis |
| Bring - Hentes på Posten | Gratis |
| PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden | 159,00 |
| Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer) | 224,00 |
NOK
3.051,00
eksklusiv MVA 2.440,80
Totalt inkl. frakt
3.051,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
The GigaSystem 17/8 is designed to distribute signals from as many as four satellite positions.
The basic unit 17/8 G comes equipped with a total of 17 inputs. Sixteen of these are satellite IF inputs, which can accommodate the signals from up to four Quattro LNB’s. Each Quattro LNB has four outputs, each of which, depending on the polarisation plane, can supply a specific frequency range - a so-called satellite block. The multi-switch provides an input connection for each of these signals. A total of 16 inputs can be allocated to satellite signals. The seventeenth input is reserved for feeding in terrestrial antenna signals.
As is the case with all high-quality multi-switches, the incoming signals are processed discretely, and are amplified with a so-called slope. The amplification, or gain, is greater, the higher the frequency of the signal is. This compensates for the higher damping effect on higher frequencies caused by cables.
The signals are distributed to as many as eight participants.
Power supply
The basic unit features a high-quality efficient mains adapter, that is capable of supplying current not only to the basic unit, but also up to four cascades, including all LNB’s connected to the system.
Expandability
The GigaSystem 17/8 can be further expanded using suitable components, so that even large-scale networks involving hundreds of participants can be implemented.
The basic unit 17/8 G comes equipped with a total of 17 inputs. Sixteen of these are satellite IF inputs, which can accommodate the signals from up to four Quattro LNB’s. Each Quattro LNB has four outputs, each of which, depending on the polarisation plane, can supply a specific frequency range - a so-called satellite block. The multi-switch provides an input connection for each of these signals. A total of 16 inputs can be allocated to satellite signals. The seventeenth input is reserved for feeding in terrestrial antenna signals.
As is the case with all high-quality multi-switches, the incoming signals are processed discretely, and are amplified with a so-called slope. The amplification, or gain, is greater, the higher the frequency of the signal is. This compensates for the higher damping effect on higher frequencies caused by cables.
The signals are distributed to as many as eight participants.
Power supply
The basic unit features a high-quality efficient mains adapter, that is capable of supplying current not only to the basic unit, but also up to four cascades, including all LNB’s connected to the system.
Expandability
The GigaSystem 17/8 can be further expanded using suitable components, so that even large-scale networks involving hundreds of participants can be implemented.
