Kramer Electronics RC-63DLN, Digitalt, Inngang/Utgang, Hvit, CE, UL, RoHs, WEEE, 100 mA, 12 V

6–button KNET™ Control Keypad with Knob with Displays (EU, UK, US)

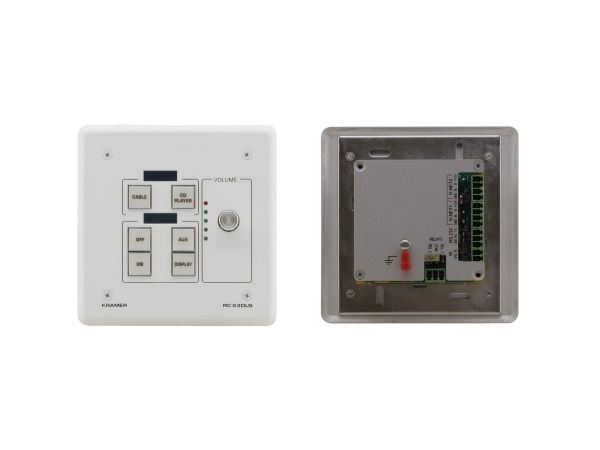

The RC-63DLN is a 6-button control keypad with knob and LCD displays. Connected over KNET™ to master room controller and auxiliary keypads for remote keypad control, it can serve either as a standalone room controller or part of a multi-unit KNET™ system. The RC-63DLN is ideal for classrooms and meeting rooms, for convenient control of their multimedia devices and other room facilities such as screens and shades.

- Back Lit & Label Capable Buttons — 6 RGB–color, tactile feedback, backlit buttons. Buttons are grouped in 2 groups, 4 buttons in ‘SOURCES’ group, and 2 buttons in ‘DISPLAY’ group.
- Custom Labeled, Removable Button Caps.
- Volume Control Knob with LEDs — Bi–directional rotary dialed digital knob for volume control, with 5 LED bar for visual volume level feedback.

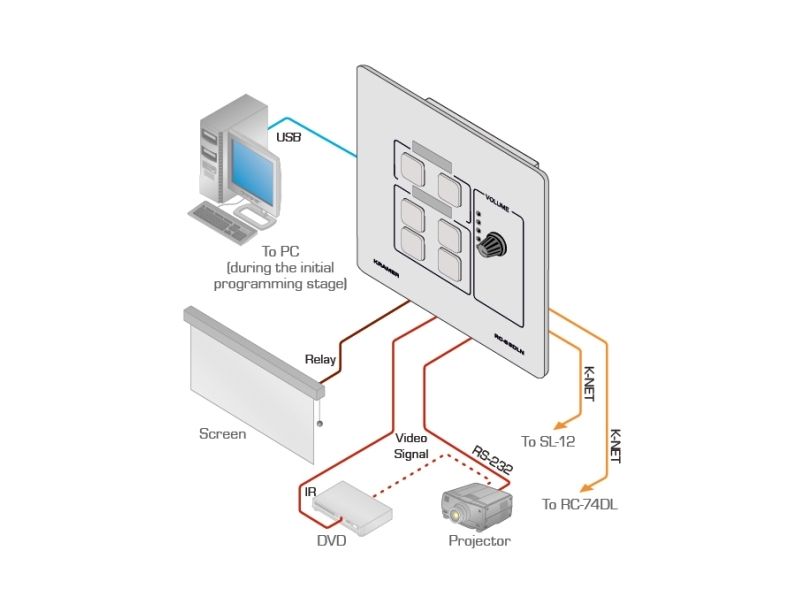

- 2 K–NET™ Connectors — Connects to master room controller, and auxiliary keypads for remote keypad control.
- K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control communication information.
- RS–232 Control Port — Controls a device via serial control protocols.
- IR Emitter Control Port — Controls a device via IR control protocols.
- Relay Control Port — Controls a device via relay contact closure.
- IR Sensor Port — Learns commands from IR remotes.
- Program Control — Program configuration with Kramer K–Config software.
- Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.
- Mini USB Port — To upload configuration files, set the K–NET™ ID number, and power the device during configuration.
- Mounting — In–wall, in standard 2 gang EU, UK, and US wall junction boxes.
- Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.
