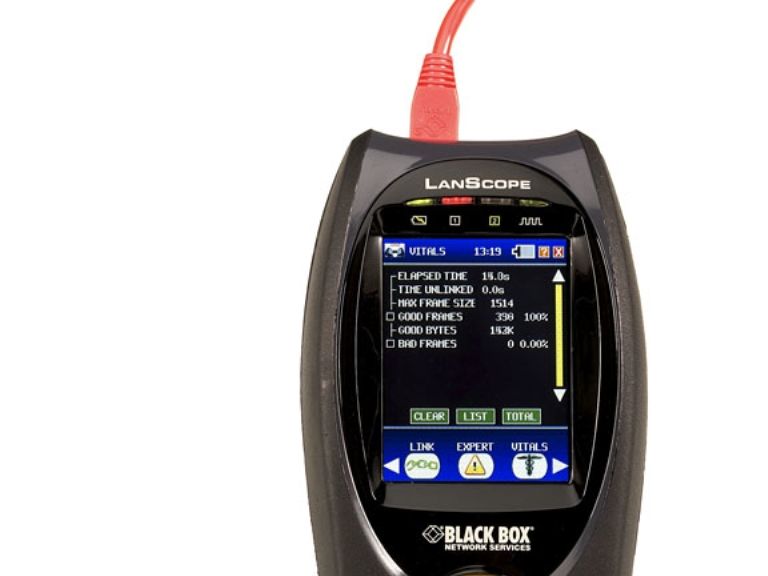

Black Box LANSCOPE, 610 g, 100 x 165 x 71 mm, 0 - 50 °C, -10 - 55 °C

- Analyze and troubleshoot networks from the cabling to the packet.
- Enables LAN installers, technicians, managers, and service providers to quickly maintain and optimize 10/100/1000BASE-T networks with a single tester.
- Features include cable testing, link detection, PING and trace, packet monitoring, traffic generation, VoIP, e-mail, inline Poe tests, and more.

Further Details
- Provides complete inline packet inspection.
- Detailed packet monitoring, filtering, and capture help identify and solve complex problems.
- Flexible traffic generation and structured stress tests demonstrate network performance under varying load conditions.
- VoIP, e-mail, and inline PoE tests provide statistics and measurements required to ensure proper network performance.
- Captures up to 10,000 packets for analysis or download.
- Measures PoE voltage and power to determine switch port power allocation.
- Processes VoIP traffic to determine call statistics and quality.
- Qualifies network segments with stress test prior to activating.
- Automatically identifies standard link, frame, and traffic problems.
- Identifies connected network devices by type, IP address, or MAC address.
- Tests cables for opens, shorts, reversed pairs, split pairs, and length.
- Color LCD touch screen display.

Make the Lanscope Network Analyzer an essential part of your tool kit. Use it for installing, monitoring, maintaining, upgrading, and troubleshooting any network. With this one tool, you have one of the most complete suites of testing and analysis functions available at a very affordable price.

Use the Inline mode to non-intrusively monitor network traffic (10/100/1000BASE-T) to identify protocols, port usage, VoIP statistics, and network utilization. The Lanscope can capture and store up to 10,000 packets with user-defined filters for detailed analysis in the field. Or download test results over the network or to a flash drive.

The analyzer features two RJ-45 ports, which you can use for tests such as PING, Link, Trace, DHCP, and Discovery to quickly identify network problems. The Lanscope can also generate up to 100% traffic loading with control of packet rate and size to demonstrate network performance at various traffic levels.

You can perform a stress test that generates traffic and measures performance in accordance with RFC 2544. Run the test using the two independent ports on a single unit or run it with a second unit located remotely on the network.

PoE tests include voltage and inline current measurement to determine the actual power used by a device.

Lastly, use the Lanscope to test cables for shorts, opens, split pairs, and reversed pairs; measure cable length; and to generate tones for cable tracing.
