Black Box AlertWerks EME112A-60-R2, 100 Mbit/s, 100-240 V, 50 - 60 Hz, 457 mm, 127 mm, 42 mm

AlertWerks ServSensor Contact - 8-Port, 60 Dry Contacts with Temperature Sensor
Safeguard equipment and devices that use dry contact outputs to send alarm signals.

EME112A-60-R2 Features

- Functions as a central hub for your AlertWerks Intelligent Sensors.
- Features 8 autosensing RJ-45 ports for connecting AlertWerks Intelligent Sensors and 60 dry contacts to support third-party sensors.
- Includes a temperature sensor.

- Adaptable to a wide range of devices, such as UPSs, other remote monitoring systems, and building management systems.
- Supports customized sensors for conditions like motion, gas, and sound.

The brains of your environmental monitoring system

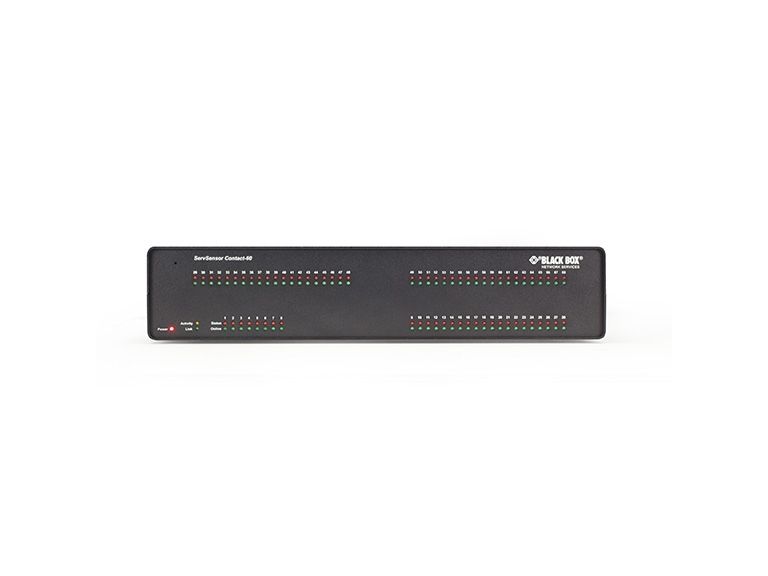

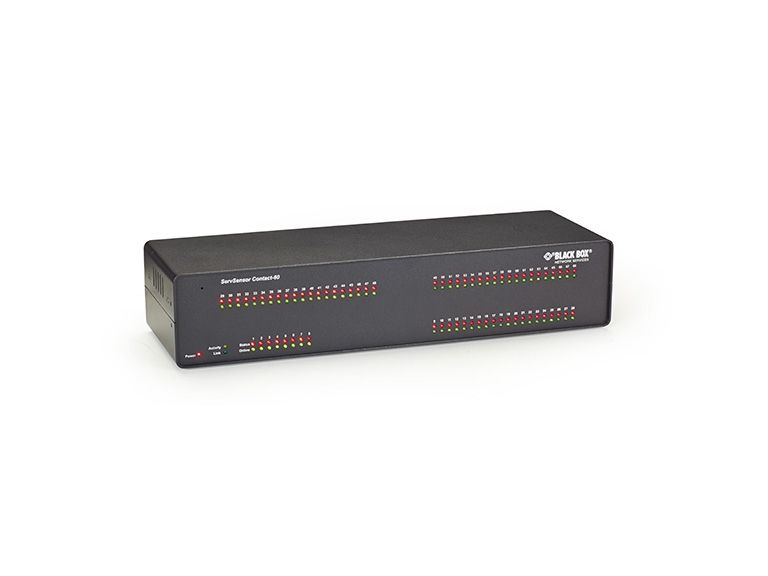

The AlertWerks ServSensor Contact is the central hub of the AlertWerks environmental monitoring system. Connect it to your network, attach AlertWerks Intelligent Sensors and dry-contact sensors, and you're ready to remotely view the status of your data centers and other facilities. Check for temperature, humidity, and liquids. Know when server cabinet doors are open or closed and whether the cabinet is overheating. Use it for remote monitoring and management of a wide range of devices such as HVAC systems, security equipment, UPSs, generators, and industrial equipment.

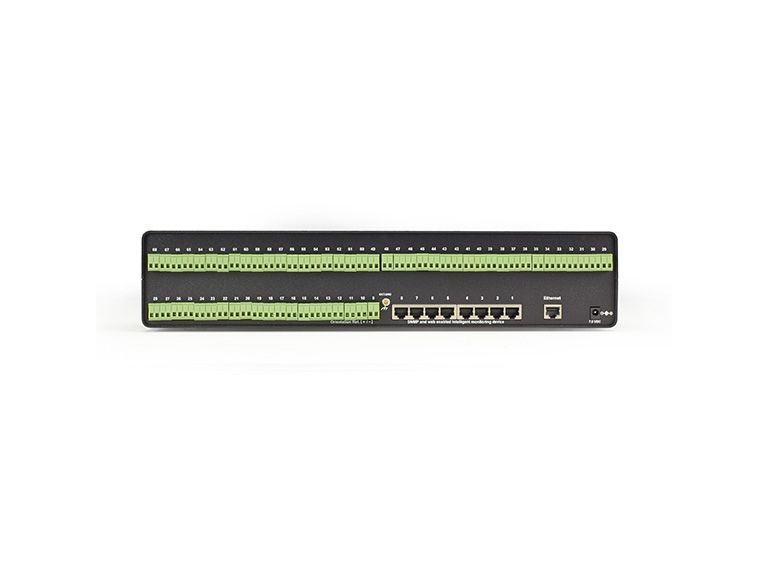

Use the AlertWerks ServSensor Contact with equipment and devices that use dry contact outputs to send alarm signals. This hub comes with eight autosensing RJ-45 ports for connecting any of the AlertWerks Intelligent Sensors (see Related Items) plus 60 additional 2-wire, dry-contact ports, and a temperature sensor. Dry-contact ports enable you to make your own dry-contact cables quickly and easily. A ServSensor Contact with 20 dry-contact ports and a temperature sensor (EME112A-20) is also available.

The ServSensor Contact is rackmountable on standard 19" rails and includes rackmount ears.

A clever hub
The ServSensor Contact is smart. Its embedded Web server enables you to use a standard Web browser to view sensor status over any IP network—even the Internet. Check out the status of your data center from your office, from home, or from the road.

It's fully SNMP manageable, so you can integrate it easily into any SNMP-managed network and monitor it through standard SNMP software such as HP OpenView.

The built-in database maintains a time-stamped log of all events, so you can go back to see what happened and when it happened. The integrated data collection and graphing package is especially useful in spotting trends in security, detection of AC power line voltage, measurement of DC voltage, and control relays, and for providing historical information for analysis.

Active alarming
In addition to enabling you to passively monitor sensors, the AlertWerks ServSensor Contact actively alerts you when sensors exceed limits you determine. It can send alerts via SNMP or by e-mail.

Nice and easy
The ServSensor Contact installs in minutes. Simply assign an IP address and connect to the embedded Web server. Plug in any of our Intelligent Sensors or dry-contact sensors and the ServSensor's autosensing feature will recognize the type and automatically configure it.

Just call to get started
For help planning your complete AlertWerks environmental monitoring system, call our FREE Tech Support. Our experts can help you decide how many hubs and sensors you need to meet your monitoring needs.
NOTE: This product is also available in a PoE version. For details, contact our FREE Tech Support.
