Kramer Electronics FC-18, Sort, Kraft indikator, Status, 5 V, 5 V, 0,58 A, 120 mm

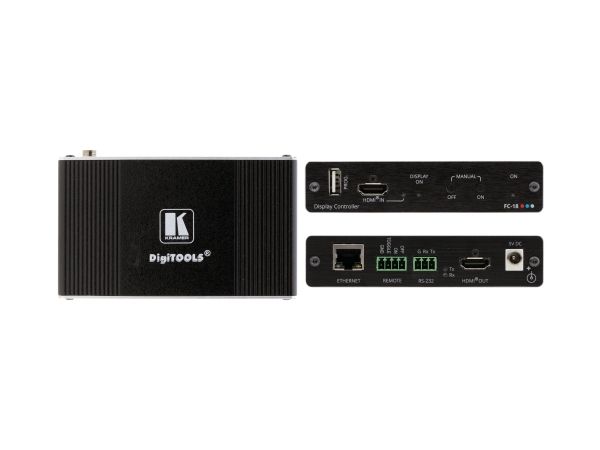

FC-18 is a display ON/OFF controller for 4K@60Hz (4:4:4) HDR HDMI signals. It accepts and outputs an HDMI signal after reclocking and equalizing. On detection of the onset of an input signal FC-18 sends an ON command to the display or projector and on detection of the loss of the input signal FC-18 sends an OFF command. FC-18 can also be used to control a display device manually via front panel buttons, Ethernet or contact closure switches.

- Save on Power Costs — Shut down display devices automatically when not in use.
- Facilitate Meeting Setups — Just plug in the AV source and the display screen or projector automatically turn on. No more searching for the power button.
- High–Performance HDMI Acceptor — Supports 4K@60Hz (4:4:4) HDR10, HDCP 2.2/1.4 signals at 18G (6G per channel) data rate, CEC (by–pass), Dolby Vision (by–pass) as specified in HDMI 2.0.
- Variety of Automatic Control Formats — Commands are sent to the display device via CEC, RS–232, or Ethernet.
- Variety of Manual Control Formats — Manually turn the display device ON and OFF via front panel button and RS–232/CEC commands, Ethernet, contact closure switches.
- Data Tunneling — Supports data tunneling between the RS–232 port and the Ethernet ports.
- HDCP Compliance — HDCP 1.4 and 2.2.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
- Selectable EDID Options — Default (internal), external (sink) or user–defined.
- Firmware Upgrading via USB port.
- Easy Installation — Compact DigiTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
