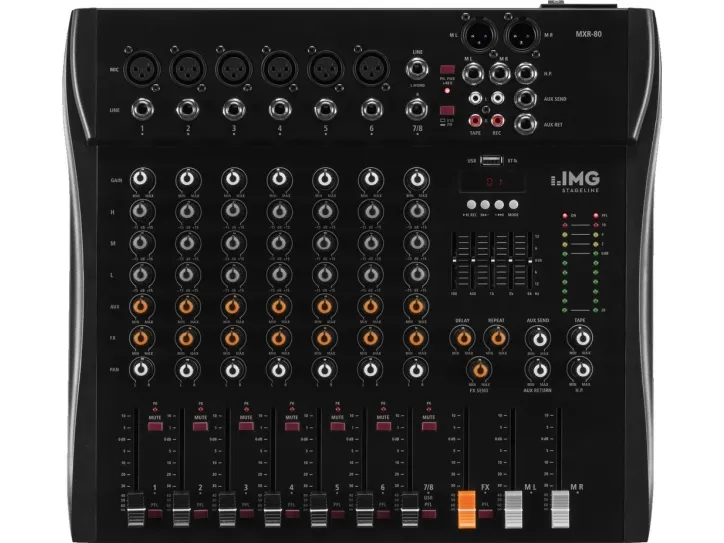

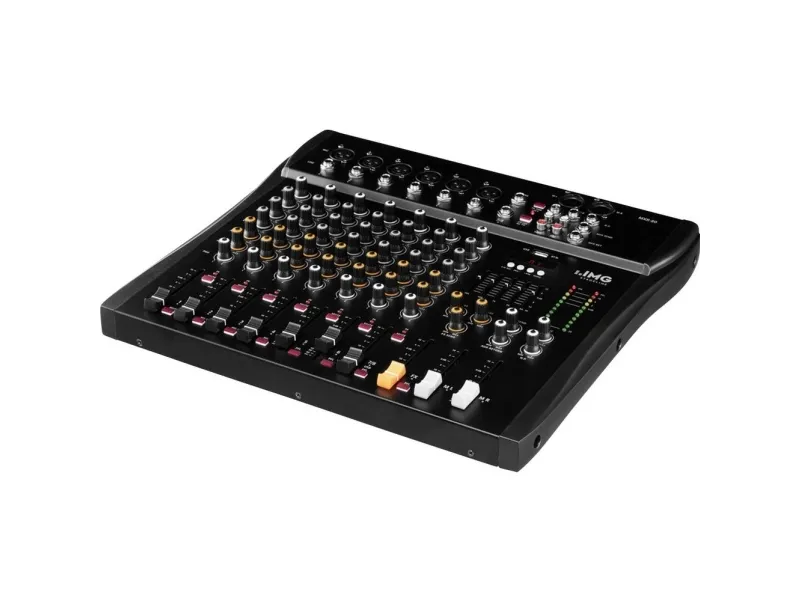

MXR-80 8-channel audio mixer

8-channel audio mixer,;with integrated MP3 player and Bluetooth receiver.;#Integrated USB audio interface (will be identified and addressed as an external sound card);#Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC;#6 mono input channels with gain control, 3-way equalizer and pan pot;#1 stereo input channel with 3-way equalizer and balance control;#MP3 player;#USB port;#Bluetooth receiver;#DSP delay, adjustable;#Adjustable aux return input and FX send output;#Tape record/play connections;#5-band stereo graphic equalizer;#+48 V phantom power, can be activated as required;#Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output;#Stereo LED level display;;Manufacturer information:;MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
[email protected];Safety Notes and Warning Messages;The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
