Lindy 38350, AV-matrisevelger, 3840 x 2160 piksler, 18 Gbit/s, Sort, Metall, CE, FCC, REACH

Provides advanced matrix switching capabilities in a flexible, 12 slot modular matrix that can be configured for use in a wide variety of combinations_x000D_
Modular HDMI & HDBaseT input and output boards with audio embedding & de-embedding (sold separately)_x000D_
HDMI 18G support, for resolutions up to 4K@60Hz 4:4:4 and 4K@60Hz 4:2:0 over HDBaseT_x000D_
Instant seamless switching with less than 0.1ms downtime_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 12 Slot Seamless Modular Matrix is a powerful AV device that creates flexible, centralised installations in a variety of environments. With fully customisable configurations of HDMI and HDBaseT boards possible, from 1x11, 6x6, 8x4 and more, this solution can be tailored to meet the requirements of any installation within education, hospitality, corporate or government sectors._x000D_
_x000D_
Supports resolutions up to 4K@60Hz 4:4:4 8bit over HDMI for exceptional picture quality and clarity. This matrix is perfect for creating visually stunning digital signage in retail or transport hubs, or for multi-display installations in sports bars and clubs. Each board also features audio embedding or de-embedding connections, depending on the board used, for connecting external audio source devices, or separate speakers and amplifiers._x000D_
_x000D_
HDBaseT boards can be installed as an input for control and de-centralising source devices, or as an output for extending the matrixes’ 4K@60Hz 4:2:0 signals up to 100m over Cat.X cable when combined with other Lindy HDBaseT devices._x000D_
_x000D_
The matrix also provides professional, easy-to-use control options for seamless switching between connections in under 0.1ms, ensuring there is no noticeable interruption of content for the viewer. This is ideal in mission critical setups where uninterrupted content delivery and switching is crucial, or in hospitality where sports fans are watching multiple games at once and don’t want to miss a second of the action. The matrix contains high-performance fans to keep it cool even when installed alongside other AV equipment, while keeping a low noise level of 26.3dB._x000D_
_x000D_

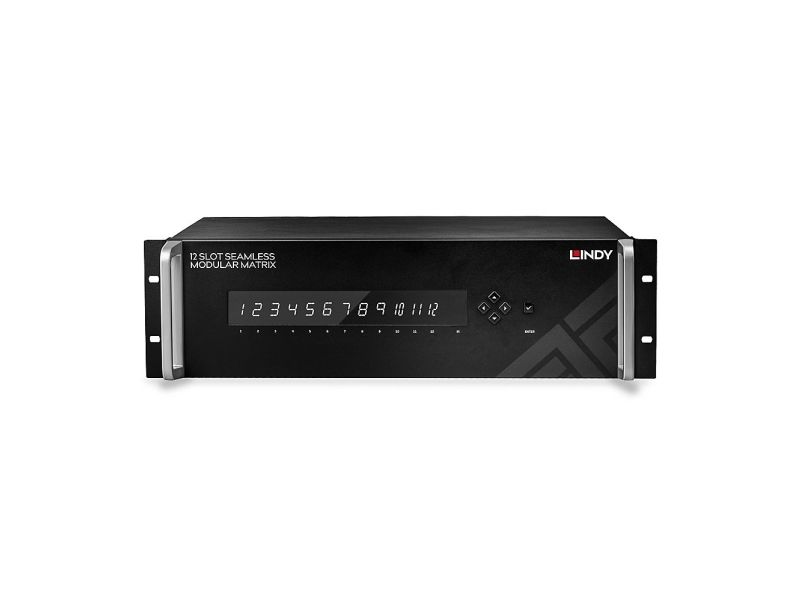

IR and RS-232 provide bi-directional control at the location of the matrix, or remotely over HDBaseT for smooth integration into pre-installed control systems. The built-in Web-Gui allows for simple control over matrix switching, as well as resolution scaling, audio settings or the matrixes’ EDID function. Push buttons and an LCD display on the front panel also provide simple manual control. Professional EDID management via the Web-Gui or the dipswitch also ensures full compatibility with connected displays._x000D_
_x000D_

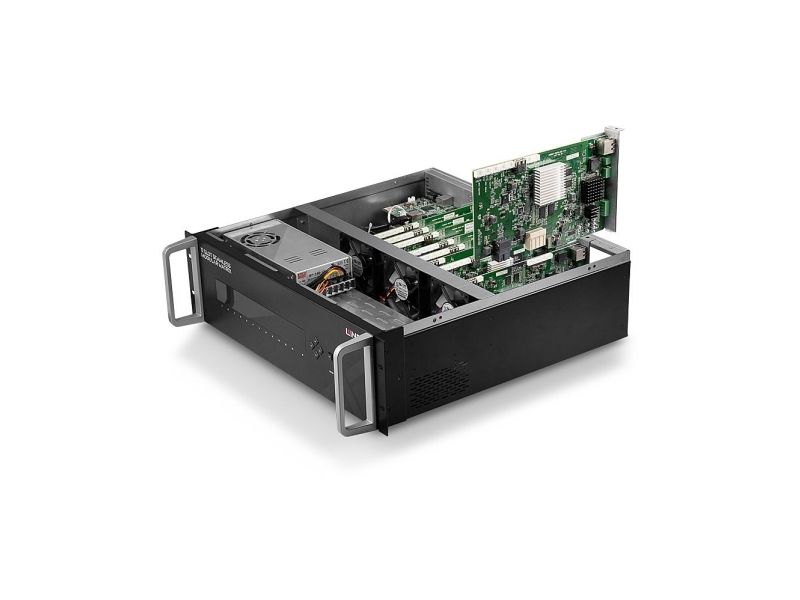

This is the chassis only; the input and output modules must be purchased separately. These can be customised to suit the installation requirements._x000D_
_x000D_
If desired, Lindy can pre-install the required modular boards that have been purchased, providing a quick and simple installation for the user once the matrix has been received._x000D_
_x000D_
No. 38351 – Single Port HDMI 18G Input Board_x000D_
_x000D_
Adds a single HDMI input connection to the 12-slot modular matrix chassis (38350)_x000D_
Develop customised 12 slot configurations to suit any installation_x000D_
Supports 18G resolutions up to 4k@60Hz 4:4:4 8bit_x000D_
Analogue audio embedding_x000D_
2 year warranty_x000D_
_x000D_
No. 38352 – Single Port HDMI 18G Output Board_x000D_
_x000D_
Adds a single HDMI output connection to the 12-slot modular matrix chassis (38350)_x000D_
Develop customised 12 slot configurations to suit any installation_x000D_
Supports 18G resolutions up to 4k@60Hz 4:4:4 8bit_x000D_
Digital & Analogue audio de-embedding_x000D_
2 year warranty_x000D_
_x000D_
No. 38353 – Single Port HDBaseT Input Board_x000D_
_x000D_
Adds a single HDBaseT input connection to the 12-slot modular matrix chassis (38350)_x000D_
Develop customised 12 slot configurations to suit any installation_x000D_
Extends 4K@60Hz 4:2:0 resolutions, Bi-directional RS-232 & IR Control up to 100m over Cat.X cable_x000D_
Analogue audio embedding_x000D_
2 year warranty_x000D_
_x000D_
No. 38354 – Single Port HDBaseT Output Board_x000D_
_x000D_
Adds a single HDBaseT output connection to the 12-slot modular matrix chassis (38350)_x000D_
Develop customised 12 slot configurations to suit any installation_x000D_
Extends 4K@60Hz 4:2:0 resolutions, Bi-directional RS-232 & IR Control up to 100m over Cat.X cable_x000D_
Digital & Analogue audio de-embedding_x000D_
2 year warranty_x000D_
