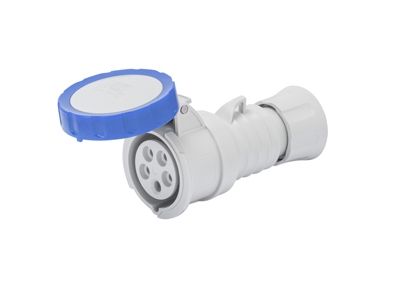

IEC 309 HP: range of plugs and socket-outlets complying with the safety requisites defined by the international Standards IEC 60309-1 and IEC 60309-2 and assimilated at European level as EN 60309-1 and EN 60309-2. This range expands GEWISS's assortment from 16A to 125A straight plugs, straight connectors and 10° flush-mounting socket-outlets with IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection to ensure full protection for all applications. The technopolymers and thickness used for the parts made of insulating material guarantee an elevated degree of mechanical and chemical agent resistance. All the sleeves and pins of the IEC 309 HP socket-outlets and plugs are surface-treated with nickel-plating to ensure full protection against corrosion, oxidation and abrasion. All the external metallic elements of the IEC 309 HP plugs and socket-outlets are made of stainless steel (the threaded metallic inserts for the body-grip coupling of the 63-125A versions are made of brass).
Strøm
16 A
Antall poler
2P+E
Stikkontakter, antall
1
Spenning
200 - 250 V
AC-inngangsfrekvens
50 - 60 Hz
Produktfarge
Blå, Hvit
Sertifisering
CE, ENEC 03, IMQ
Internasjonal beskyttelses (IP)-kode
IP66
Bryteevne
20 A
Isolasjonsmotstand
10 MO
Lengde
14,8 cm
Utvendig diameter
7,2 cm
Driftstemperatur (T-T)
25 - 40 °C
Produktet har følgende varenummer i vårt system:
EAN:
8011564798465
SKU:
GW62026H
