80 PLUS Bronze certified non-modular PSU with Hydraulic Bearing fan.

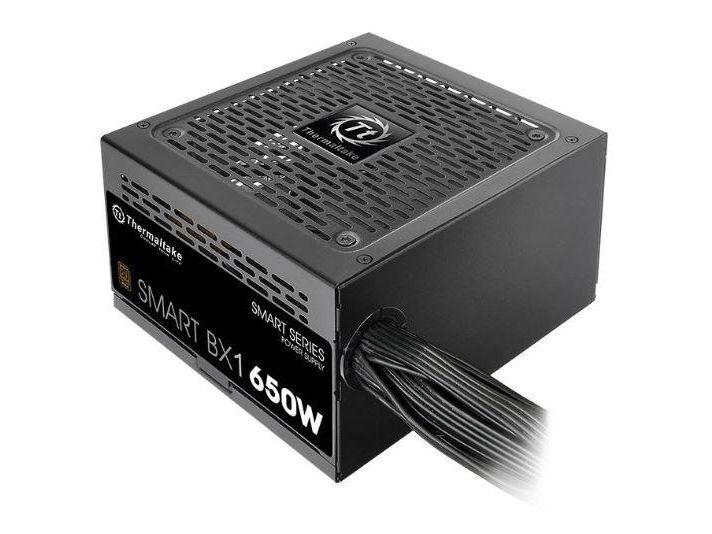

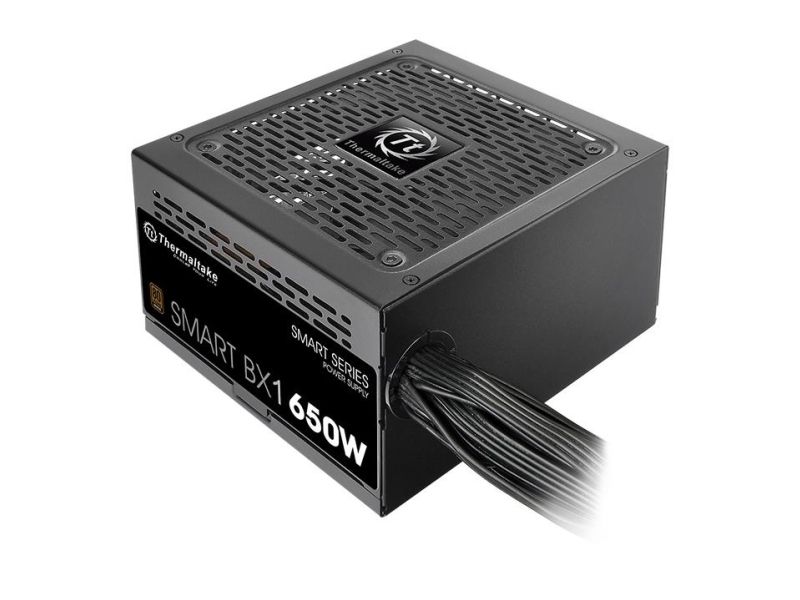

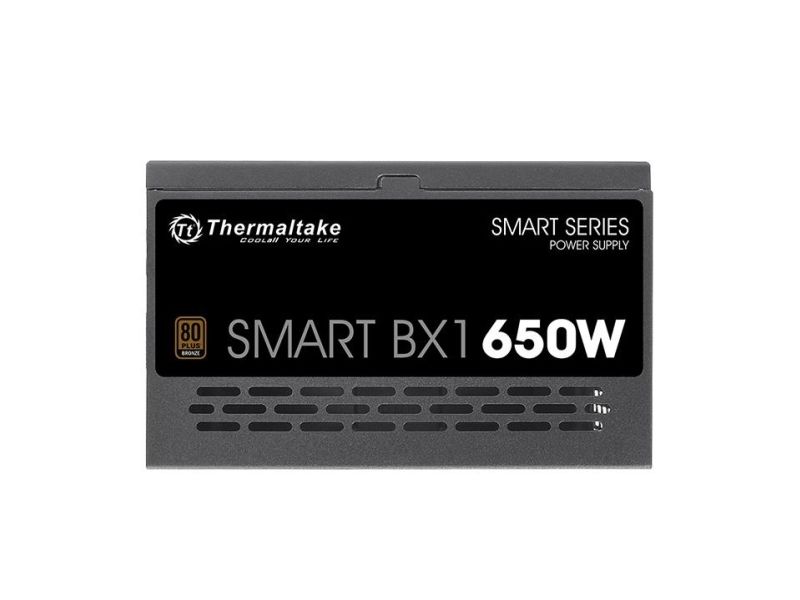

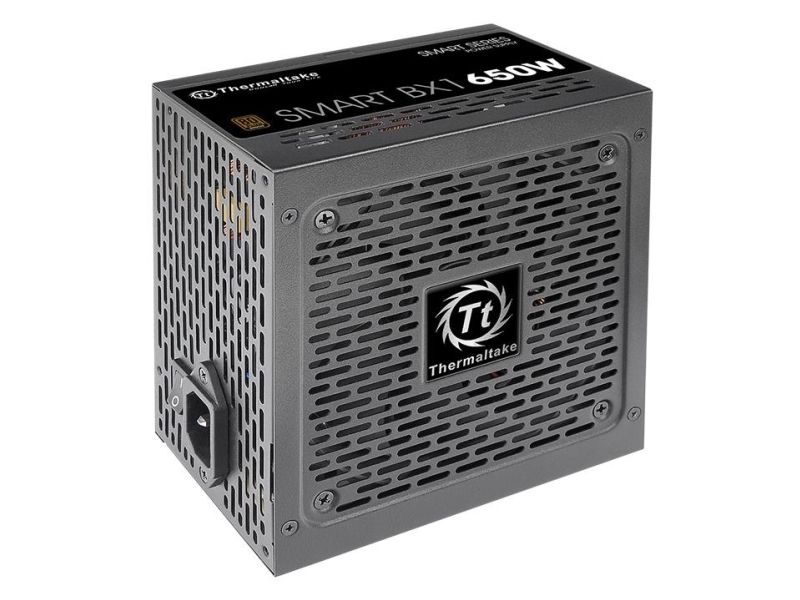

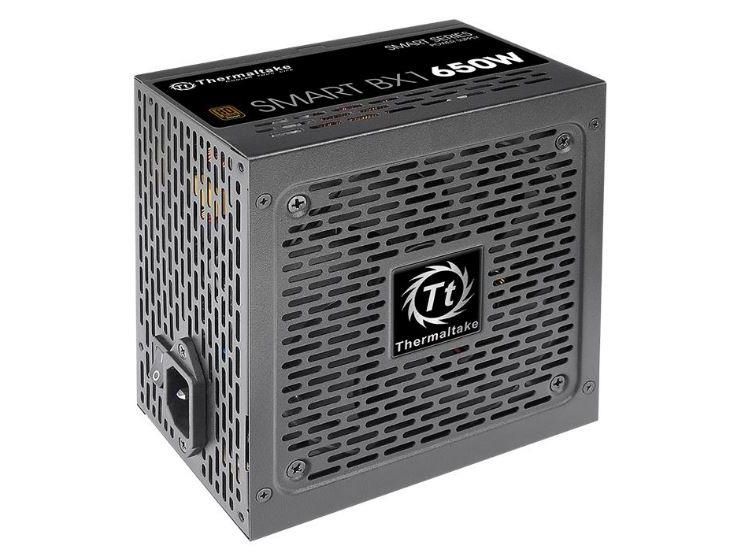

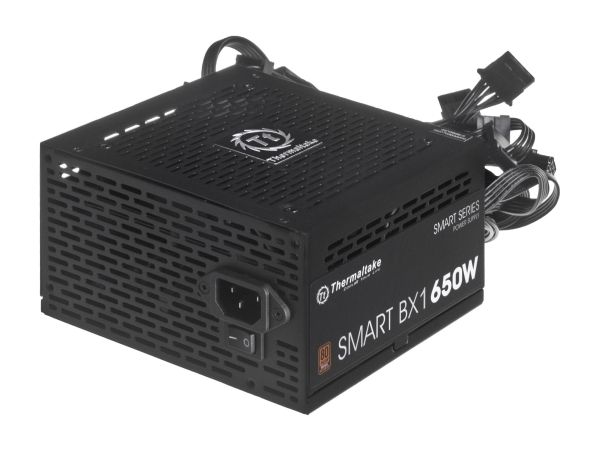

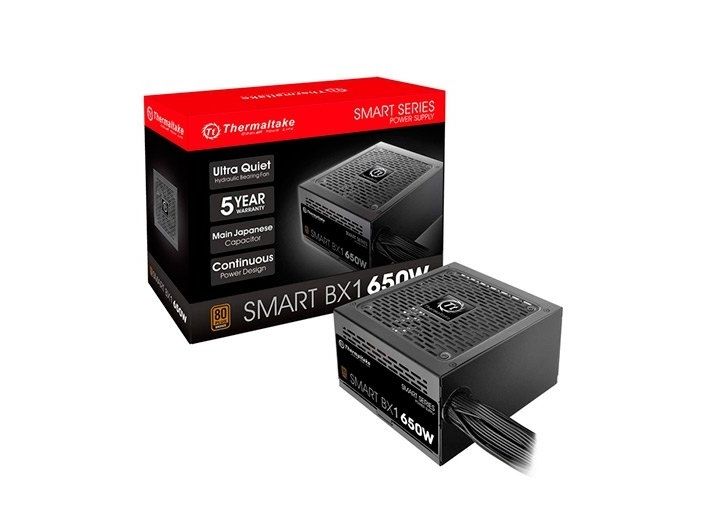

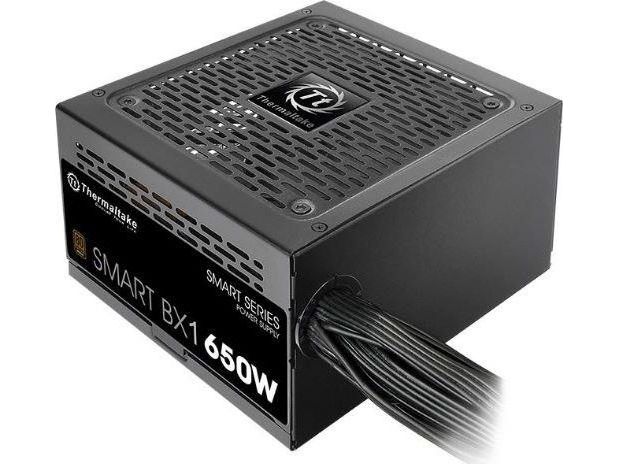

Smart BX1 650W Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

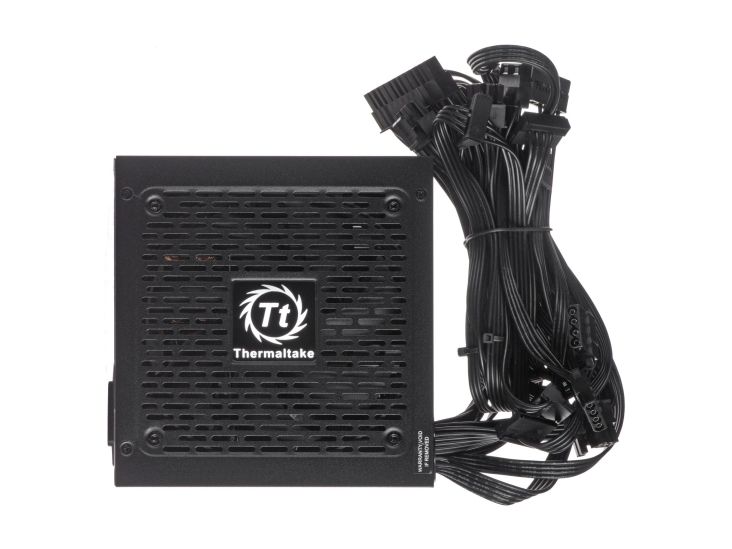

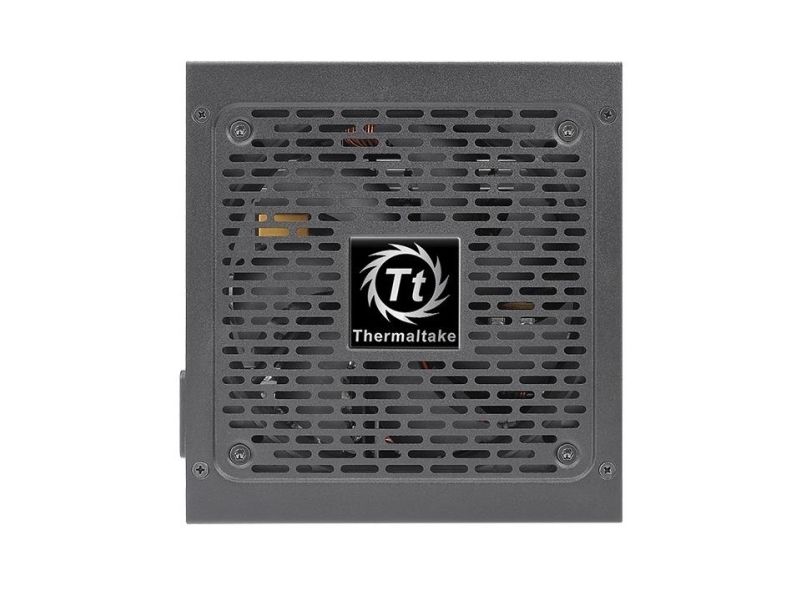

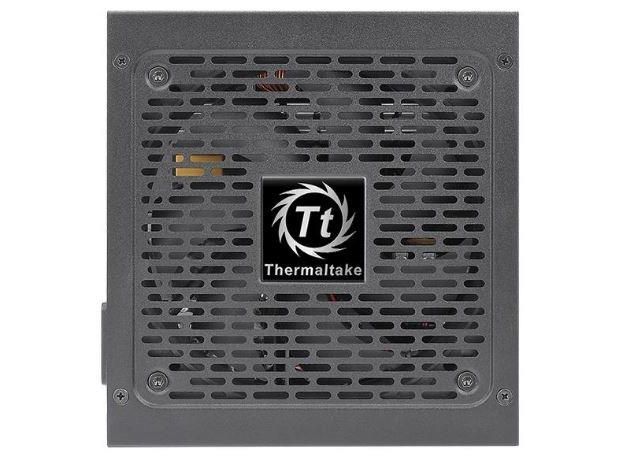

Ultra Quiet 120mm Hydraulic Bearing Fan Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Low Ripple Noise All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.

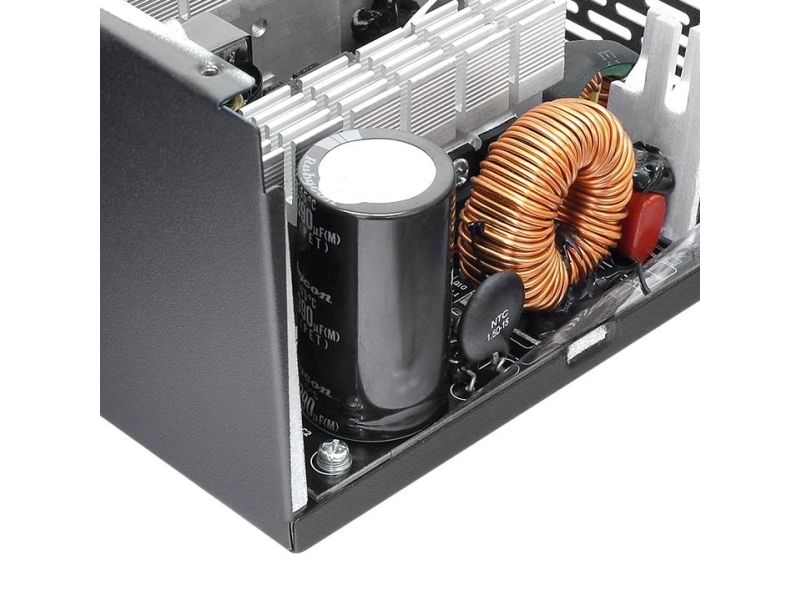

Premium Japanese Main Capacitor Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components.

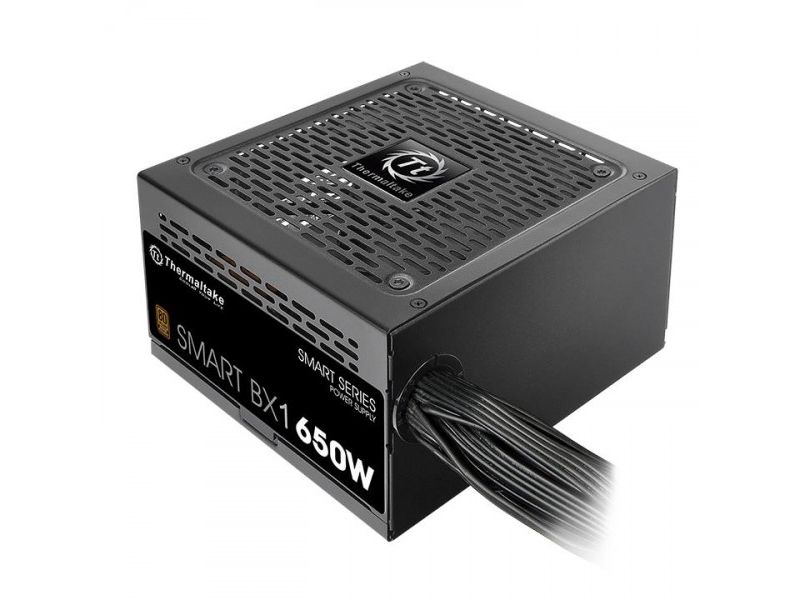

Multiple Connectors Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages
80 PLUS Gold Certified and Intel C6/C7 States Ready Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Total strøm
650 W
AC-inngangsspenning
100 - 240 V
Toppeffekt
80 W
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
12 A
Power Factor Correction (PFC) type
Aktiv

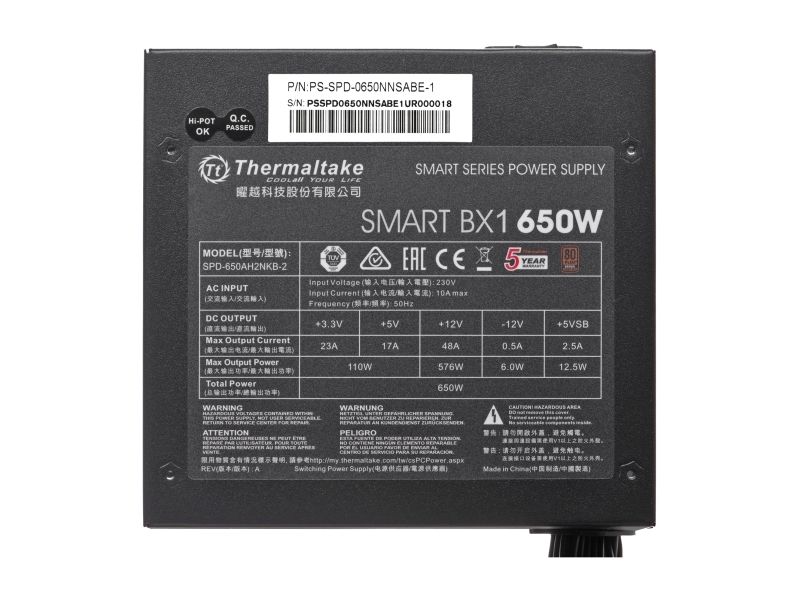

Kombinert strøm (+3.3V)
110 W
Kombinert strøm (+12V)
576 W
Kombinert strøm (+5V)
110 W
Kombinert strøm (-12V)
6 W
Kombinert strøm (+5Vsb)
12,5 W
Max output current (+3.3V)
23 A
Maksimal utgangsstrøm (+12V)
48 A
Max output current (+5V)
17 A
Max output current (-12V)
0,5 A
Max output current (+5Vsb)
2,5 A
Strømkontakt for hovedkort
24-pin ATX
Perifere (Molex) strømkontakter (4-pin)
4
Hovedkort strømkabellengde
60 cm
Antall SATA-strømtilkoblinger
6
SATA kraftledning lengde
150,500 mm
Peripheral (Molex) strømkabellengde
150,500 mm
PCI Express-strømtilkobling (6+2-pin)
2
PCI Express-strømforsyning kabellengde
50 cm
CPU strømtilkobling (4+4-pin)
Ja
CPU kraftledning lengde
1 mm
PCI Express-tilkobling
Ja
Kabeltype
Non-Modular
Formål
PC
Strømforsyningsenhetens formfaktor
ATX
80 PLUS-sertifisering
80 PLUS Bronze
ATX-versjon
2.3
EPS-versjon
2.92
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Produktfarge
Svart
Form for nedkjøling
Aktiv
Viftediameter
12 cm
Antall vifter
1 vifter

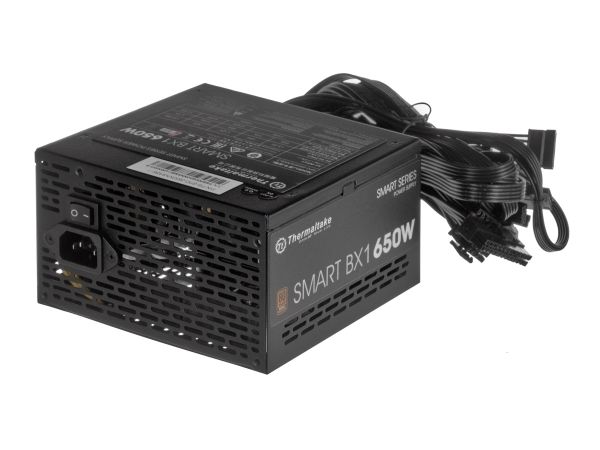

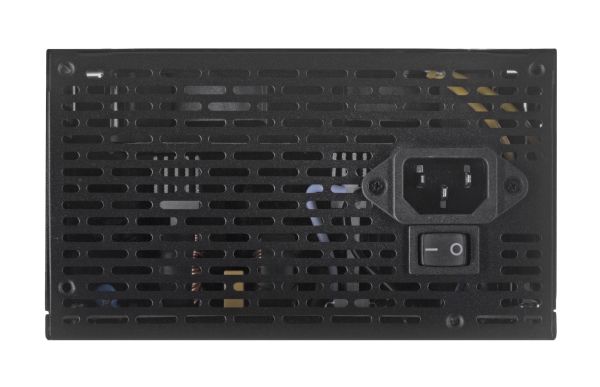

Av/på-bryter
Ja
Driftstemperatur (T-T)
5 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
40 - 55 °C
Relativ luftfuktighet under drift (H-H)
20 - 85%
Lagringsrelativ fuktighet
10 - 95%
Kabler inkludert
CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Bredde
150 mm
Dybde
140 mm
Høyde
86 mm
