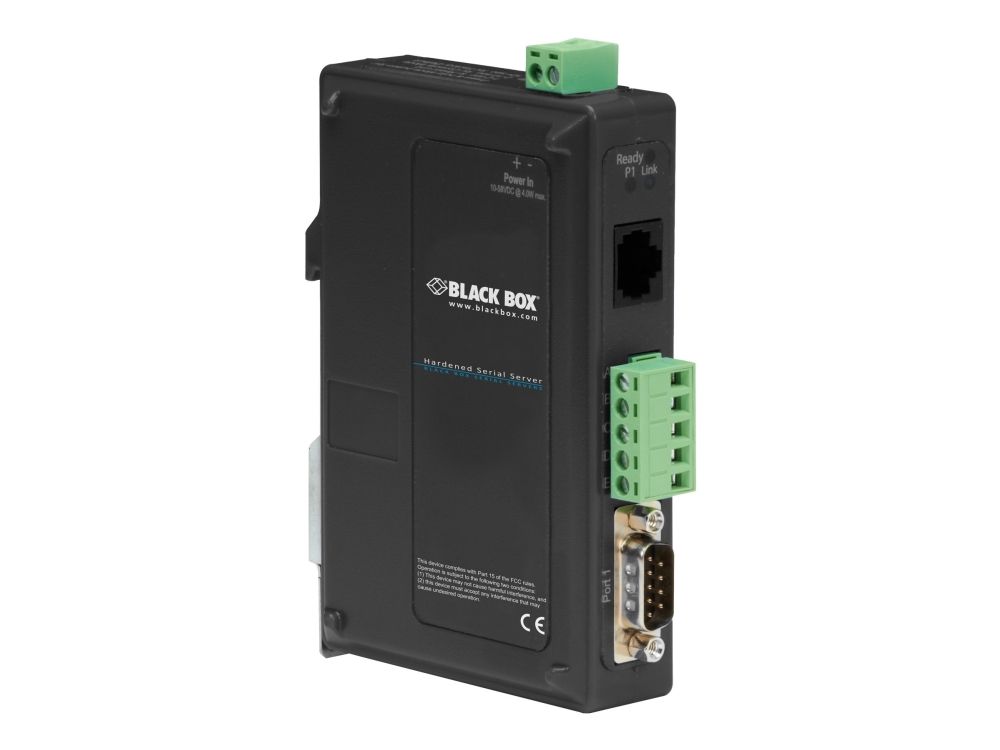

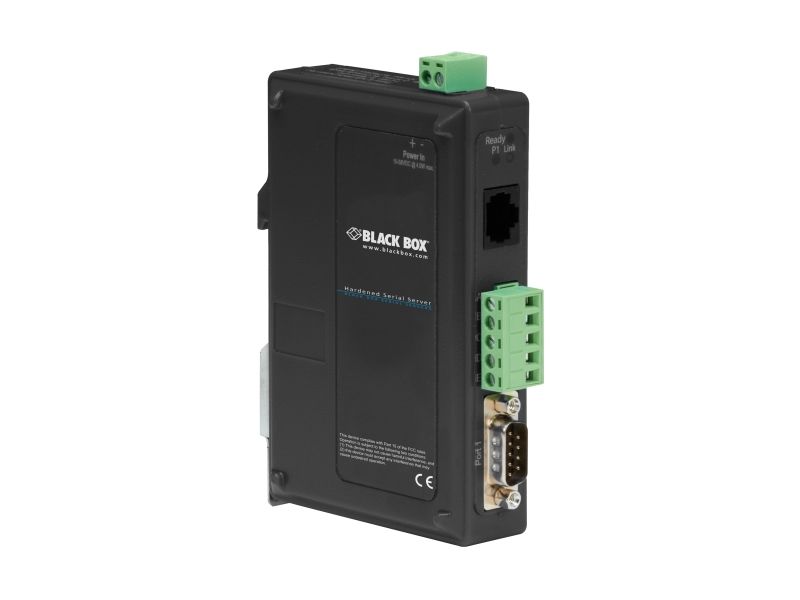

Black Box Hardened Serial Server - Enhetsserver - 100Mb LAN, RS-232, RS-422, RS-485 - skinnemonterbar - TAA-samsvar
Varenr.: [4746280] | Producent: Black box | Model-nr.: LES421A | EAN: 00822088107132
Ikke på lager
Varen er ikke på lager.
Fri frakt Instabox - Velg din nærmeste pakkeboks
Fraktprisen er basert på levering til dette postnummer: - Skift postnummer
Oppgi postnummer for levering.
Se alle alternativer
| Instabox - Velg din nærmeste pakkeboks | Gratis |
| Bring - Hentes på Posten | Gratis |
| PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden | 159,00 |
| Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer) | 224,00 |
Utsolgt
Varen er ikke på lager.
NOK
4.934,00
eksklusiv MVA 3.947,20
Totalt inkl. frakt
4.934,00
Gi meg beskjed når varen er på lager igjen.
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
DETAILS
- Enables you to monitor a serial industrial device from your office.
- Configure a device, troubleshoot, upgrade firmware, and more.
- Rugged design for operation in a wide temperature range.
- UL Listed for use in Class 1 Division 2 hazardous areas.
- NEMA TS-2 rated for use in transportation applications.
- Offers direct IP, virtual COM port, or paired modes of operation.
- Features a DB9 port and terminal block for serial connections.
- Equipped with a 10-/100-Mbps port for LAN/WAN connectivity.
- Built-in Web server for browser-based management.
- Includes easy-to-use configuration software.
- Boasts high throughput with low latency.
- Slim IP30 enclosure saves on DIN rail space.
Communicate easily with an RS-232, RS-422, or RS-485 serial device via your LAN or WAN with the rugged and compact 1-Port Hardened Serial Server from Black Box. It's just what you need to improve productivity and cut down on the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location. Eliminate visits to a distant site just to make a minor change to a configuration. You can do all this from the comfort of your office using an Ethernet LAN or WAN connection, or even from home via a standard Web connection. A simple-to-install, user-friendly Web configuration software application enables programming through a browser connection. No time-consuming setup is required.
Set it up to operate in one of three modes:
- In Direct IP Mode, you use TCP/IP or UDP/IP to communicate directly with the serial device.
- In Virtual COM Mode, you can communicate with the device via your network just as if the device was connected to a physical COM port.
- In Paired Mode, multiple serial devices can communicate with one another using network tunneling (more than one 1-Port Hardened Serial Server is required).
The Hardened Serial Server has a standard DB9 serial port and a removable terminal block for the RS-232, RS-422, or RS-485 device connection, and an autodetecting 10BASE-T/100BASE-TX port for a CAT5 connection to your Ethernet network. Plus, for reliable operation, the serial server offers a heartbeat connection, which detects any TCP communication failures and sends out signals every five seconds until the system is reconnected.
- Enables you to monitor a serial industrial device from your office.
- Configure a device, troubleshoot, upgrade firmware, and more.
- Rugged design for operation in a wide temperature range.
- UL Listed for use in Class 1 Division 2 hazardous areas.
- NEMA TS-2 rated for use in transportation applications.
- Offers direct IP, virtual COM port, or paired modes of operation.
- Features a DB9 port and terminal block for serial connections.
- Equipped with a 10-/100-Mbps port for LAN/WAN connectivity.
- Built-in Web server for browser-based management.
- Includes easy-to-use configuration software.
- Boasts high throughput with low latency.
- Slim IP30 enclosure saves on DIN rail space.
Communicate easily with an RS-232, RS-422, or RS-485 serial device via your LAN or WAN with the rugged and compact 1-Port Hardened Serial Server from Black Box. It's just what you need to improve productivity and cut down on the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location. Eliminate visits to a distant site just to make a minor change to a configuration. You can do all this from the comfort of your office using an Ethernet LAN or WAN connection, or even from home via a standard Web connection. A simple-to-install, user-friendly Web configuration software application enables programming through a browser connection. No time-consuming setup is required.
Set it up to operate in one of three modes:
- In Direct IP Mode, you use TCP/IP or UDP/IP to communicate directly with the serial device.
- In Virtual COM Mode, you can communicate with the device via your network just as if the device was connected to a physical COM port.
- In Paired Mode, multiple serial devices can communicate with one another using network tunneling (more than one 1-Port Hardened Serial Server is required).
The Hardened Serial Server has a standard DB9 serial port and a removable terminal block for the RS-232, RS-422, or RS-485 device connection, and an autodetecting 10BASE-T/100BASE-TX port for a CAT5 connection to your Ethernet network. Plus, for reliable operation, the serial server offers a heartbeat connection, which detects any TCP communication failures and sends out signals every five seconds until the system is reconnected.
