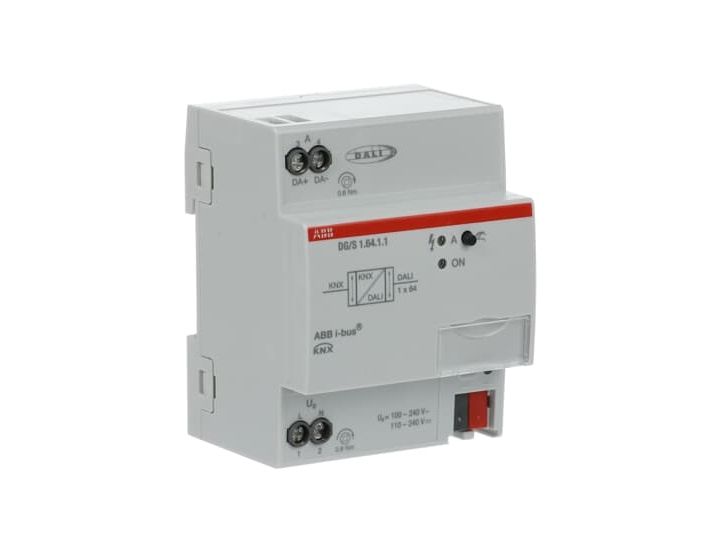

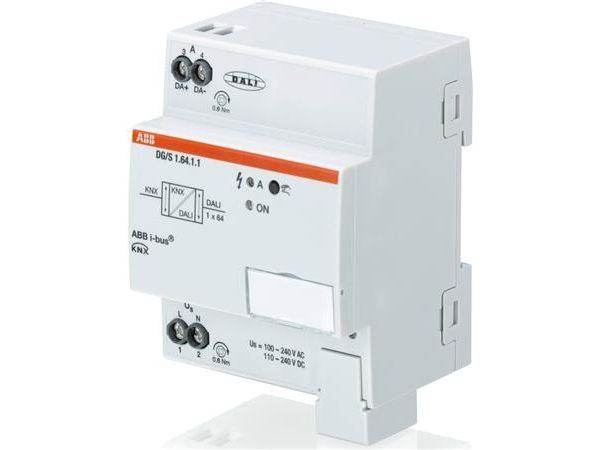

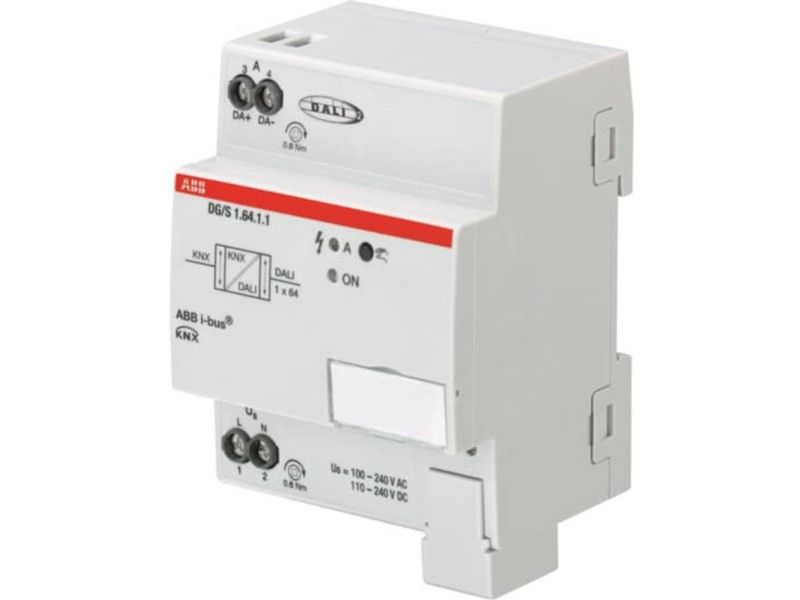

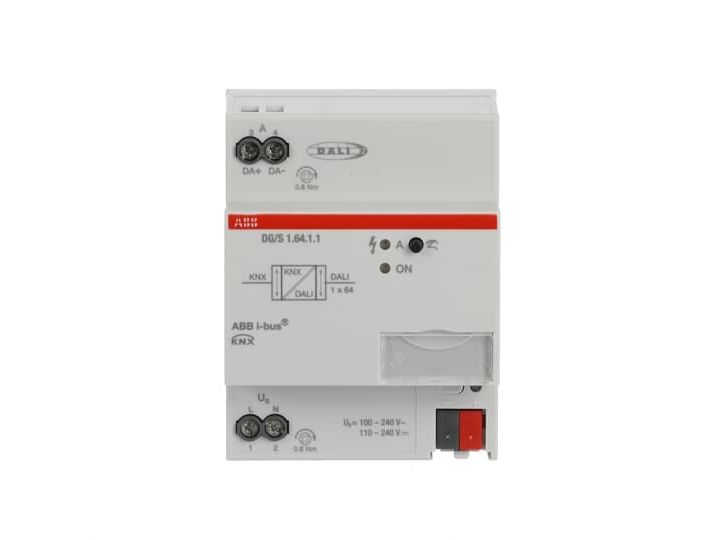

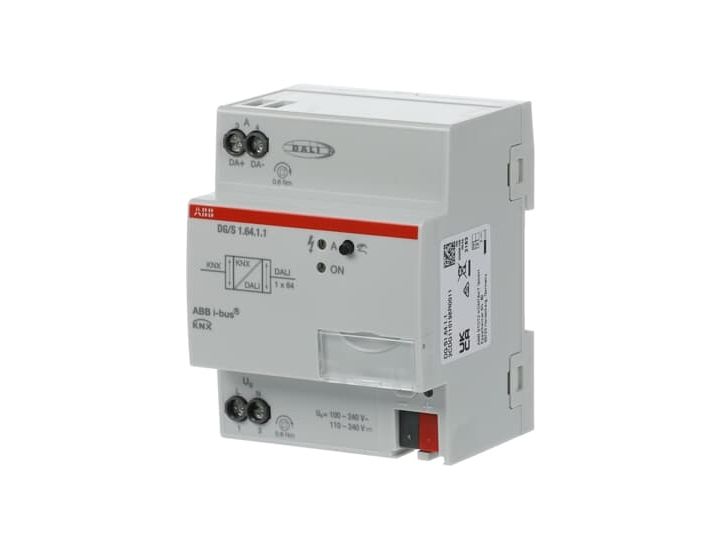

ABB KNX DALI-gateway, Basic 1-kanals, MDRC DG/S1.64.1.1

Varenr.: [4549404] | Producent: ABB | Model-nr.: 2CDG110198R0011 | EAN: 4016779942669 | UNSPSC.: 43222605 | EL-nr.: 7826107928
Fjernlager
Varen er på fjernlager, leveringstiden er 3-4 hverdager. Mere info
Leveringsalternativer  - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering. Lagre
NOK 7.245,00
eksklusiv MVA 5.796,00
Totalt inkl. frakt 7.245,00
Les ytterligere spesifikasjoner og beskrivelse.
Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 standard devices via ABB i-bus KNX. One DALI output for up to 64 DALI participants. The DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (64), with lighting groups (16), together in broadcast or per scenes (16). Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene- function are integrated. Self-contained emergency converter, DT1 acc. EN 62386-202 will be supported. By means of KNX and emergency converter, different emergency tests (e.g., function and duration test) can be triggered. Other DALI devices e.g., DT6 or DT8 can be controlled via standard DALI commands acc. to EN 62386-102.
