Manhattan 207959, AV-sender og -mottaker, 180 m, Koblet med ledninger (ikke trådløs), HDCP

Easily extend a High-Definition (HD) signal over an IP network with a single Ethernet cable.

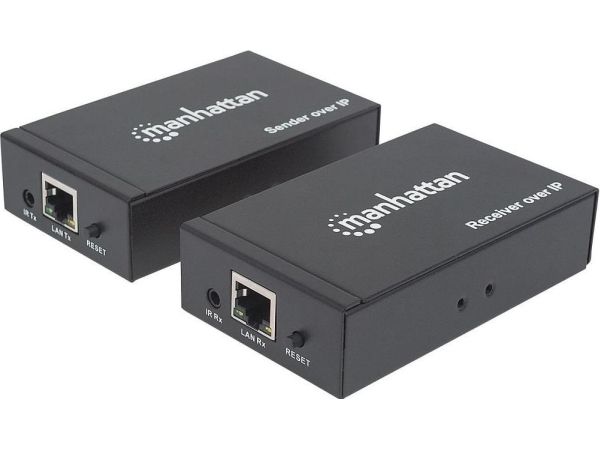

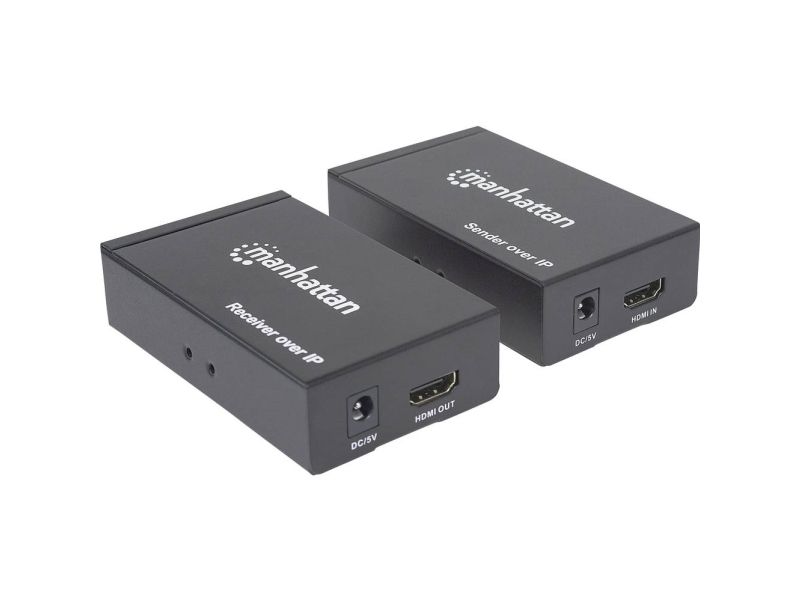

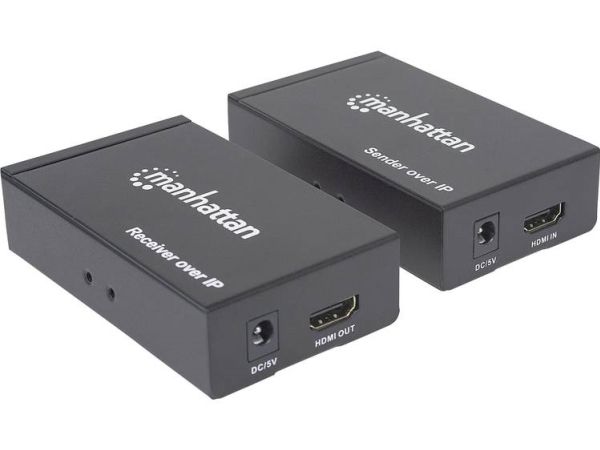

The Manhattan 1080p HDMI over IP Extender Kit is the ideal solution for connecting virtually any digital HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector up to 120 m (396 ft.) away using an IP network and a single Ethernet cable. This powered HDMI over IP Extender Kit provides reliable 1080p resolution video and multichannel audio transmission over longer distances than HDMI cables alone. Plus, the transmitter and receiver modules have additional 3.5 mm ports for Infrared (IR) to allow for the control of the source from the display's location.


Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, home theatre, conference rooms, business office and retail applications, the Manhattan 1080p HDMI over IP Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling - UTP, SSTP or SFTP (cables not included) - is less expensive and easier to install than HDMI cabling and in-line signal repeaters. When used with our Extender Kit, this cable delivers a clear, sharp and vivid picture over longer distances.


Quality Construction and Easy Installation

HDCP compliant with HDMI, the Manhattan 1080p HDMI over IP Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware.

- Extends an HDMI signal from an HDMI source to a High-Definition (HD) monitor or projector up to 120 m (396 ft.) using an unmanaged network switch and an Ethernet cable
- Works in conjunction with existing network infrastructures via TCP/IP

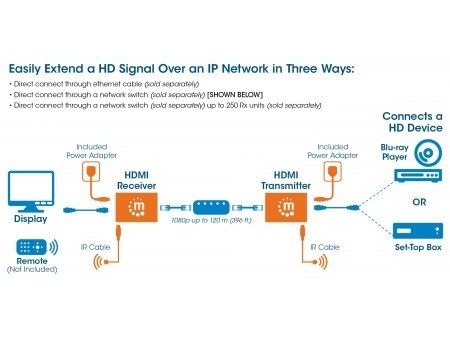

- Supports three connection configurations: direct connect from transmitter (Tx) unit to receiver (Rx) unit; Tx unit to network switch to Rx unit; Tx unit to network switch to many Rx units
- Can connect up to 250 displays to network with additional Rx units
- Supports uncompressed 1080p resolution at 120 m (396 ft.) and 10.2 Gbps data throughput
- Supports video amplifier bandwidth up to 165 MHz and 1.65 Gbps per channel (4.95 Gbps total) for 1080p displays
- Supports lossless LPCM 8 channel uncompressed audio formatting and 5.1 surround sound
- Offers IR Tx and Rx cables that allow for convenient remote control of HD signal source
- HDCP compliant
- Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
- Plug and play
- Plug and play — requires no installation or configuration
- A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- Compatible with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Gold-plated contacts
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
