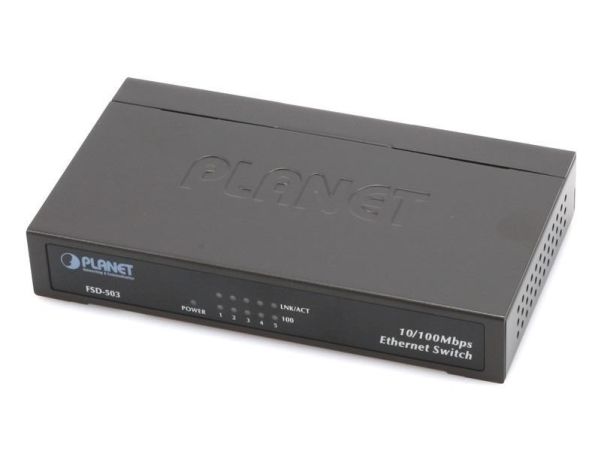

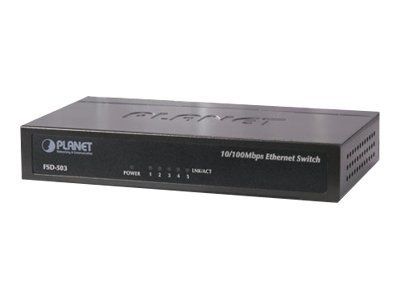

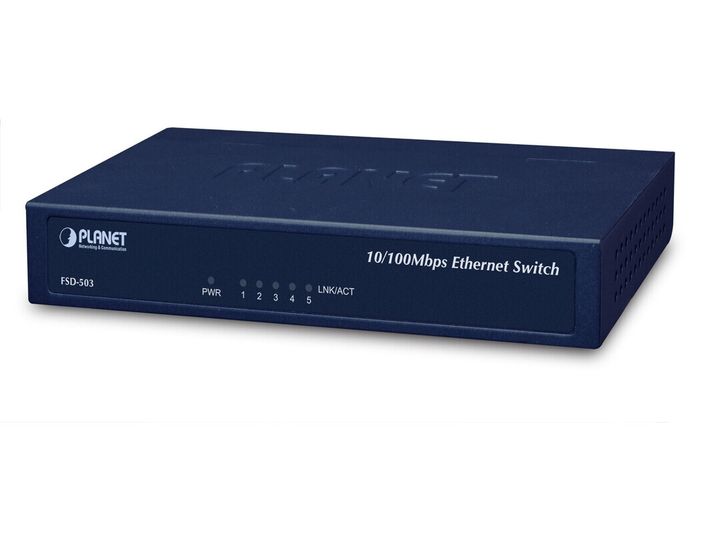

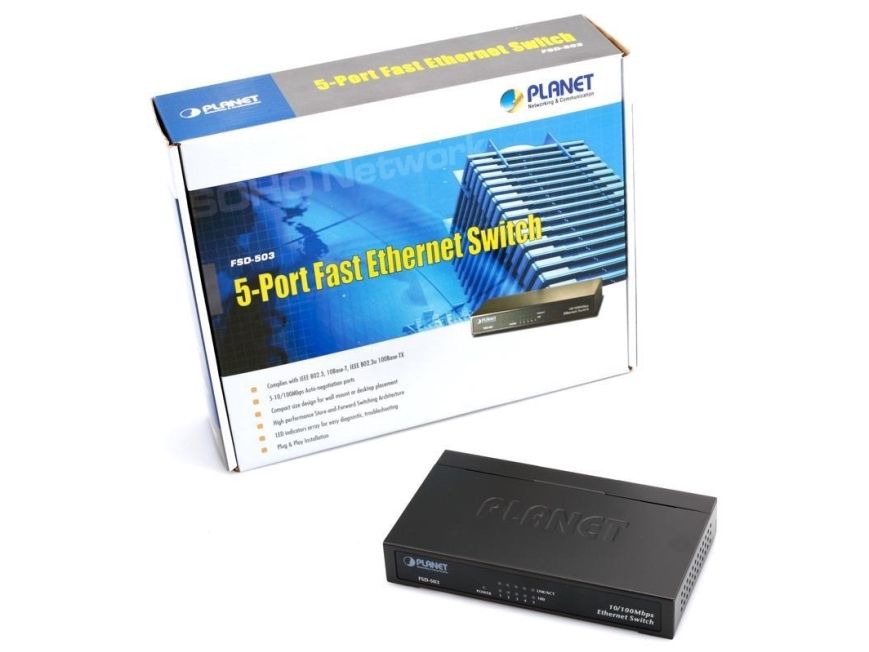

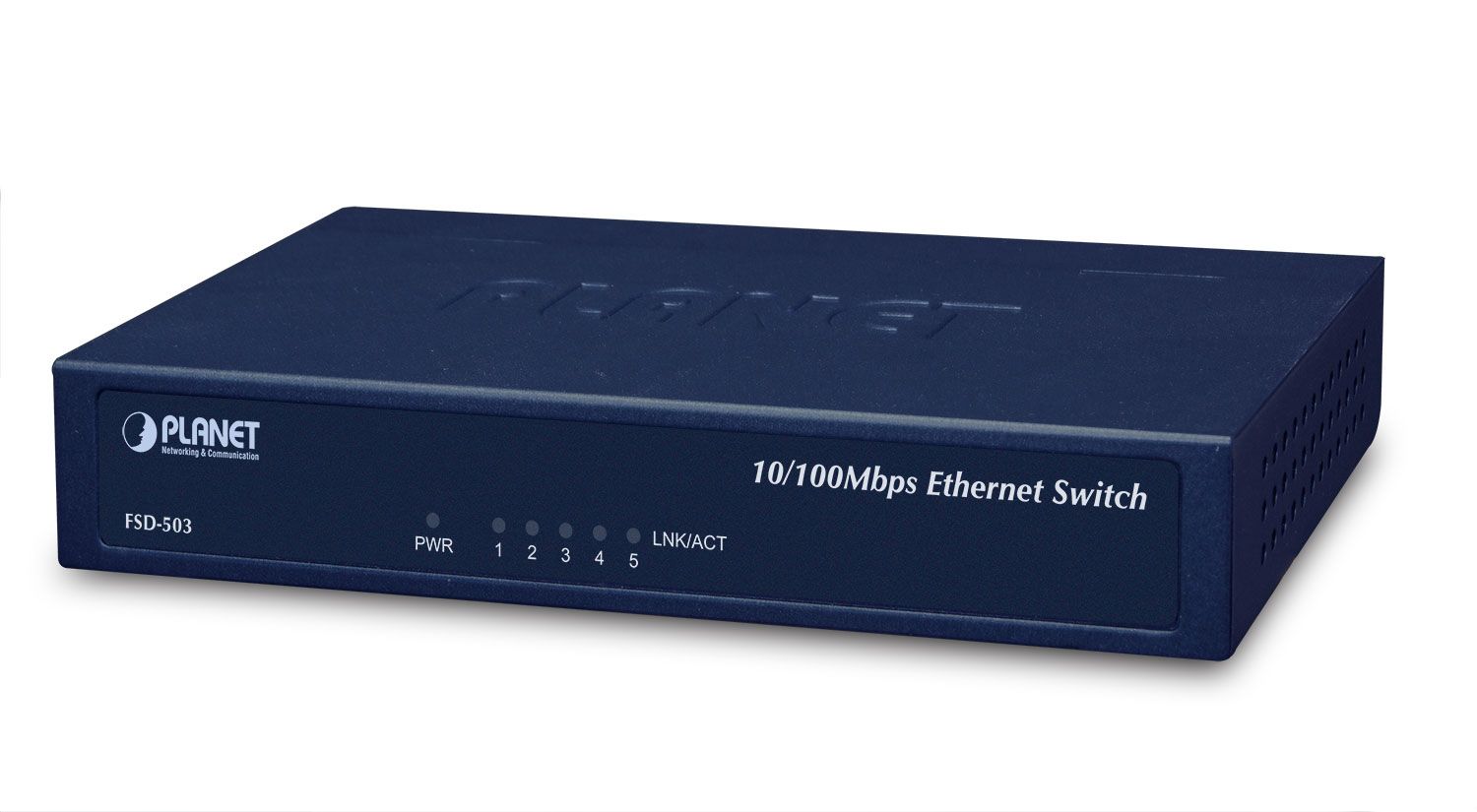

PLANET Fast Ethernet Switch FSD-503 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.
Stable Fast Ethernet Switch Performance
The FSD-503 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and built-in packet buffer help the FSD-503 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-503 could recognize up to a 2K different MAC addresses and provide 1Gbps switching capacity, which makes the FSD-503 the best in wire-speed packet transfer performance without risk of packet loss.
Flexible Desktop Size Design
The FSD-503 is a fancy-shaped standard metal model that nicely fits in a space-limited environment. With concepts of "easy to install and use", "compact sized design", and "simple troubleshooting", the FSD-503 provides cost-conscious business and home users with a flexible yet cost-effective SOHO / Home networking.
Produktbeskrivelse
PLANET FSD-503 - switch - 5 porter
Enhetstype
Switch - 5 porter
Undertype
Fast Ethernet
Porter
5 x 10/100
Mac Adress Tabellstørrelse
1K oppføringer
Egenskaper
Flytkontroll, Auto-negotiation, auto-uplink (auto MDI/MDI-X), lagring og fremsending
Tilpassede standarder
IEEE 802.3, IEEE 802.3u
Dimensjoner (BxDxH)
16 cm x 8 cm x 2.8 cm
Generelt
Enhetstype
Switch - 5 porter
Utførelse
Stasjonær
Undertype
Fast Ethernet
Porter
5 x 10/100
Mac Adress Tabellstørrelse
1K oppføringer
Egenskaper
Flytkontroll, Auto-negotiation, auto-uplink (auto MDI/MDI-X), lagring og fremsending
Tilpassede standarder
IEEE 802.3, IEEE 802.3u
Statusindikatorer
Strøm, link OK, lenke/aktivitet
Ekspansjon / Tilkoplinger
Grensesnitt

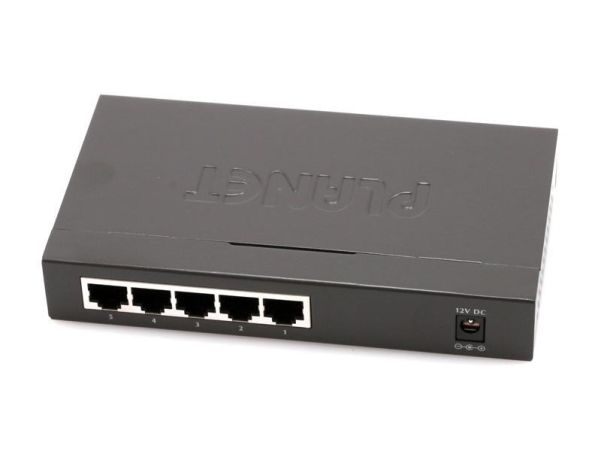

5 x 100Base-TX RJ-45
Diverse
Tilpassede standarder
Plug and Play, FCC-klasse B-sertifisert
Mål og vekt
Bredde
16 cm
Dybde
8 cm
Høyde
2.8 cm
Miljøparametere
Min. driftstemperatur
0 °C
Maks. Driftstemperatur
50 °C
Driftsfuktighet
10 - 90%
Produktet har følgende varenummer i vårt system:
EAN:
4711213680304
SKU:
FSD-503
SKU:
FSD503
