Wieland Electric 96.031.1053.1
Varenr.: [4365053] | Producent: WIELAND | Model-nr.: 96.031.1053.1 | EAN: 4015573848399
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer - Klikk på et alternativ for å velge
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
141,00
eksklusiv MVA 112,80
Totalt inkl. frakt
200,00
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail
Wieland RST Lighting Connector
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.
Features and Benefits
The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ?€?50/120V
Connectors have M25 or M20 threads, with spring termination, for solid cable wire size between 0.5 to 2.5 mm?? and stranded cable wire size between 0.5 to 1.5 mm??
Panel mount with 2 connections for each pole
Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
Connectors lock together and are self-locking
Applications and Uses:
Electrical installations
General network applications
Switching applications
Multiphase systems

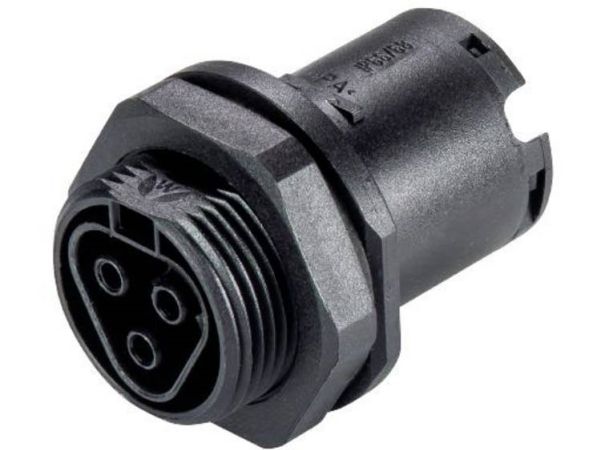

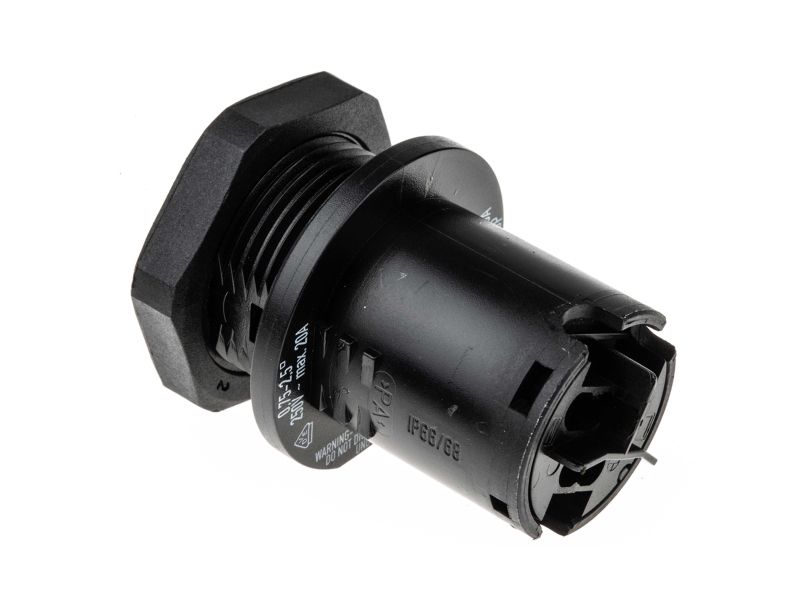

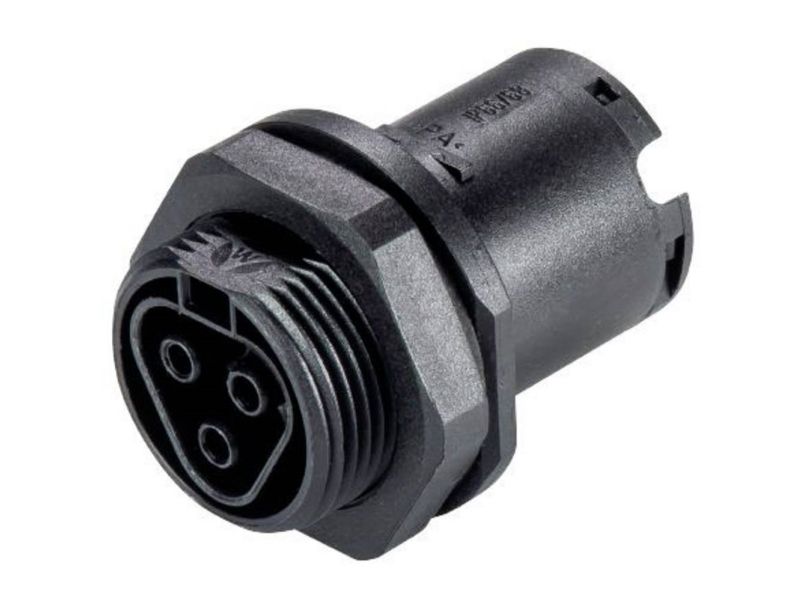

RST20i3 Lighting Connector
Female M25 straight angle connector
For cable diameter 10 14 mm
Rated current of 20A and rated voltage of 250V/400V
Three pole, turned contacts with spring clamp connection
Black coding
IP66/68 degree of protection
Dimensions: length 46.6 mm, width 35 mm, height 35 mm
Gesis RST Connector Range
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.
Features and Benefits
The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ?€?50/120V
Connectors have M25 or M20 threads, with spring termination, for solid cable wire size between 0.5 to 2.5 mm?? and stranded cable wire size between 0.5 to 1.5 mm??
Panel mount with 2 connections for each pole
Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
Connectors lock together and are self-locking
Applications and Uses:
Electrical installations
General network applications
Switching applications
Multiphase systems
RST20i3 Lighting Connector
Female M25 straight angle connector
For cable diameter 10 14 mm
Rated current of 20A and rated voltage of 250V/400V
Three pole, turned contacts with spring clamp connection
Black coding
IP66/68 degree of protection
Dimensions: length 46.6 mm, width 35 mm, height 35 mm
Gesis RST Connector Range
