Lumberg SV 50/6

Varenr.: [4261572] | Producent: Lumberg Automation | Model-nr.: SV 50/6 | EAN: 2050000775383
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer  - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Bring – Leveres til pakkeboks nær deg
59,00
Bring – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering. Lagre
NOK 144,00
eksklusiv MVA 115,20
Totalt inkl. frakt 203,00
SV Cable Plugs
Straight version with threaded joint and solder terminals
Standards
IEC60130-9

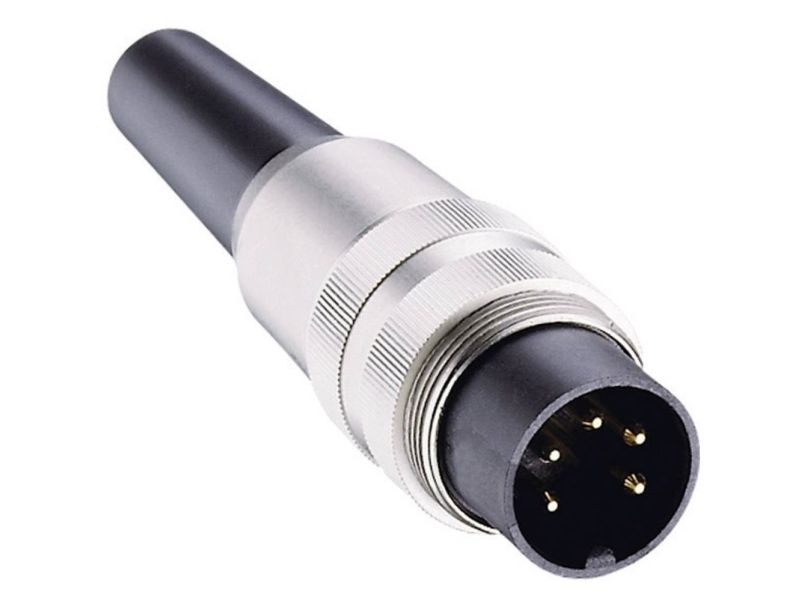

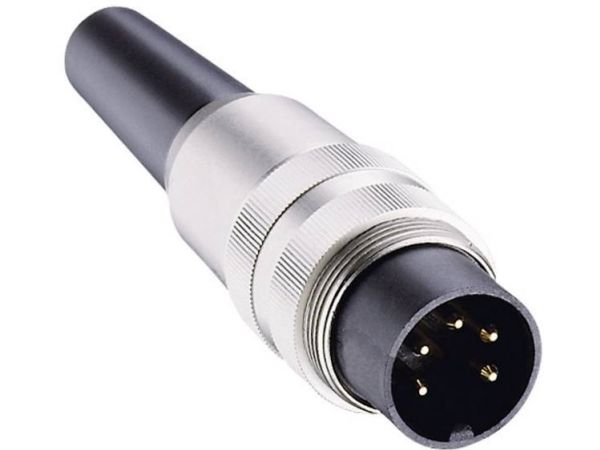

Lumberg DIN Connector
The Lumberg DIN connector is an SV series 5-pole, male, din plug with an electrical rating of 250VAC and 5A. This connector has brass contact material plated with gold over silver. It has chassis, cable mount plugs and sockets up to 12-way.
Features and Benefits
Cable mount device
Contact resistance 5mohm
Operating temperature ranges between -40°C and 85°C
Straight version with threaded joint
Solder terminals
Applications
Automation technology
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors
Certifications
EN 60529
IEC60130-9
IP40 rated
Lumberg Connectors - IP40
Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.
