Lumberg KV 60
Varenr.: [4261500] | Producent: Lumberg Automation | Model-nr.: KV 60 | EAN: 2050000777103
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer - Klikk på et alternativ for å velge
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
126,00
eksklusiv MVA 100,80
Totalt inkl. frakt
185,00
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail

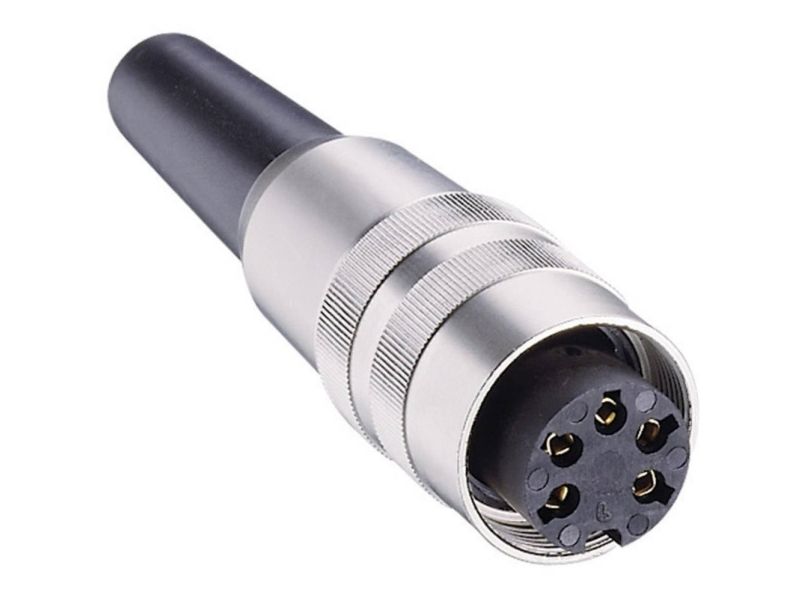

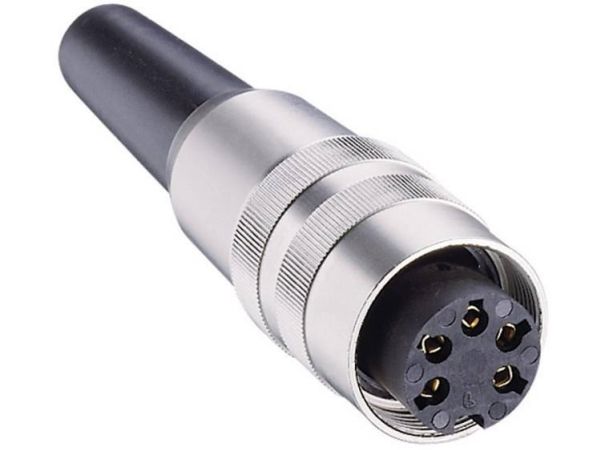

KV Cable Sockets
Straight version with threaded joint and solder terminals
533-2778 is domino layout (with pin in four corners and a middle pin)
Standards
IEC60130-9
Lumberg DIN Connector
The Lumberg DIN connector is a KV series, 6-pole, female, socket with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. The connectors body is made from zinc alloy material with brass contacts with silver or gold finish. It has chassis, cable mount plugs and sockets up to 12-way. This circular connector socket is designed to be mounted on printed circuit boards and is also suitable for locking.
Features and Benefits
Contact resistance is 5mohm
Front mounting device
Screw on mating type
360°C shielded
Solder terminals
Straight orientation with a threaded joint
Operating temperature ranging between -40°C and 85°C
Applications
Automation
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors
Certifications
IEC60130-9
IP40 rated
Approvals
IEC60130-9
Lumberg Connectors - IP40
Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.
