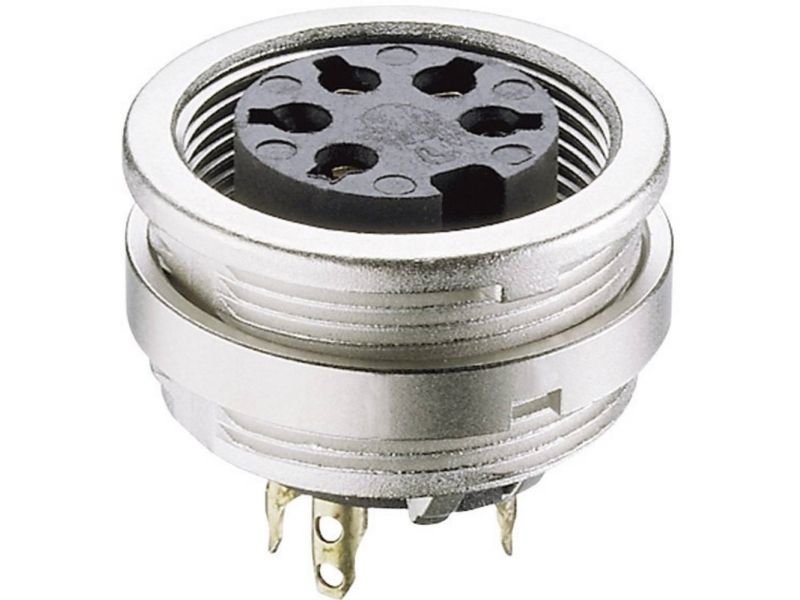

Lumberg KFV 40
Varenr.: [4261458] | Producent: Lumberg Automation | Model-nr.: KFV 40 | EAN: 2050000774508
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Bring – Leveres til pakkeboks nær deg
59,00
Bring – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
92,00
eksklusiv MVA 73,60
Totalt inkl. frakt
151,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
KFV Chassis Sockets
Front mounting with threaded joint and solder terminals
533-2728 is domino layout (with pin in four corners and a middle pin)
Standards
IEC60130-9
Lumberg DIN Socket
The Lumberg DIN socket is a KFV series, 4-pole, female, panel mount with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. Its body is made from zinc alloy material with brass contacts with silver or gold finish. It has chassis, cable mount plugs and sockets up to 12-way. This circular connector socket is designed to be mounted on printed circuit boards and is also suitable for locking.
Features and Benefits
360°C shielded
Contact resistance 5mohm
Front mount with threaded joint
Operating temperature ranging between -40°C and 85°C
Solder terminals
Straight orientation with a threaded joint
Applications
Automation
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors
Certifications
IEC60130-9
IP40 rated
Approvals
IEC60130-9
Lumberg Connectors - IP40
Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.
