Lumberg 0332 08-1
Varenr.: [4261358] | Producent: Lumberg Automation | Model-nr.: 0332 08-1 | EAN: 2050000773617
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer - Klikk på et alternativ for å velge
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
225,00
eksklusiv MVA 180,00
Totalt inkl. frakt
284,00
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail
0332 Cable Plugs
Threaded joint and solder terminals
360°C shielded
Standards
IEC60130-9

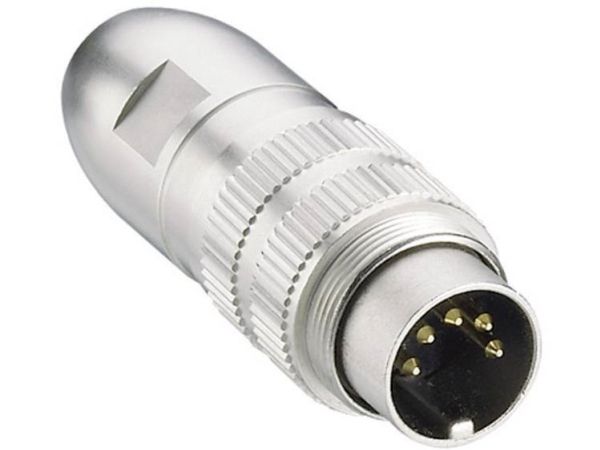

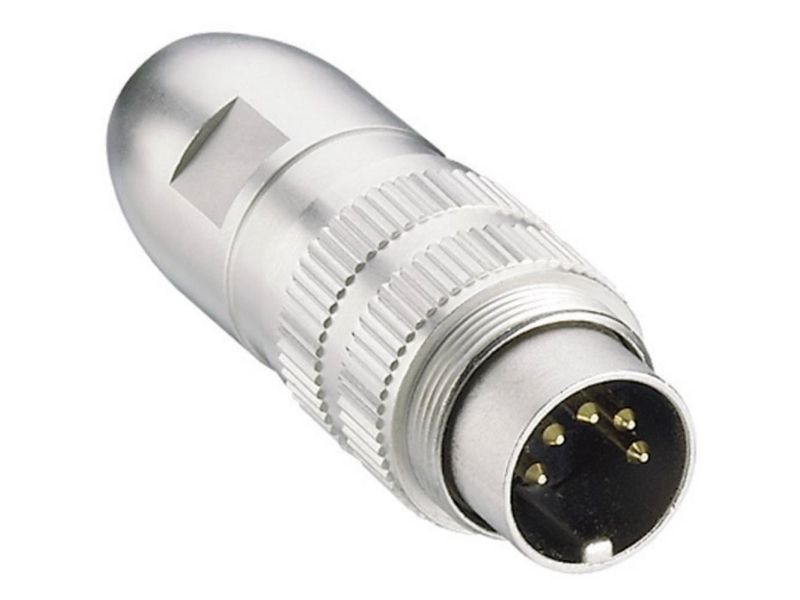

Lumberg DIN Plug
The Lumberg DIN plug is an 8-pole, male, cable mount connector with an electric rating of 250VAC and 5A. It is round in shape with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way. The body of connector is made from zinc alloy material with brass contacts and silver or gold finish. This circular connector socket is designed to be mounted on printed circuit boards and is also suitable for locking.
Lumberg Connectors Standard and SWUM - IP68
Lumberg Connectors Standard and SWUM - IP68 Chassis and cable mount plugs and sockets up to 12-way, with or without 360°C shielding.
Features and Benefits
360°C shielded design
Long bend protection
Operating temperature ranging between -40°C and 85°C
Screw on mating type
Solder terminals
Straight orientation with a threaded joint
Applications
Automation
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors
Certifications
IEC60130-9
IP68 rated
Lumberg Connectors Standard and SWUM - IP68
Lumberg Connectors Standard and SWUM - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360°C shielding. Typical applications are control engineering, automation technology and medical instrumentation.
