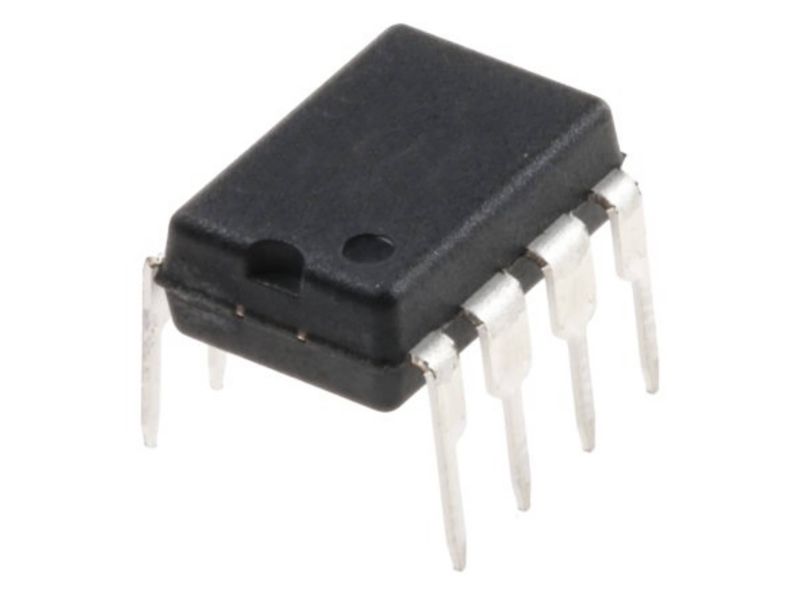

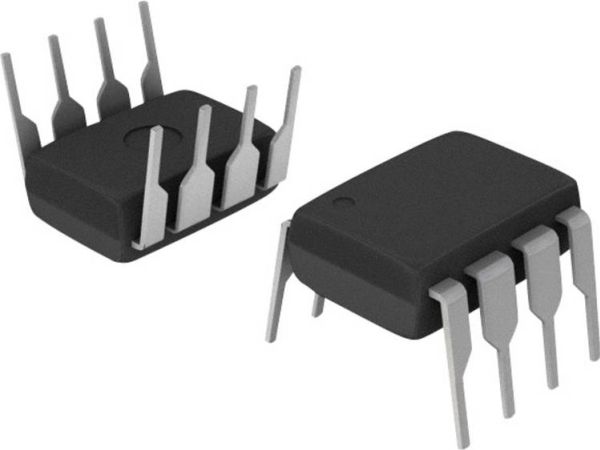

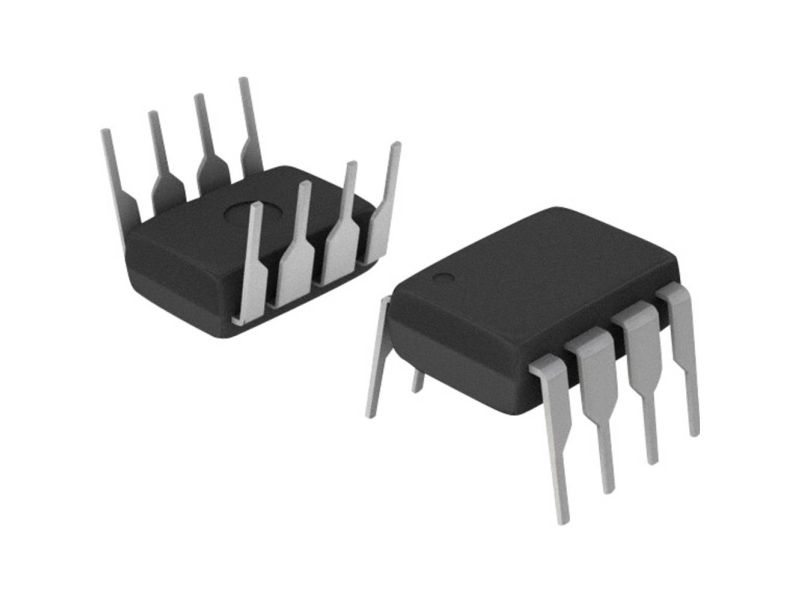

Broadcom HCPL-3120-000E
Varenr.: [4221619] | Producent: Broadcom | Model-nr.: HCPL-3120-000E | EAN: 2050000587290
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer - Klikk på et alternativ for å velge
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
65,00
eksklusiv MVA 52,00
Totalt inkl. frakt
124,00
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail
Optocoupler, Transistor Output, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
The Broadcom HCPL-3120 gate drive optocouplers contain a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. It is ideally suited for driving power IGBTs and MOSFETs used in motor control inverted applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices.
2.0 A Minimum Peak Output Current
15 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1500 V
0.5 V Maximum Low Level Output Voltage (VOL)
Eliminates Need for Negative Gate Drive
ICC = 5 mA Maximum Supply Current
Under Voltage Lock-Out Protection (UVLO) with Hysteresis
Wide Operating VCC Range: 15 to 30 Volts
500 ns Maximum Switching Speeds
Industrial Temperature Range:
-40 degree C to 100 degree C
Optocouplers, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
The Broadcom HCPL-3120 gate drive optocouplers contain a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. It is ideally suited for driving power IGBTs and MOSFETs used in motor control inverted applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices.
2.0 A Minimum Peak Output Current
15 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1500 V
0.5 V Maximum Low Level Output Voltage (VOL)
Eliminates Need for Negative Gate Drive
ICC = 5 mA Maximum Supply Current
Under Voltage Lock-Out Protection (UVLO) with Hysteresis
Wide Operating VCC Range: 15 to 30 Volts
500 ns Maximum Switching Speeds
Industrial Temperature Range:
-40 degree C to 100 degree C
Optocouplers, Avago Technologies
