BlueOptics BO25K859S2D, Fiber optisk, 40000 Mbit/s, QSFP, MTP/MPO, SR4, 150 m

Superior Performance

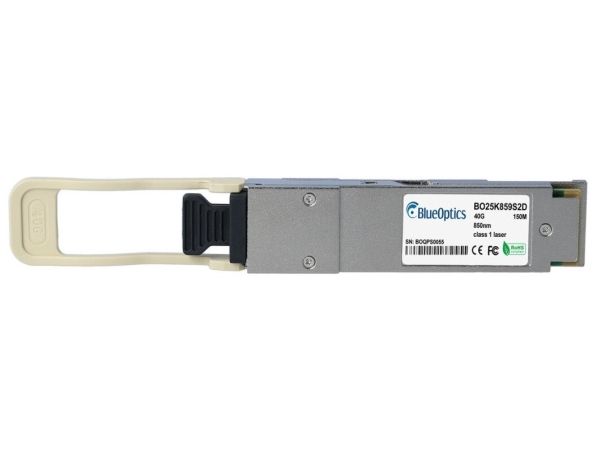

The BlueOptics© BO25K859S2D Quad Small Form-Factor Pluggable (QSFP) transceiver with MPO (Multifiber Push-On) / MTP (Multifiber-Termination Push-On) connector from CBO is designed for short-range multi-mode 40 Gigabit Ethernet (40GbE), 40 Gigabit Fibre Channel over Ethernet (40Gb FCoE) or OC-768/STM256 SDH/SONET high-speed applications of up to 41.25 gigabits per second.

Wide Range of Applications

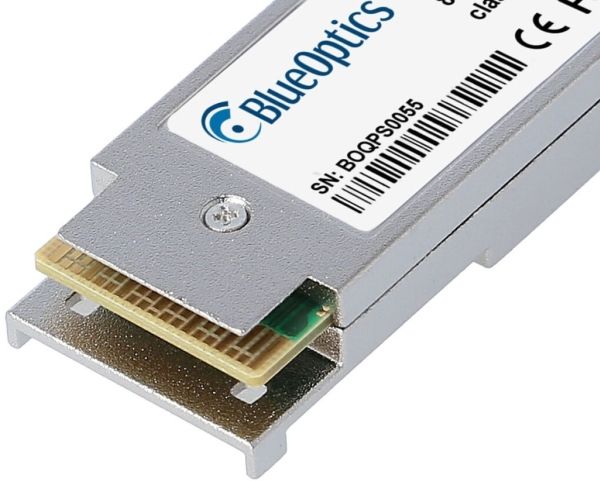

The BlueOptics BO25K859S2D QSFP transceiver with an electric high-speed interface for optical data transfers, can be used for connecting Ethernet switches with eight parallel OM3 or OM4 fiber cores per MPO/MTP trunk (for the connection to another QSFP transceiver port) or breakout cable (for the connection of four 10G transceiver ports) for example. The transmission uses the 40GBASE-SR4 technology (defined by IEEE 802.3ba standard), via 4x 850nm, each with 10.3125 Gbps. Over an OM3 fiber link this module achieves a transmission distance of up to 100 meters and up to 150 meters over OM4.

Data Transmission at the Speed of Light

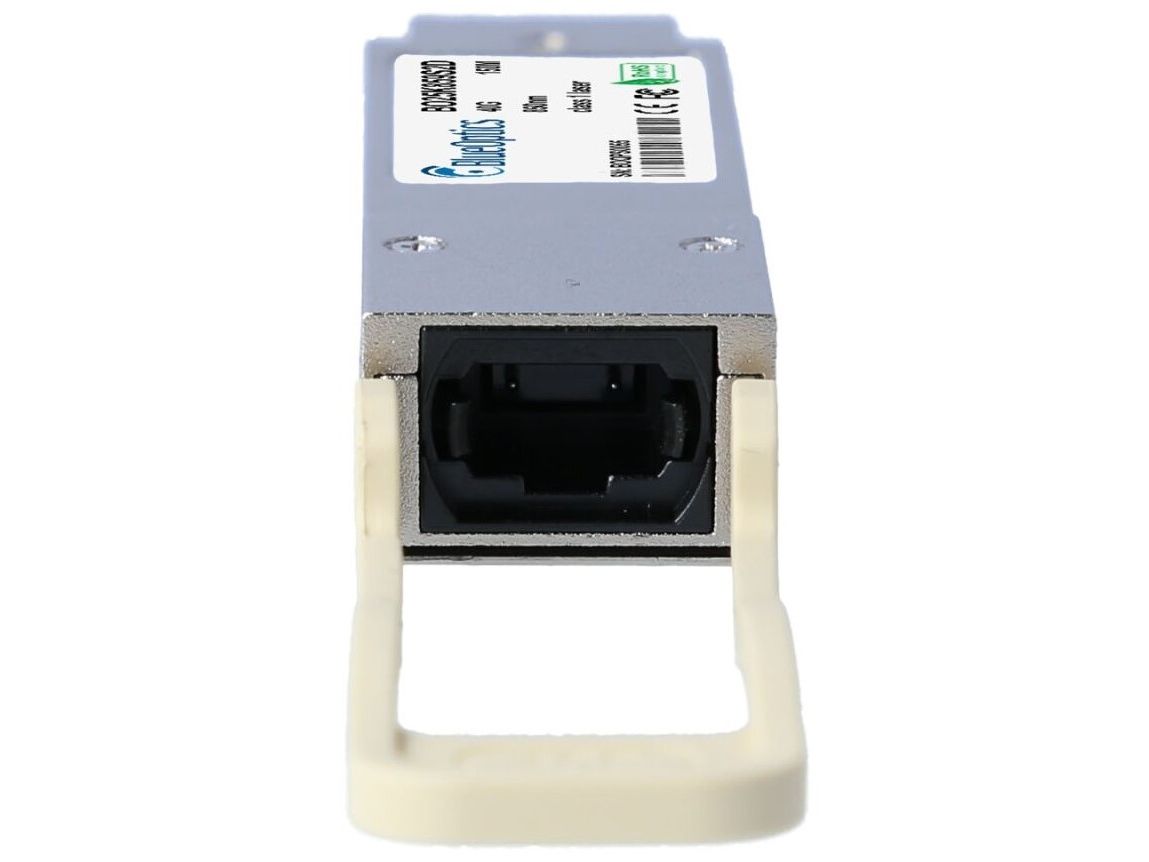

Increase your bandwidth and lower the latency. BlueOptics BO25K859S2D QSFP transceivers transmit and receive signals via one optical fiber and have a MPO / MTP connector. The connection takes place via a BlueOptics Patch Cord onto a patch panel or directly to another transceiver.

Error Analysis with Digital Diagnostics
Facilitate troubleshooting, maintenance and monitoring in your network through the Digital Diagnostics Monitoring (DDM) / Digital Optical Monitoring (DOM) interface. Using the digital diagnosis function, compliant with MSA SFF-8472, BlueOptics BO25K859S2D QSFP transceivers provide real time information like Supply Voltage, Laser Bias Current, Laser Average Output Power, Laser Received Input Power and Temperature.

Maximum Availability
Less maintenance due to a long lifetime. BlueOptics BO25K859S2D QSFP transceivers only use components of leading manufacturers for Lasers (i.a. Lumentum, Avago, Mitsubishi, Sumitomo) and Integrated Circuits (i.a. Maxim Integrated, Netlogic, Mindspeed, Analog Devices). BlueOptics BO25K859S2D QSFP transceivers are designed for an above-average operating time of approximately 3.000.000 MTBF hours.

Full MSA Compliance
BlueOptics BO25K859S2D high availability QSFP transceivers meet the Multi Source Agreement (MSA) standard SFF-8436. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability. Here the QSFP interface is defined electrically, mechanically and functionally.

Industrial Standards
BlueOptics BO25K859S2D high availability QSFP transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process, according to ISO9001, CBO reaches a steady quality of each BlueOptics BO25K859S2D QSFP transceiver.

Act now!
By using BlueOptics high availability transceivers, networks can be prepared for increasing demands. Regardless whether an increased data volume, higher transmission rates, greater scalability, higher performance and/or a higher reliability is desired. With BlueOptics transceivers you can improve your connections and reduce your CAPEX for pluggable optics up to 90%.
