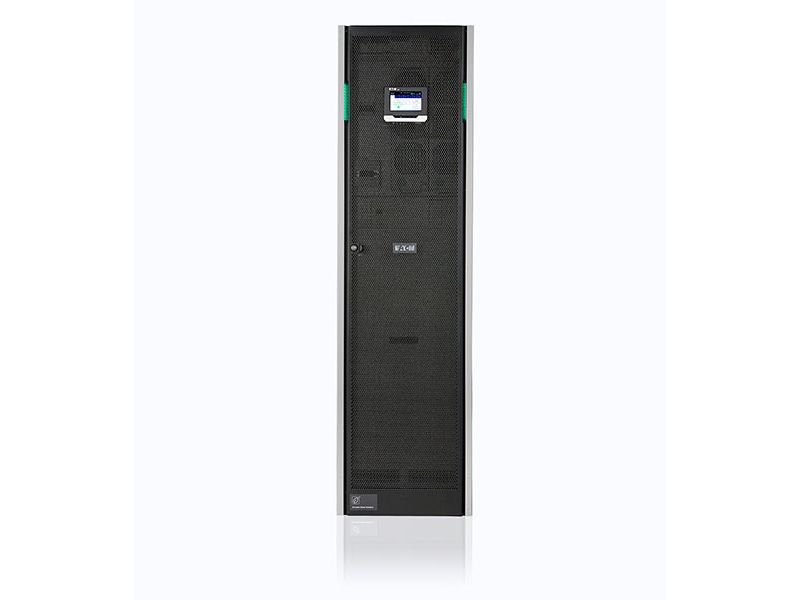

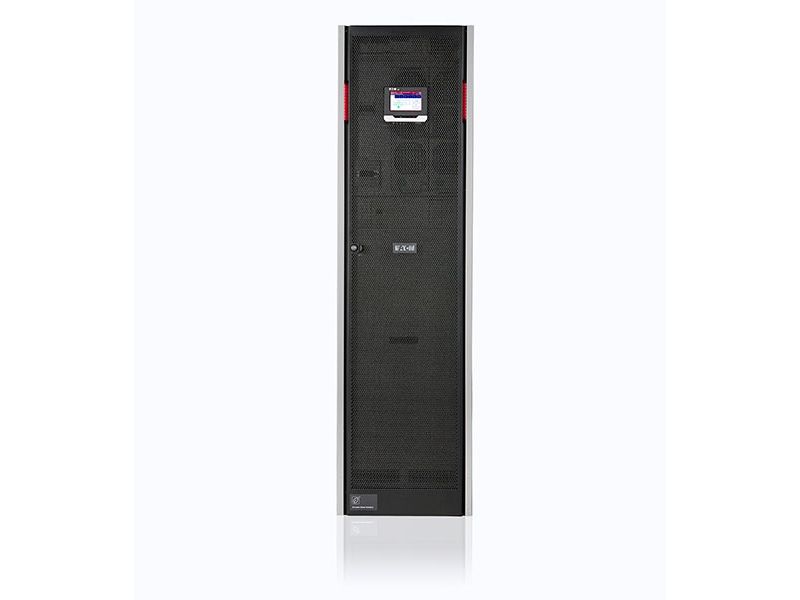

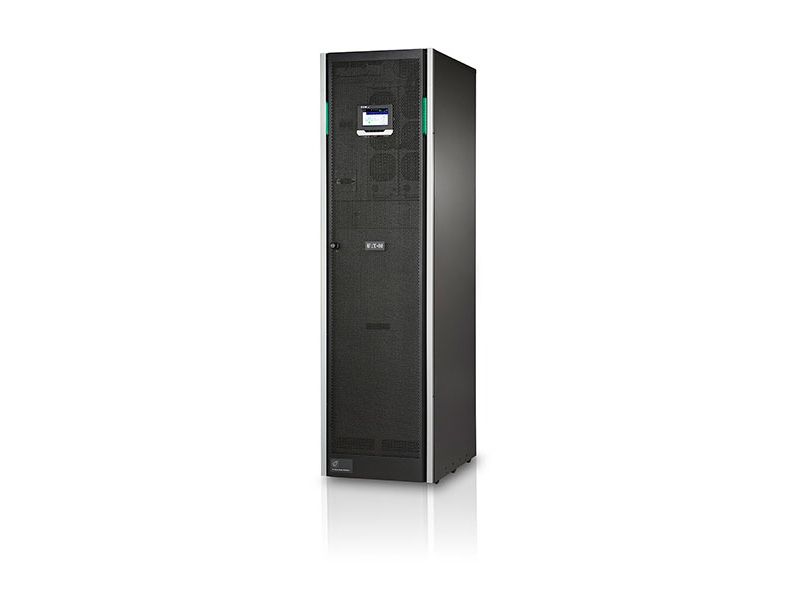

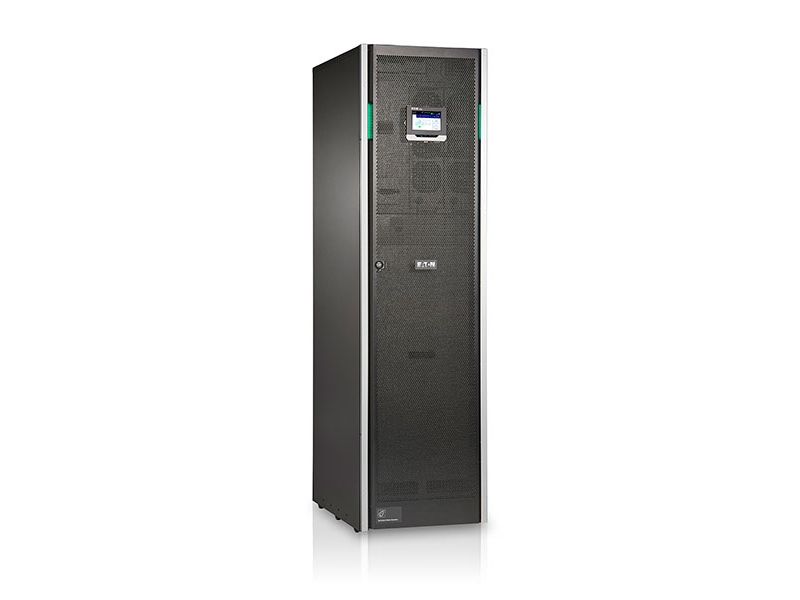

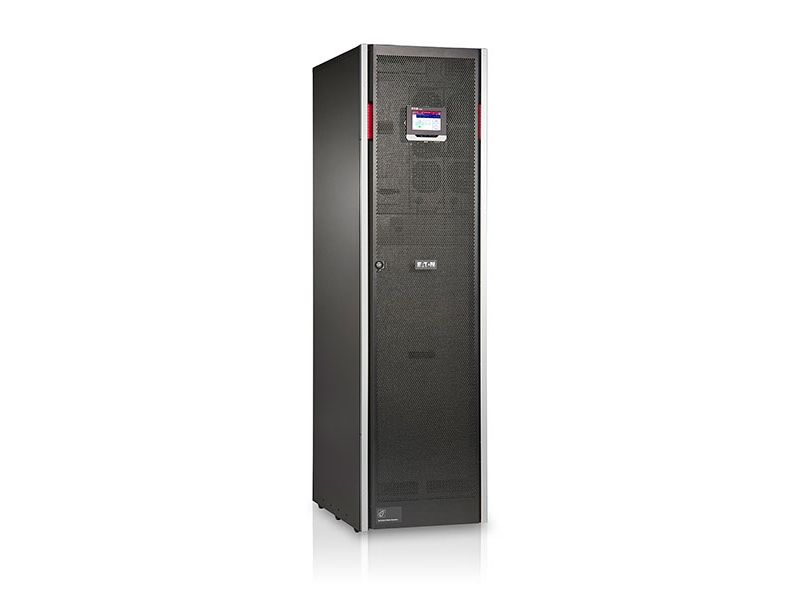

Eaton 93PS, Dobbeltkonvertering (Online), 40 kVA, 40000 W, Ren sinus, 380 V, 415 V
Varenr.: [4019724] | Producent: Eaton Corporation | Model-nr.: BD04A0206A01000000 | EAN: 6430028226283
Ikke på lager
Varen er ikke på lager.
Bring (Home Delivery) - Hjemlevering - Levering til nærmeste fortauskant.
Utsolgt
Varen er ikke på lager.
NOK
142.502,00
eksklusiv MVA 114.001,60
Totalt inkl. frakt
142.502,00
Gi meg beskjed når varen er på lager igjen.
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Efficiency
- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
- Paralleling of up to 4 units
Inherent redundancy

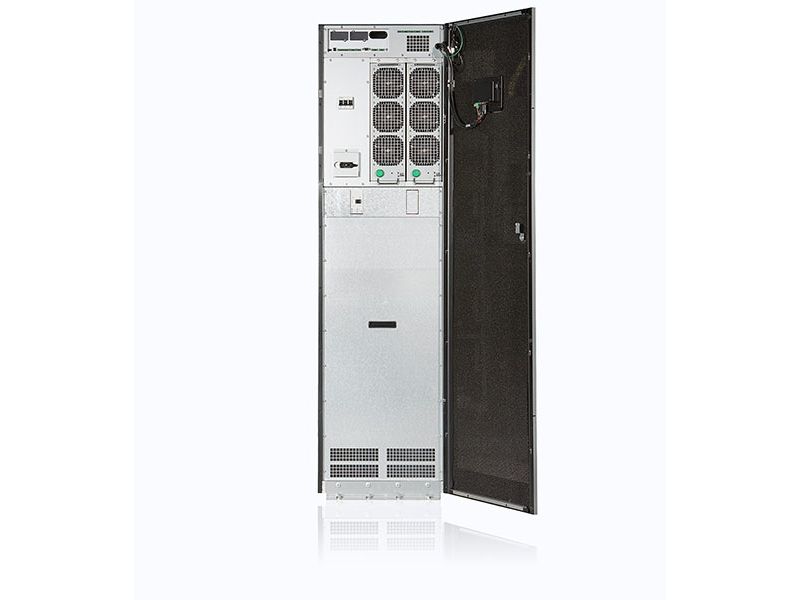

- Modular design allows internal redundancy (separate battery configuration also available)
Smallest footprint in the market
The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)
Unity power factor (1.0)
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional installments
Cloud & Virtualisation ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!
