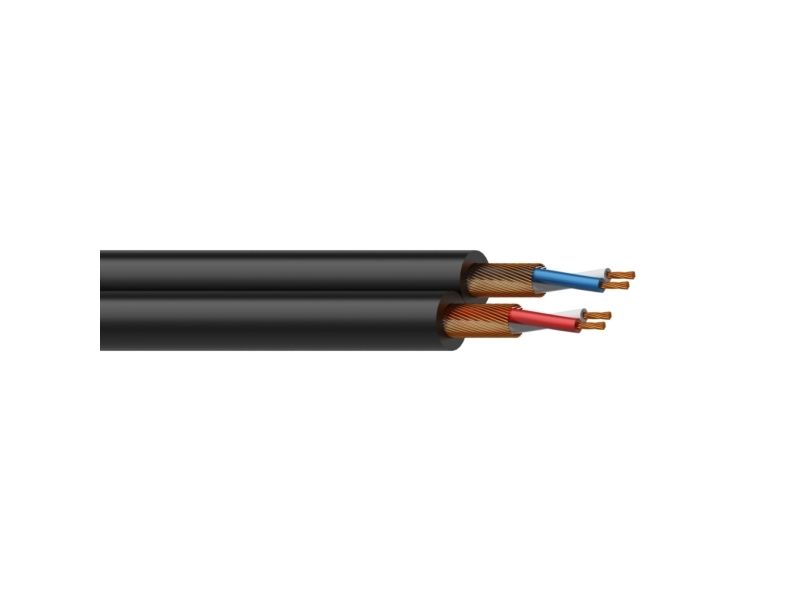

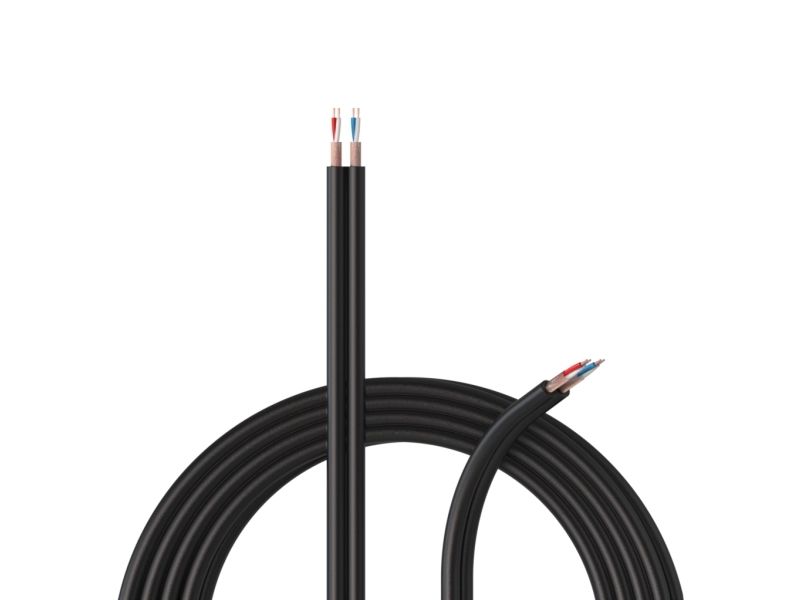

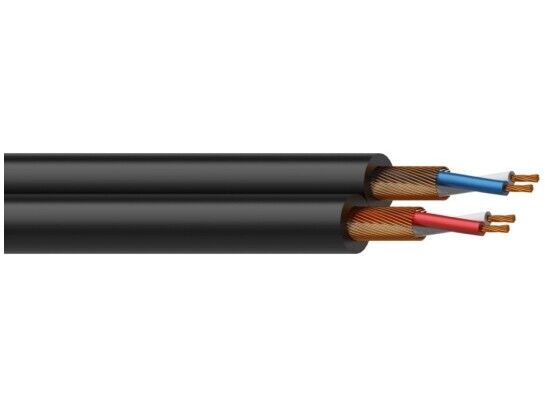

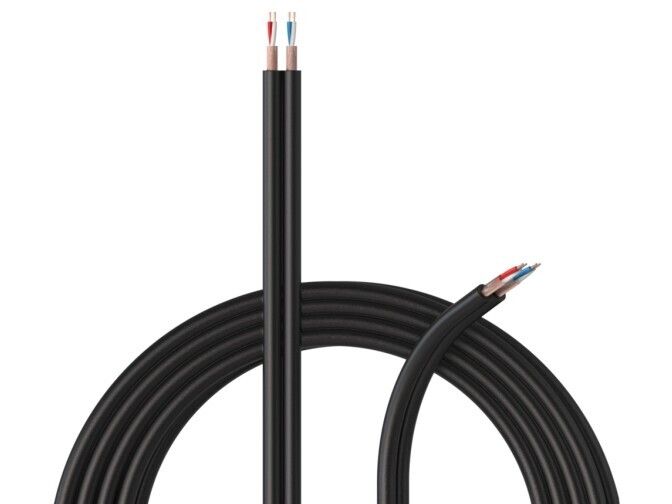

PROCAB SIG58/1, 100 m, 0,16 mm², Svart, PVC, 2 par, -40 - 80 °C

The SIG series cables are high quality signal cables for indoor, fixed or mobile applications. They have a PVC jacket and are very easy to handle. The inner conductors are fitted with a durable shielding.This gives an excellent protection against interference of all kinds such as electromagnetic fields produced by dimmers, electric motors or power cables. The SIG series cables are “all-round” signal cables which are suited for all kinds of applications where reliable signal transmission is needed.


Stranded copper
A stranded copper wire is more flexible and easier to install than a large single-strand wire with the same cross section. Stranding improves wire life in applications where flexibility is needed. A particular cross section of a stranded conductor gives it essentially the same resistance characteristics as a single-strand conductor, but with added flexibility.

Bare copper spiral
Bare copper spiral is even more flexible than a braided shielding. This type of shield is constructed by wrapping the shield material in one direction around the conductors. Spiral shields are most effective in the use of cable where audio signals are transmitted.
