Chauvin Arnoux P01120630
Varenr.: [3730085] | Producent: Chauvin Arnoux | Model-nr.: P01120630 | EAN: 3760171419168
Ikke på lager
Varen er ikke på lager.
Utsolgt
Varen er ikke på lager.
Leveringsalternativer - Klikk på et alternativ for å velge
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Posten Norge – Leveres til pakkeboks nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (4)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
6.800,00
eksklusiv MVA 5.440,00
Totalt inkl. frakt
6.800,00
Gi meg beskjed når varen er på lager igjen.
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail

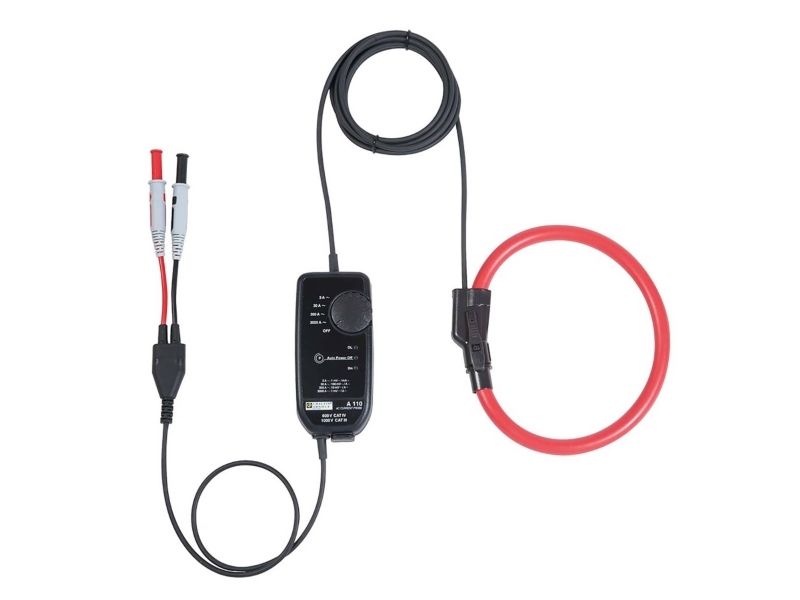

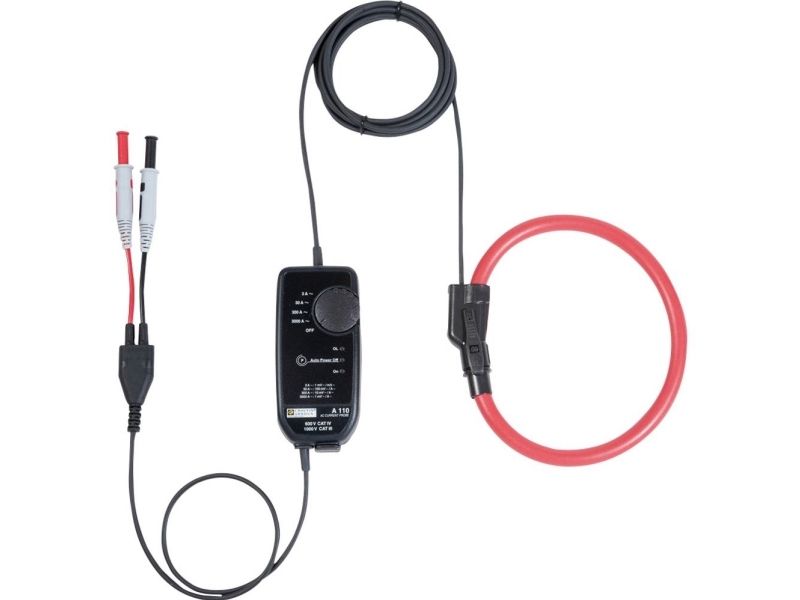

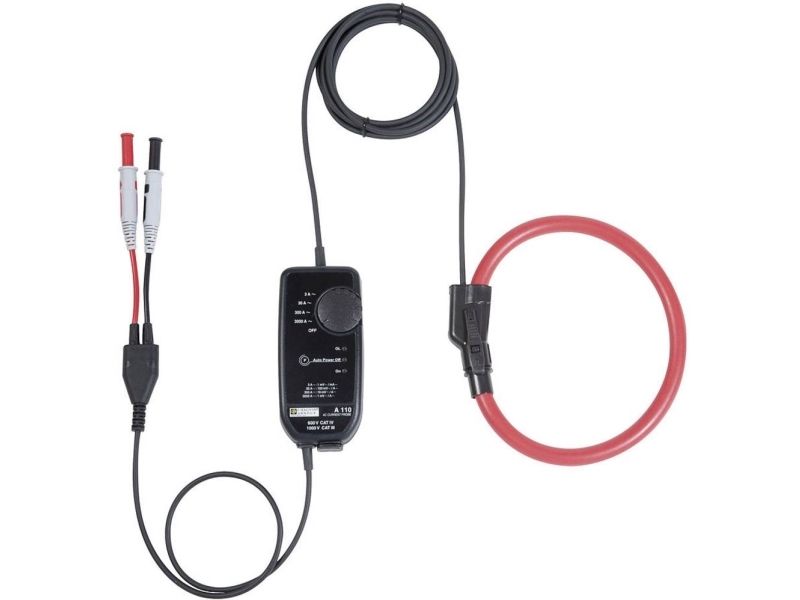

Chauvin Arnoux AmpFLEX?A110 Series Flexible Current Sensors
These compact, lightweight and ergonomic sensors of varying diameters are capable of clamping all types of conductors, whatever their number, dimensions or shape (bars, etc.). Due to their flexibility, they can be used in any location, however cramped. They are ideal for the requirements in both industry and the tertiary sector. Their quick and easy opening/closing system makes them simple to handle even when wearing safety gloves.
The AmpFlex?A110 Series comprises 3 flexible sensor models for direct connection to any multimeter, wattmeter or logger. These flexible coils offer the following major advantages:
Large measurement range
Bandwidth suitable for industrial frequencies and harmonic analysis
No saturation effect, so no overheating
Constant low phase shift appropriate for watt metric measurements
Features and Benefits
Measurement Range: 80 mA to 30 kA
4 calibres
Sensor Length (clamping diameter): 45 cm, 80 cm or 1.20 m (?14 cm, ?25 cm, ?38 cm)
Ingress protection of sensor/processing unit: IP67/IP54
Output Signal: AC voltage
Output via two-wire lead terminated by 2 x ? 4 mm straight male banana safety connectors
Power Supply: 2 x 1.5 V AA batteries or external ??USB type B 5 V
Battery Life: 300 hours
1000 V CAT IV
Single phase flexible current sensors
IP67
Supplied with
1 flexible current sensor, 2 x 1.5 V AA / LR6 alkaline batteries, 1 user manual in 5 languages, 1 safety datasheet and 1 verification certificate
These compact, lightweight and ergonomic sensors of varying diameters are capable of clamping all types of conductors, whatever their number, dimensions or shape (bars, etc.). Due to their flexibility, they can be used in any location, however cramped. They are ideal for the requirements in both industry and the tertiary sector. Their quick and easy opening/closing system makes them simple to handle even when wearing safety gloves.
The AmpFlex?A110 Series comprises 3 flexible sensor models for direct connection to any multimeter, wattmeter or logger. These flexible coils offer the following major advantages:
Large measurement range
Bandwidth suitable for industrial frequencies and harmonic analysis
No saturation effect, so no overheating
Constant low phase shift appropriate for watt metric measurements
Features and Benefits
Measurement Range: 80 mA to 30 kA
4 calibres
Sensor Length (clamping diameter): 45 cm, 80 cm or 1.20 m (?14 cm, ?25 cm, ?38 cm)
Ingress protection of sensor/processing unit: IP67/IP54
Output Signal: AC voltage
Output via two-wire lead terminated by 2 x ? 4 mm straight male banana safety connectors
Power Supply: 2 x 1.5 V AA batteries or external ??USB type B 5 V
Battery Life: 300 hours
1000 V CAT IV
Single phase flexible current sensors
IP67
Supplied with
1 flexible current sensor, 2 x 1.5 V AA / LR6 alkaline batteries, 1 user manual in 5 languages, 1 safety datasheet and 1 verification certificate
