PLANET FT-1205A - Fibermedieomformer - 10Base-T, 100Base-FX, 100Base-TX - SFP (mini-GBIC) / RJ-45
Varenr.: [3720192] | Producent: Planet Technology | Model-nr.: FT-1205A | EAN: 4016032304050
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Frakt 69,00 - Instabox - Velg din nærmeste pakkeboks.
Fraktprisen er basert på levering til dette postnummer: - Skift postnummer
Oppgi postnummer for levering.
Se alle alternativer
| Instabox - Velg din nærmeste pakkeboks | 69,00 |
| Bring - Hentes på Posten | 75,00 |
| PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden | 159,00 |
| Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer) | 224,00 |
NOK
534,00
eksklusiv MVA 427,20
Totalt inkl. frakt
603,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail

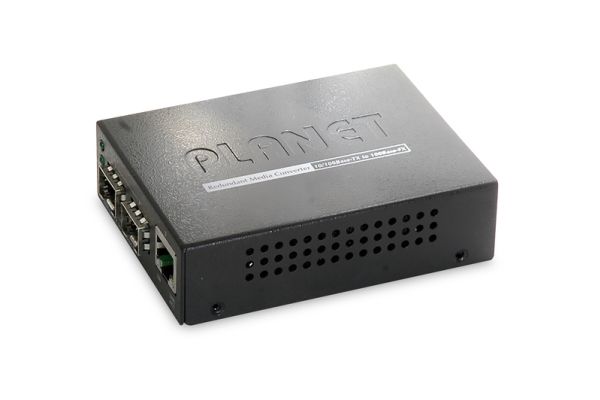

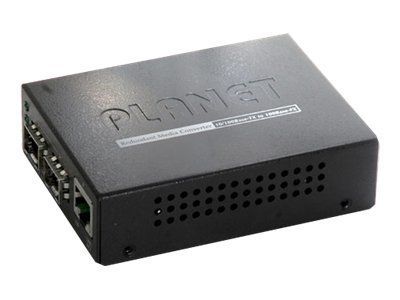

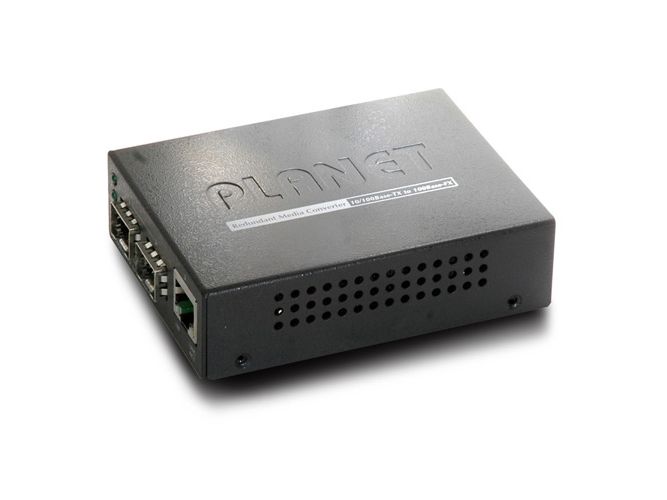

PLANET FT-1205A is a 3-port Redundant Media Converter which supports conversion between 10 / 100Base-TX and 100Base-FX network. The difference with the other one-port channel media converter is the Redundant Media Converter. It is designed for critical networks that require fibers or copper links to automatically recover less than 10ms, such as ISPs, telecoms, hospitals, banks and enterprises.
Via the built-in DIP switches, the converter can be configured as 3-port Ethernet switch or 2-port redundant media converter. With the 3-port switch mode, it can operate Store-and-Forward mechanism with high performance, and it can also prevent packet loss via IEEE 802.3x flow control (full-duplex) and back pressure (half-duplex).
With the 2-port redundant mode, it provides less than 10ms redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair.
The SFP slot supports single-mode, multi-mode and WDM small-form factory type transceiver modules for various applications. The FT-1205A is with high reliability and flexibility to extend the distance up to 2km, 20km or longer. It depends on the 100Base-FX SFP transceiver modules. The Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively.
The converters can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700, MC-1500, MC-1500R and MC-1500R48. As to the other PLANET media converters (FT series), they're hot swappable in MC chassis.
