EXSYS EX-1195HMS, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 5000 Mbit/s, Sort, Metall, Kraft indikator

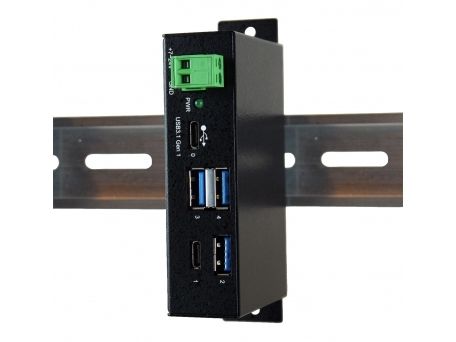

The EX-1195HMS is a USB 3.0/3.1(Gen1) Metal hub that complies with the Universal Serial Bus (USB) specification Revision 3.1(Gen1) and works up to 5Gbps. It provides one USB-C upstream port and 4 downstream facing ports with one USB-C and 3 USB-A connectors. The EX-1195HMS support 15KV ESD Surge protection for all ports. Port 1 support a full-featured USB-C female port. It is possible to connect up to four external USB 3.0 peripheral devices to one USB 3.0 port in a 19-inch rack. He can be used for automation– and office applications. The EX-1195HMS fulfils the special requirements of industrial applications.
- USB 3.0 HUB with one USB C– as well as three A-ports - 15KV ESD Surge protection - Support protection of devices against voltage fluctuation - Power from +7 up to +48V DC over terminal block - Easy installation with the included DIN-Rail Kit - Support 900mA USB Bus Power for each port - Support Fast USB Battery Charging: CDP and DCP modes - Support all USB 1.1 up to 3.0 compatible devices - Optional power over USB port +5 Volt (Bus-Power) - Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
Antall porter
4
Vertsgrensesnitt
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Grensesnitt (hub)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter
3
Antall USB 3.2 Gen 1 (3.1 Gen 1) Type-C-porter
2
Overføringshastighet (Mbps)
5000 Mbit/s
Produktfarge
Sort
Kroppsmateriale
Metall
Overspenningsvern
Ja
LED-indikatorer
Kraft indikator
Støttede Windows operativsystemer
Ja
Støttede Mac operativsystemer
Ja
Støttede Linux operativsystemer
Ja
Bredde
114,5 mm
Dybde
57,3 mm
Høyde
26,3 mm
Vekt
400 g
Kabler inkludert
USB
Bruksanvisning
Ja
Driftstemperatur (T-T)
0 - 55 °C
Driftstemperatur (T-T)
32 - 131 °F
Oppbevaringstemperaturomåde (Celsius)
20 - 85 °C
Relativ luftfuktighet under drift (H-H)
5 - 95%
Produktet har følgende varenummer i vårt system:
EAN:
4718359119521
SKU:
EX-1195HMS
