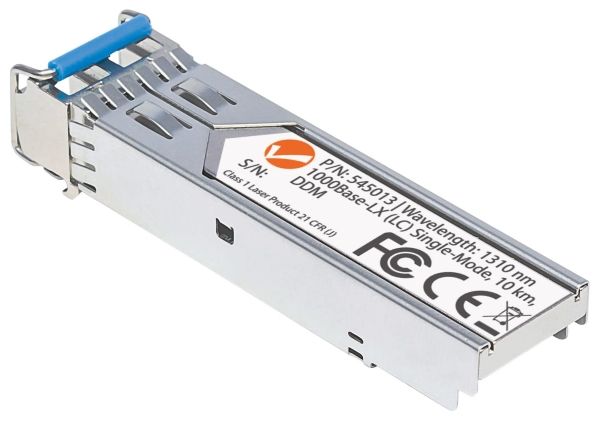

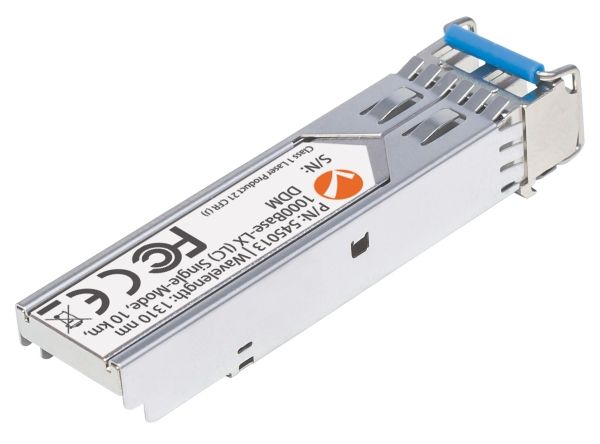

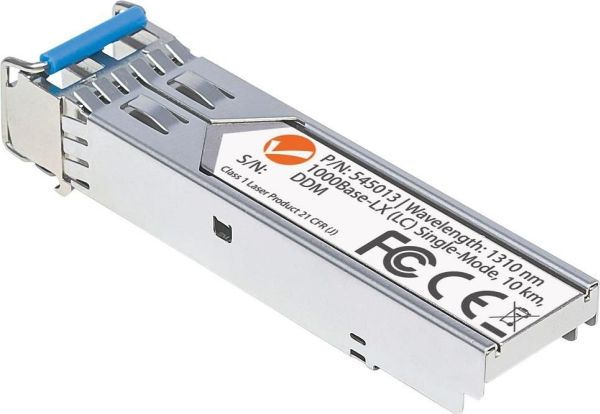

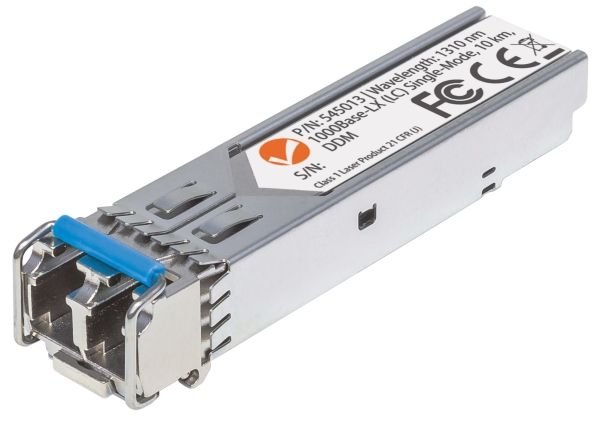

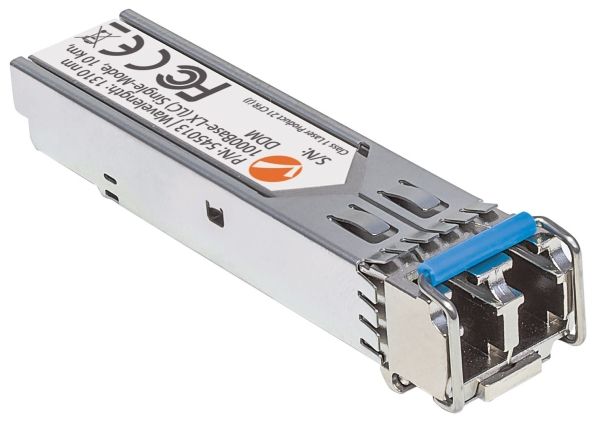

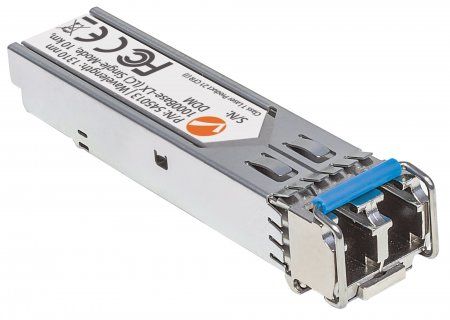

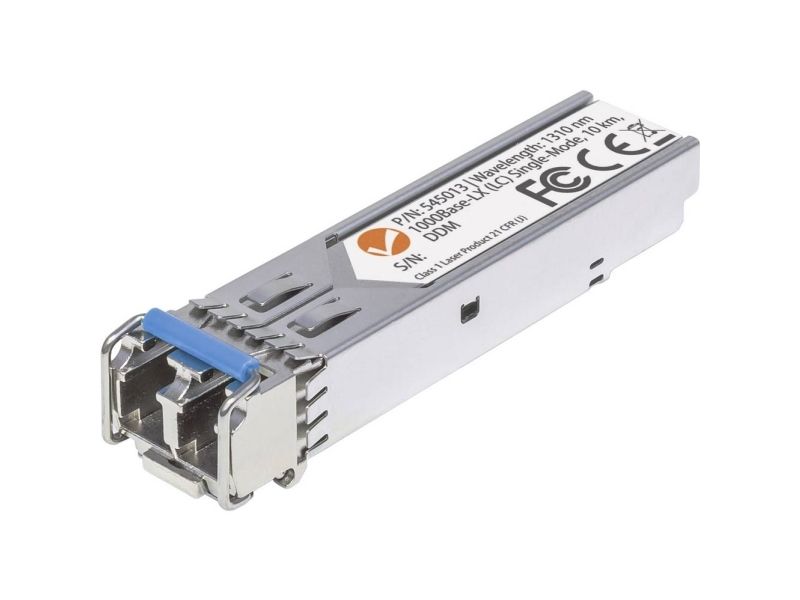

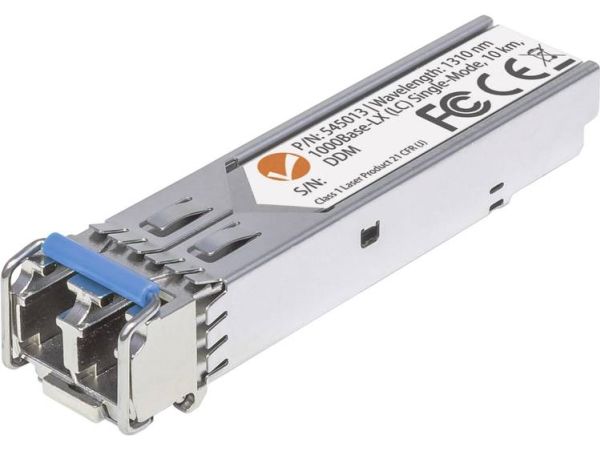

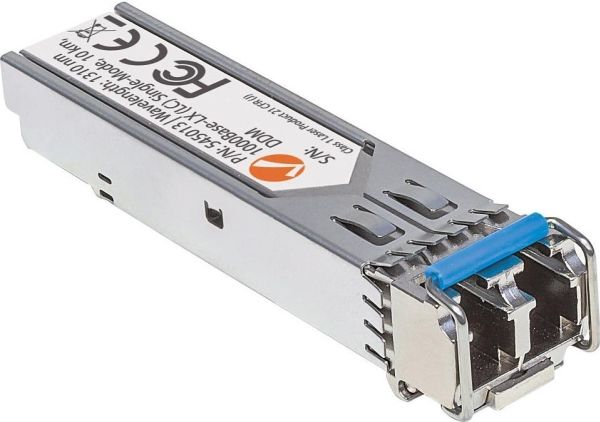

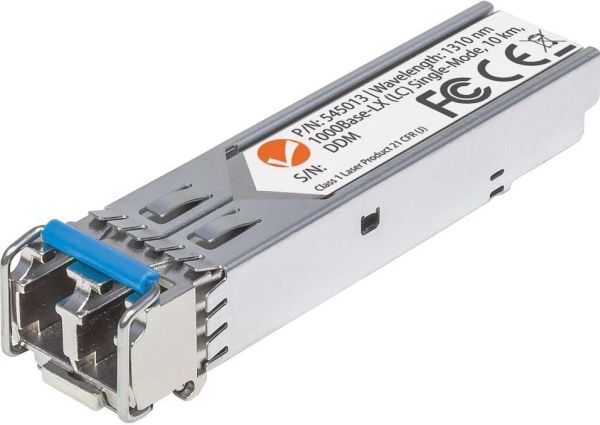

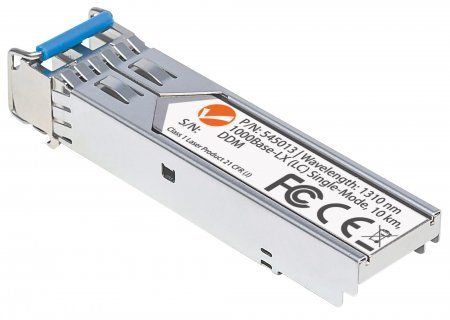

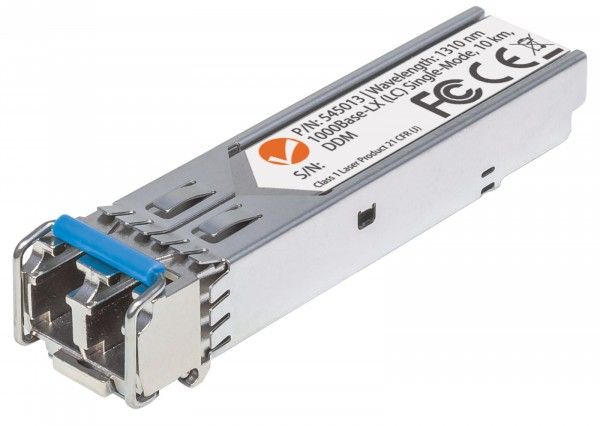

The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability.
Small Size for High-Density Fibre Connections The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room.
Compatibility Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545013) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-LH-SM, compatibility to your Cisco gear is provided.
Hot-Pluggable The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.
Digital Diagnostics Monitoring (DDM) The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
SFP-transceivertype
Fiber optisk
Maksimal dataoverføringshastighet
1000 Mbit/s
Type grensesnitt
SFP
Single-mode fiber (SMF) støttes
Ja
Fiberoptisk kontakt
LC
Fiberkabeldiametere som støttes
9/125 µm
Maksimal overføring avstand
10000 m
Bølgelengde
1310 nm
Tx effekt (min.)
8 dBmW
Tx effekt (maks.)
3 dBmW
Koblingsbudsjett
14 dB
Ethernet/bredbåndsforbindelse
Ja
Ethernet-grensesnittype
Gigabit Ethernet
Nettverksstandard
IEEE 802.3z
Tosidig system
Full
Produktfarge
Aluminium
Hot-plug-støtte
Ja
Inngangsspenning
3.3 V
Strømforbruk (vanlig bruk)
1 W
Samsvarssertifikat
CE, RoHS, Federal Communications Commission (FCC)
Sertifisering
FCC Class A, CE Mark
Driftstemperatur (T-T)
0 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
40 - 85 °C
Relativ luftfuktighet under drift (H-H)
10 - 85%
Bredde
14 mm
Dybde
57 mm
Høyde
12 mm
Vekt
18 g
Antall per pakke
1 stykker
Harmonisert system (HS)-kode
85369010
