InLine 57885P, Sender og Mottaker, Koblet med ledninger (ikke trådløs), 70 m, Cat6, Cat6a, 3840 x 2160 piksler, 60 Hz

Low-loss 4K transmission over long distances:HDMI image and sound signals are reliably transmitted at up to 18 Gb/s over a single RJ45 copper cable up to 70 m. 4K @ 60 Hz with full 4:4:4 colour resolution is supported.
Integrated KVM function for convenient remote control:Keyboard and mouse can be connected directly to the receiver. A remote computer system can thus be operated without additional USB extensions or separate KVM hardware.
Simplified installation thanks to Power over Cable:With PoC, only one of the two device units is actively supplied with power. This reduces installation effort and minimises additional power supplies at the point of use.
High compatibility for professional AV signals:Support for HDMI 2.0b, HDCP 2.2 and common HDR formats ensures stable signal transmission even with demanding video sources.
Robust design for continuous operation:The metal housing ensures high mechanical stability and supports reliable use in continuously operated AV and IT installations.

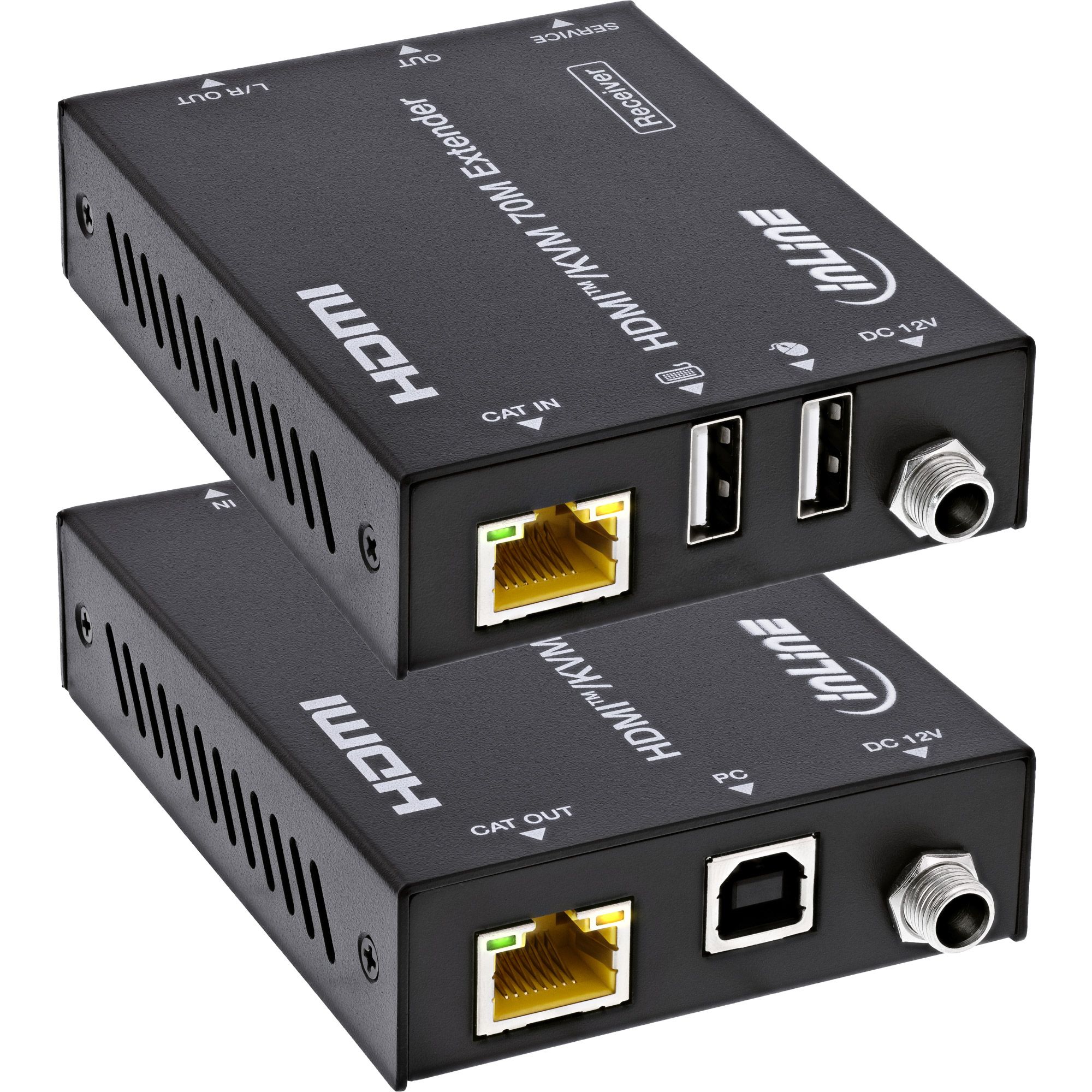

The InLine® HDMI Extender enables low-loss transmission of high-resolution HDMI image and sound signals via a single RJ45 copper cable. The direct point-to-point connection between transmitter and receiver allows transmission distances of up to 70 m and is ideal for installations where conventional HDMI cable lengths are insufficient.
Thanks to HDMI 2.0b and a maximum bandwidth of 18 Gb/s, resolutions up to 3840 x 2160 @ 60 Hz with full 4:4:4 colour resolution are supported. In addition, support for HDCP 2.2 and modern HDR formats ensures high compatibility with current signal sources and display devices.
An integrated KVM feature allows a keyboard and mouse to be connected to the receiver. This allows a remote computer system to be conveniently operated without the need for additional hardware or separate USB connections. The EDID copy function supports automatic and stable detection of the connected display.
The Power-over-Cable function means that only one device unit is actively supplied with power. This greatly simplifies installation and reduces cabling requirements. The robust metal housing and extensive range of connections make the extender a reliable solution for demanding AV and IT environments.
Technical specifications – Video

HDMI standard: HDMI 2.0b
Maximum bandwidth: 18 Gb/s
HDCP standard: HDCP 2.2
Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour depth: 8 / 10 / 12 bits
HDR formats: HDR, HDR10, HDR10+, Dolby Vision, HLG

Technical specifications – Audio
Supported audio formats:

LPCM
Dolby Digital
Dolby Digital Plus
Dolby TrueHD
Analogue audio output (receiver): Stereo L/R

Transmission

Transmission distance: up to 70 m via CAT6 / CAT6a
EDID function: EDID copy function (automatic display recognition)
Power over Cable (PoC): Power supply to a device unit via the network cable

Mechanical and environmental data

Housing material: Metal
Colour: Black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90%, non-condensing
Maximum power consumption: 4.2 W

Power supply (external)

Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average operating efficiency (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%

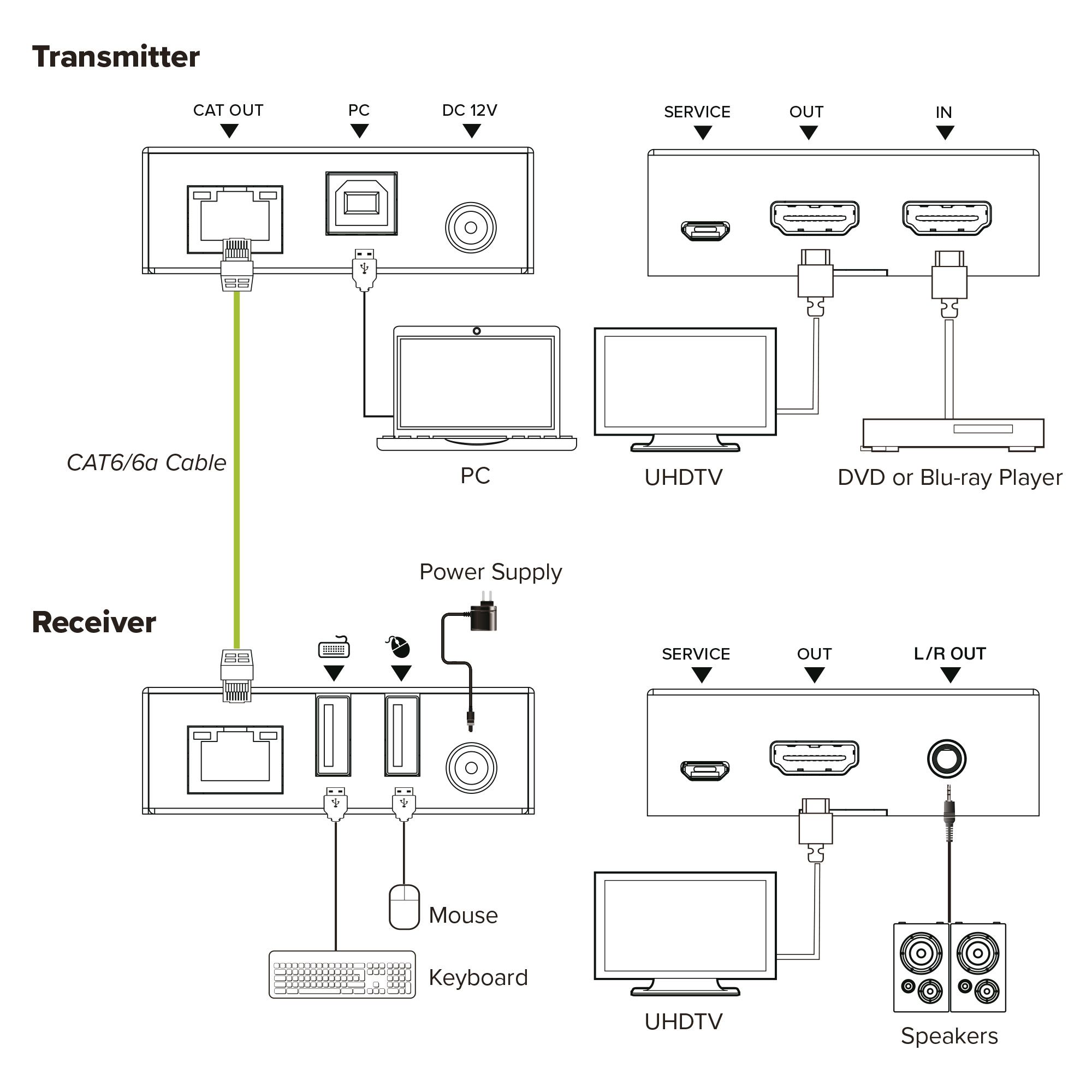

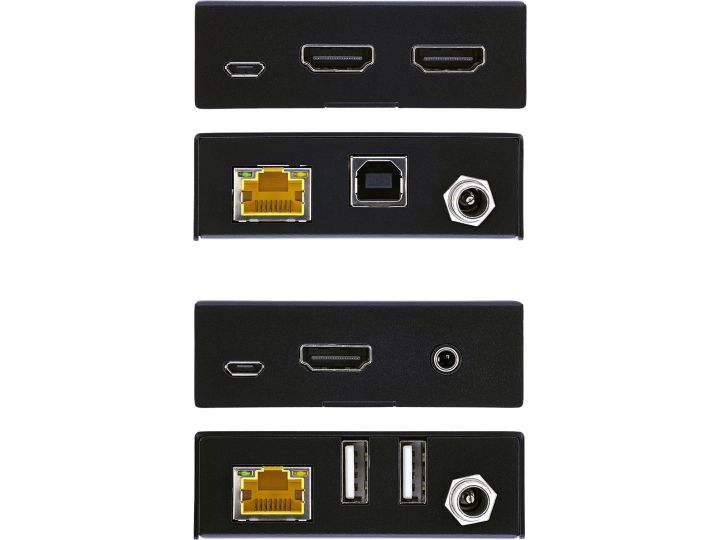

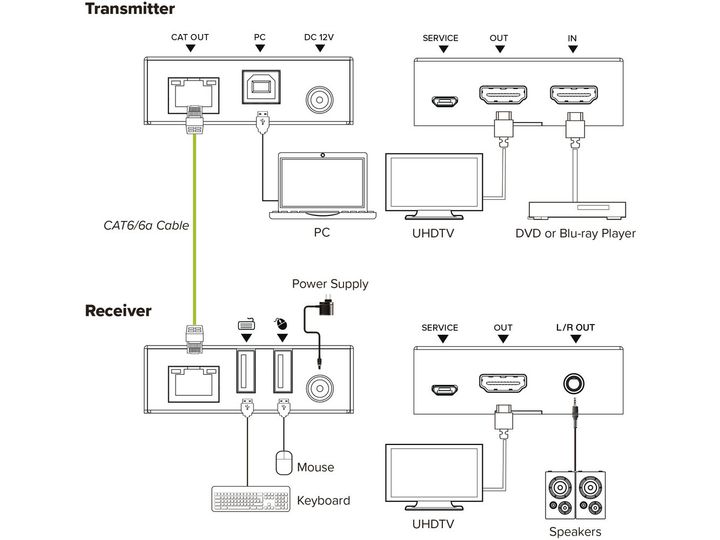

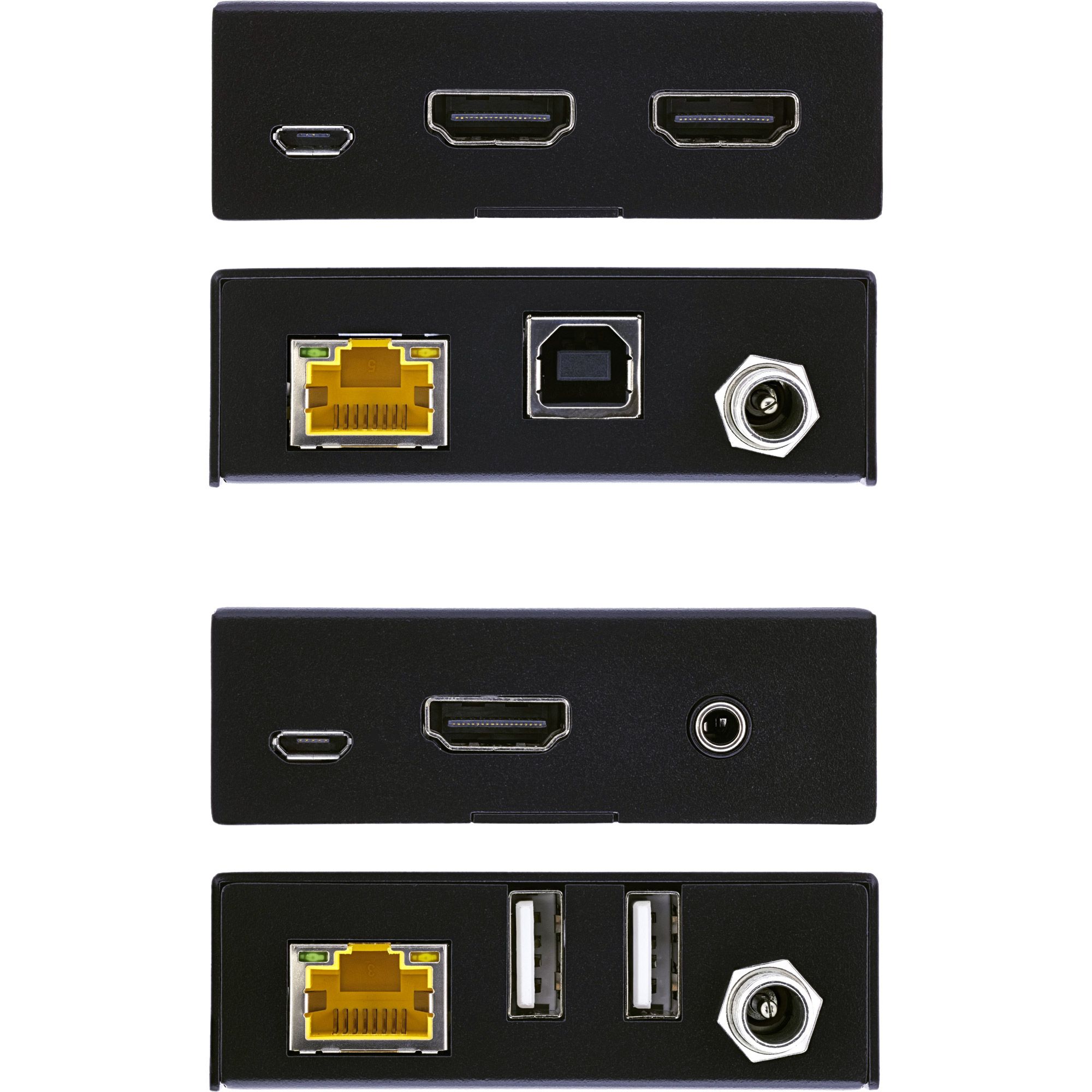

Connections

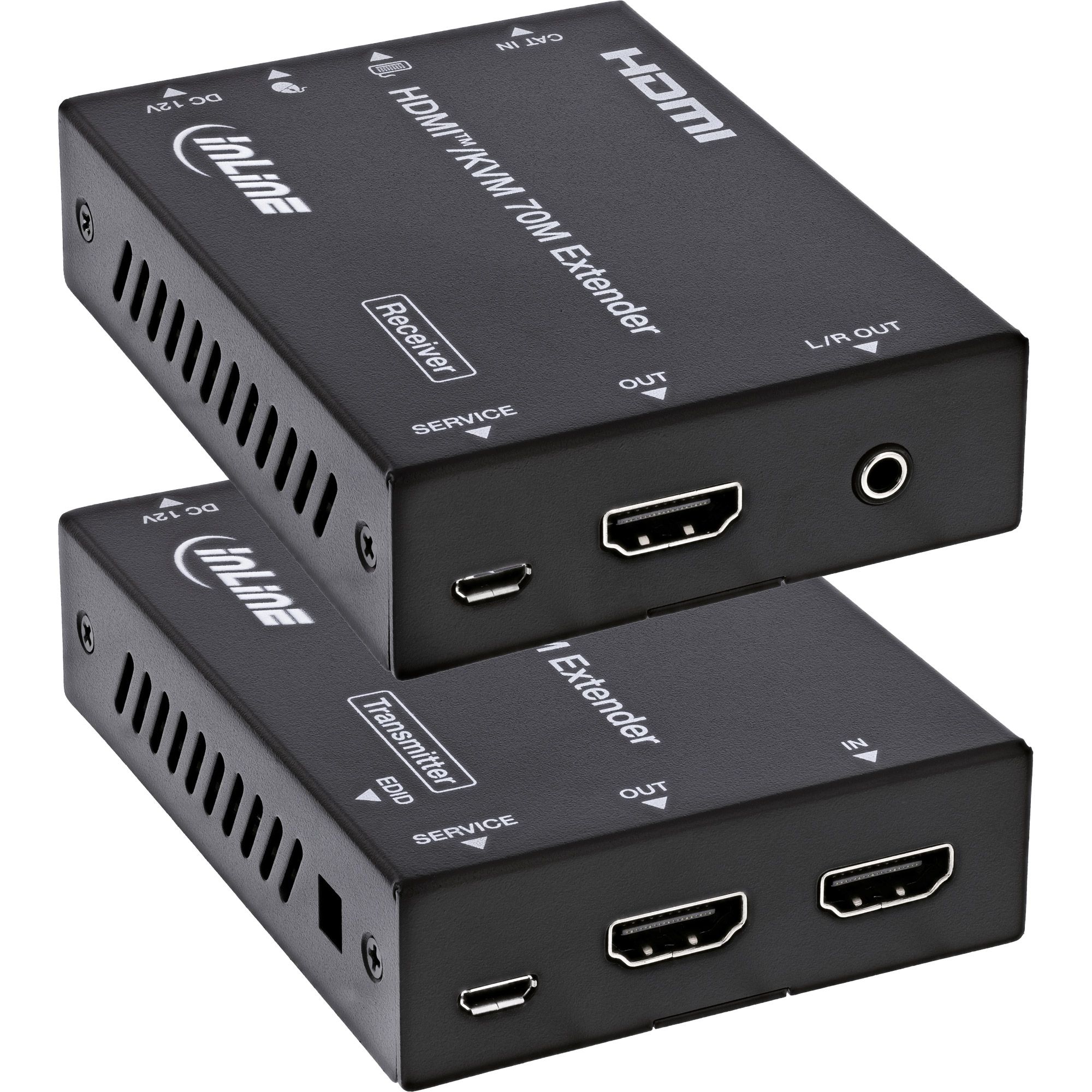

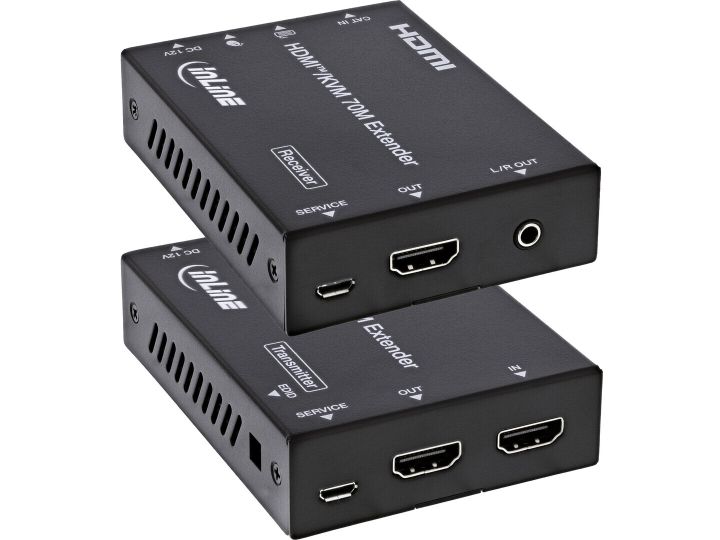

Transmitter

HDMI input: HDMI IN
HDMI output: HDMI OUT (loop-out)
Network connection: RJ45 (CAT OUT)
USB connection: USB-B (KVM)
Service connection: Micro USB
Power supply: DC 12 V

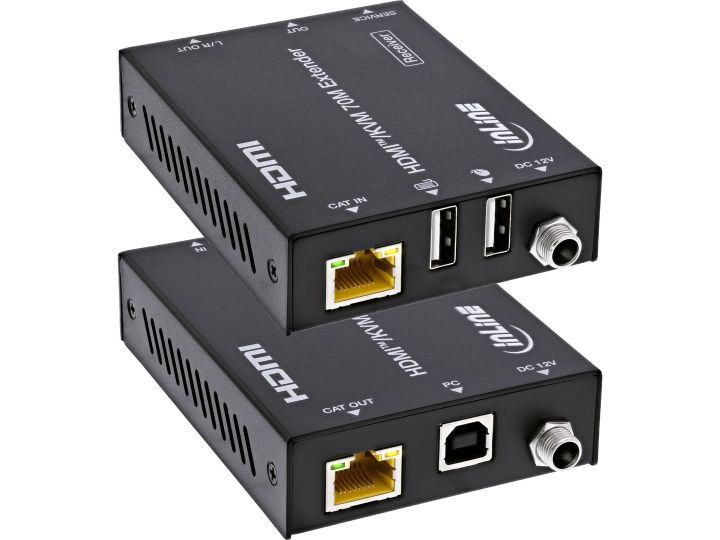

Receiver

Network connection: RJ45 (CAT IN)
HDMI output: HDMI OUT
Audio output: L/R stereo
USB connections: 2 x USB-A (keyboard / mouse)
Service connection: Micro USB
Power supply: DC 12 V

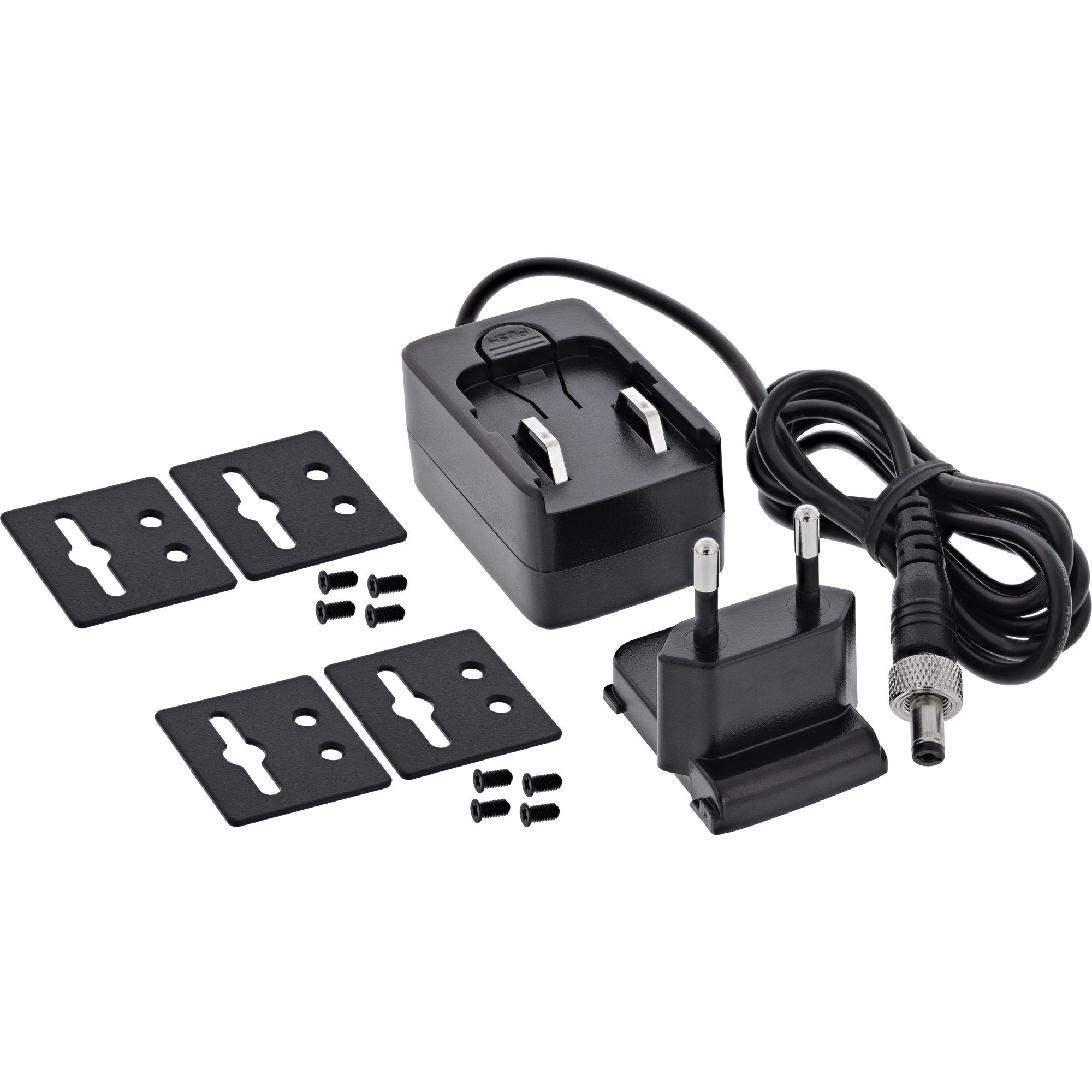

Scope of delivery

1 x HDMI extender – transmitter
1 x HDMI extender – receiver

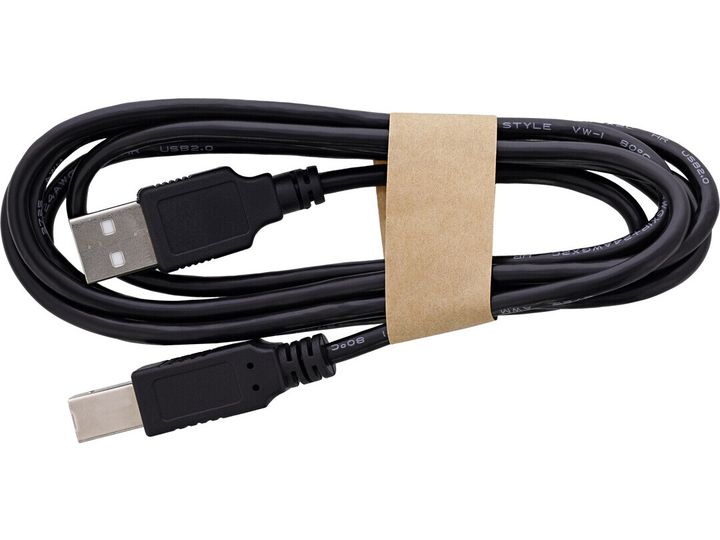

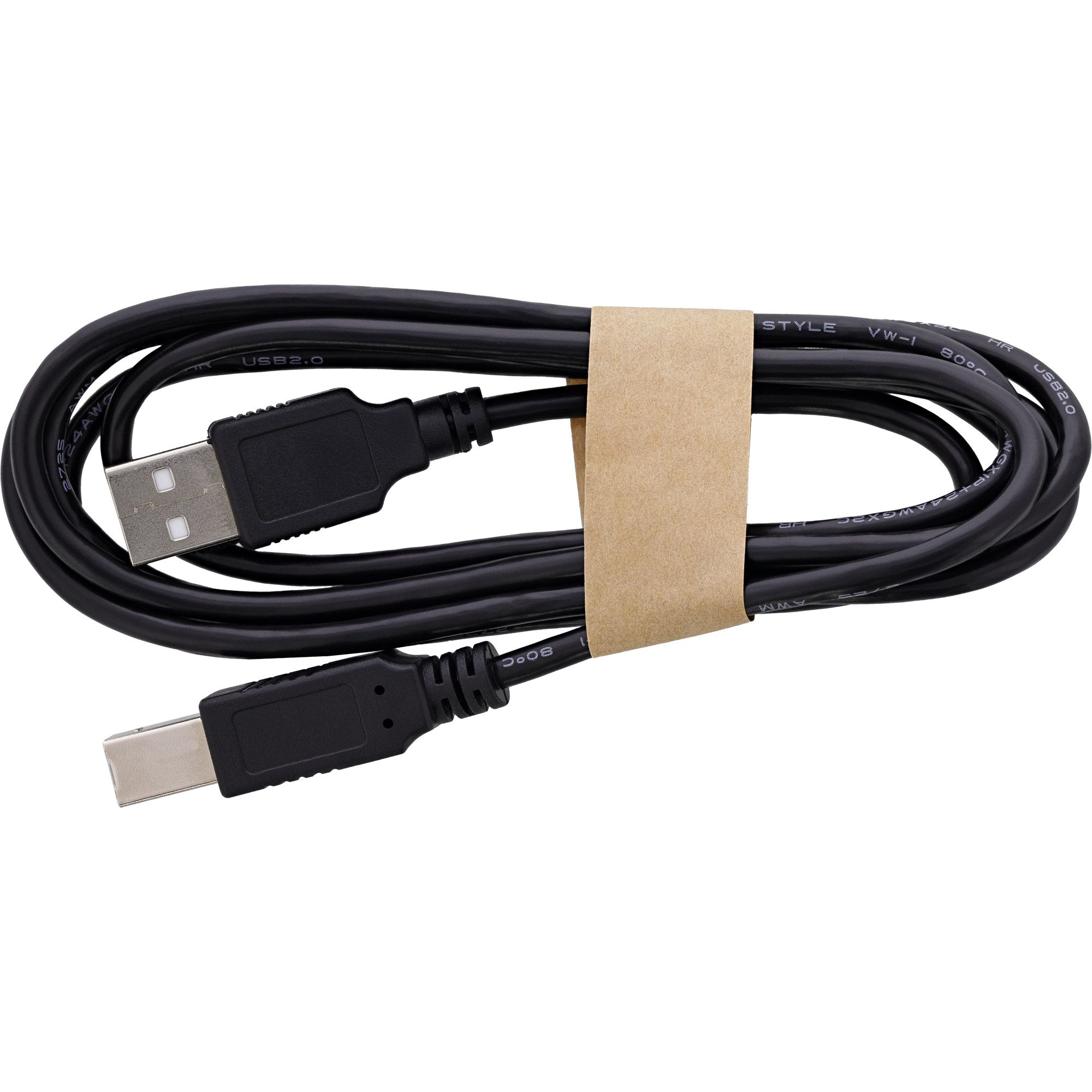

1 x USB cable (USB-A to USB-B, 1.5 m)

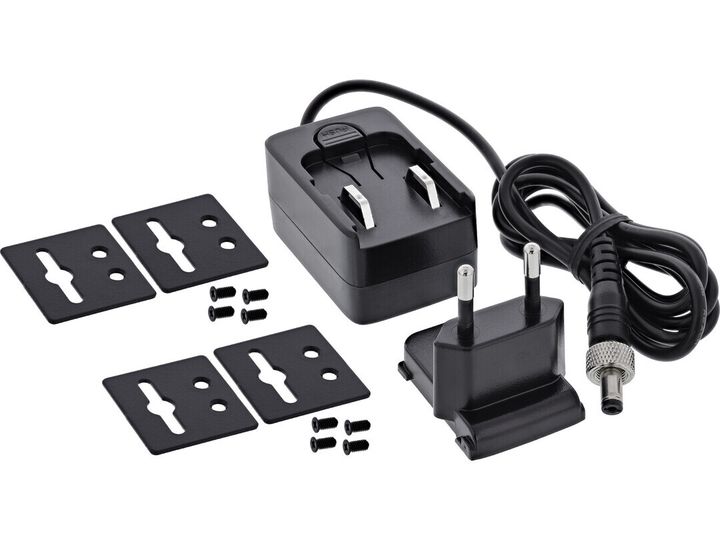

4 x mounting brackets
8 x screws (M3 x 4)
1 x power supply unit (DC 12.0 V / 1.0 A, lockable)
1 x operating instructions (German / English)
