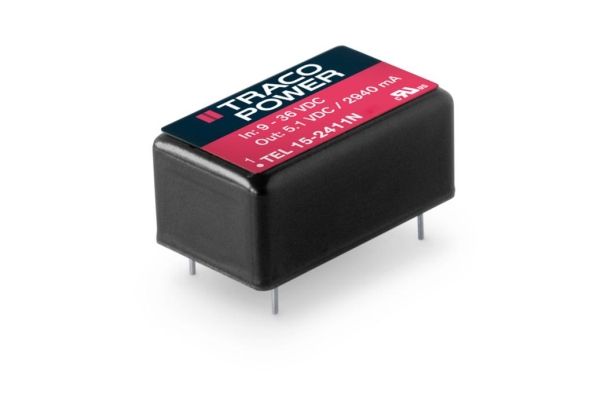

Traco Power TEL 15-2411WIN, 13,7 mm, 10,2 mm, 23,8 mm, 8,8 g, 15 W, 18 - 36 V

Varenr.: [25459577] | Producent: TracoPower | Model-nr.: TEL 15-2411WIN | EAN: 2050011923131
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Klikk på et alternativ for å velge
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering. Lagre
NOK 703,00
eksklusiv MVA 562,40
Totalt inkl. frakt 762,00
Les ytterligere spesifikasjoner og beskrivelse.
The TEL 15N is a series of isolated 15 Watt converters which come in an ultra compact DIP-16 metal package. The design purpose of this series was to miniaturized low power DC/DC converters to the maximum without sacrificing high efficiency. It solidifies the new standard for power density with 4.51 W/cm3 and effectively doubles the power density compared to 15 Watt converters in DIP-24 packages. The TEL 15N offers a wide 2:1 input voltage range and features a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.
