InLine 32335X, Fiber optisk, 100 Mbit/s, SFP, LC, FX, 10000 m
Varenr.: [24581912] | Producent: Inline | Model-nr.: 32335X | EAN: 4043718345168
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Bring – Leveres til pakkeboks nær deg
59,00
Bring – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
265,00
eksklusiv MVA 212,00
Totalt inkl. frakt
324,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Long range for single-mode connections:Supports fibre optic distances of up to 10 km – ideal for site networking or building connections.
100BASE-FX standard for reliable communication:Transmits data at 100 Mb/s – proven for industrial and network applications.
1310 nm FP laser technology:Ensures stable transmission and high signal quality over long distances.
MSA-compliant for easy integration:Compatible with all devices that support SFP according to SFF-8472.
Hot-plug capable for uninterrupted installation:Can be installed and removed during operation – no network interruption required.

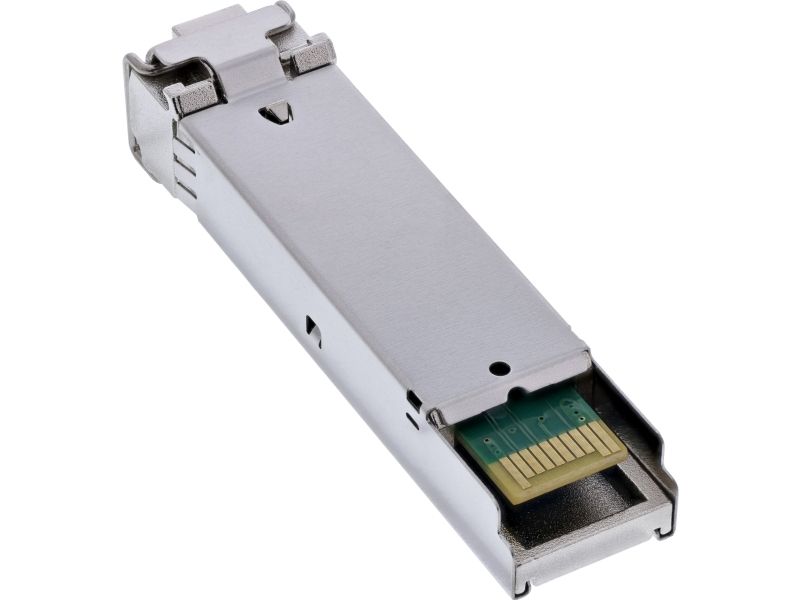

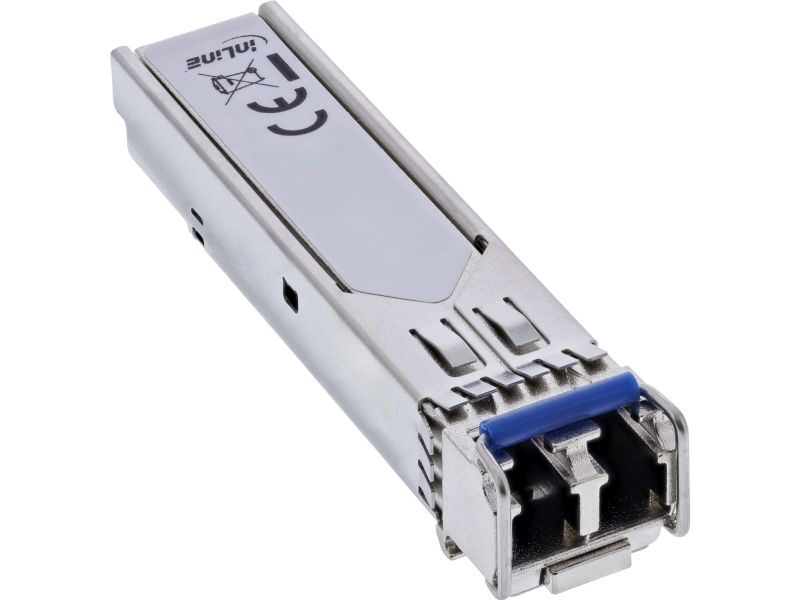

The InLine® SFP Module 32335X is the optimal solution for fibre optic connections in the 100BASE-FX standard over longer distances. With a range of up to 10 km on single-mode fibre and a stable data rate of 100 Mb/s, this module offers reliable connectivity for professional applications – e.g. in industrial plants, corporate networks or for site connections.
The transceiver uses a 1310 nm FP laser and a PIN receiver with TIA amplifier for clean optical signal transmission. Hot-plug capability allows quick and easy installation or replacement during operation – without restarting the system.
The module complies with the MSA SFF-8472 standard and ITU-T G.957 and can therefore be used in a wide range of SFP slots. The LC duplex connection provides a compact and reliable plug connection – ideal for structured fibre optic infrastructures.
Form factor: SFP (Small Form Factor Pluggable)
Transmission rate: 100 Mb/s (100BASE-FX)
Fibre type: Single mode
Range: up to 10 km
Transmitter wavelength: 1310 nm FP
Receiver wavelength: 1260–1620 nm
Connection: LC duplex
Compatibility: MSA SFF-8472, ITU-T G.957
Laser class: Class 1, IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5 %
Current consumption: max. 300 mA
Power consumption: max. 1.0 W
Operating temperature: 0 °C to +70 °C
Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
100BASE-FX standard for reliable communication:Transmits data at 100 Mb/s – proven for industrial and network applications.
1310 nm FP laser technology:Ensures stable transmission and high signal quality over long distances.
MSA-compliant for easy integration:Compatible with all devices that support SFP according to SFF-8472.
Hot-plug capable for uninterrupted installation:Can be installed and removed during operation – no network interruption required.
The InLine® SFP Module 32335X is the optimal solution for fibre optic connections in the 100BASE-FX standard over longer distances. With a range of up to 10 km on single-mode fibre and a stable data rate of 100 Mb/s, this module offers reliable connectivity for professional applications – e.g. in industrial plants, corporate networks or for site connections.
The transceiver uses a 1310 nm FP laser and a PIN receiver with TIA amplifier for clean optical signal transmission. Hot-plug capability allows quick and easy installation or replacement during operation – without restarting the system.
The module complies with the MSA SFF-8472 standard and ITU-T G.957 and can therefore be used in a wide range of SFP slots. The LC duplex connection provides a compact and reliable plug connection – ideal for structured fibre optic infrastructures.
Form factor: SFP (Small Form Factor Pluggable)
Transmission rate: 100 Mb/s (100BASE-FX)
Fibre type: Single mode
Range: up to 10 km
Transmitter wavelength: 1310 nm FP
Receiver wavelength: 1260–1620 nm
Connection: LC duplex
Compatibility: MSA SFF-8472, ITU-T G.957
Laser class: Class 1, IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5 %
Current consumption: max. 300 mA
Power consumption: max. 1.0 W
Operating temperature: 0 °C to +70 °C
Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
