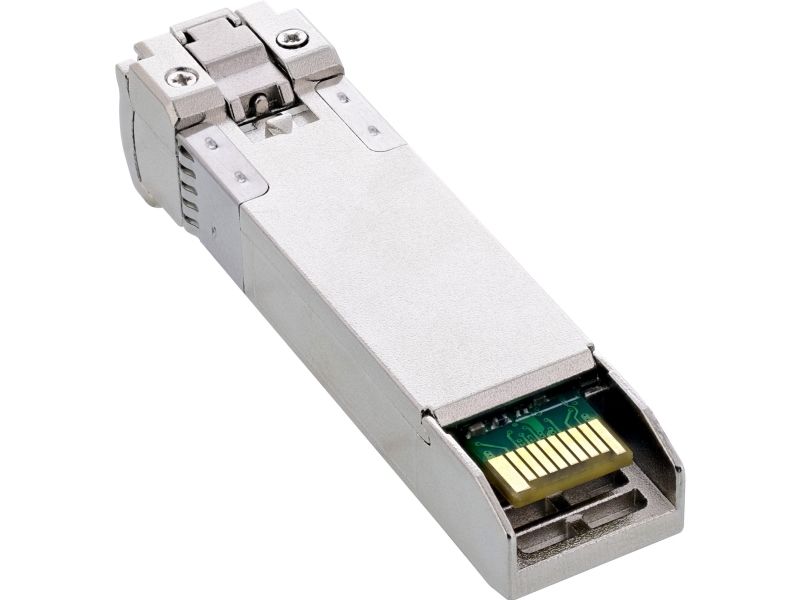

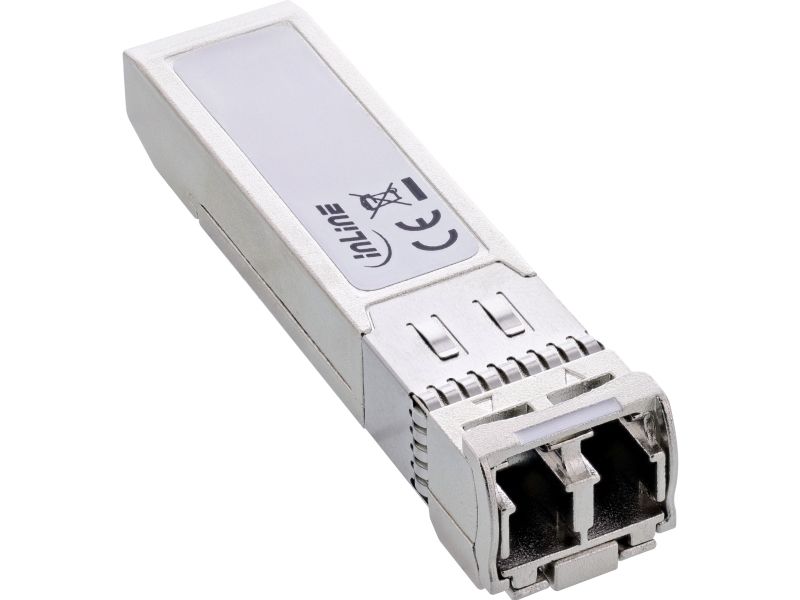

InLine 32335U, Fiberoptikk, 10312,5 Mbit/s, SFP+, LC, 100000 m, 1550 nm
Varenr.: [24581909] | Producent: Inline | Model-nr.: 32335U | EAN: 4043718345137
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
3.974,00
eksklusiv MVA 3.179,20
Totalt inkl. frakt
3.974,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
10 Gb/s full duplex data rate:For demanding fibre optic infrastructures with high bandwidth and speed.
Range up to 100 km:Ideal for long-distance networking via single-mode fibres in backbone, industrial or carrier networks.
1550 nm FMI laser with high output power:Robust connection even with high attenuation or difficult route conditions.
APD receiver & DDM monitoring:Precise reception evaluation and monitoring of all operating parameters for reliable diagnostics.
MSA-compliant & hot-plug capable:Maximum flexibility in installation, maintenance and device compatibility.
The InLine® SFP+ Module 32335U has been designed for the most demanding requirements in fibre optic infrastructures. With a range of up to 100 km on single-mode fibres and a transmission rate of 10 Gb/s, it meets the technical requirements of backbone links, long-distance lines and wide-area site networking.
The 1550 nm FMI laser ensures powerful signal transmission, while the APD receiver with TIA amplification can reliably process even weak input signals. This makes the module particularly suitable for environments with high attenuation.
Digital Diagnostic Monitoring (DDM) allows detailed evaluation of temperature, supply voltage, laser current and reception level – an important factor for network analysis and predictive maintenance.
Thanks to the MSA standard (SFF-8472, SFF-8431), the module can be used independently of the manufacturer and can be replaced during operation thanks to hot-plug capability – for maximum flexibility and reliability.
Form factor: SFP+ module
Standard: 10GBASE (IEEE 802.3ae)
Transmission rate: up to 10.3125 Gb/s
Fibre type: single mode
Range: up to 100 km
Transmitter: 1550 nm FMI laser
Receiver: APD + TIA (1260–1620 nm)
Power budget: +5 to –25 dBm
Extinction ratio: typ. 8.2 dB
Connection: LC duplex
DDM monitoring: Yes
Hot-plug capable: Yes
Voltage: 3.3 V ±5%
Current consumption: max. 610 mA
Power consumption: < 2 W
Operating temperature: 0 °C to +70 °C
MSA SFF-8472, SFF-8431 compliant
Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
Range up to 100 km:Ideal for long-distance networking via single-mode fibres in backbone, industrial or carrier networks.
1550 nm FMI laser with high output power:Robust connection even with high attenuation or difficult route conditions.
APD receiver & DDM monitoring:Precise reception evaluation and monitoring of all operating parameters for reliable diagnostics.
MSA-compliant & hot-plug capable:Maximum flexibility in installation, maintenance and device compatibility.
The InLine® SFP+ Module 32335U has been designed for the most demanding requirements in fibre optic infrastructures. With a range of up to 100 km on single-mode fibres and a transmission rate of 10 Gb/s, it meets the technical requirements of backbone links, long-distance lines and wide-area site networking.
The 1550 nm FMI laser ensures powerful signal transmission, while the APD receiver with TIA amplification can reliably process even weak input signals. This makes the module particularly suitable for environments with high attenuation.
Digital Diagnostic Monitoring (DDM) allows detailed evaluation of temperature, supply voltage, laser current and reception level – an important factor for network analysis and predictive maintenance.
Thanks to the MSA standard (SFF-8472, SFF-8431), the module can be used independently of the manufacturer and can be replaced during operation thanks to hot-plug capability – for maximum flexibility and reliability.
Form factor: SFP+ module
Standard: 10GBASE (IEEE 802.3ae)
Transmission rate: up to 10.3125 Gb/s
Fibre type: single mode
Range: up to 100 km
Transmitter: 1550 nm FMI laser
Receiver: APD + TIA (1260–1620 nm)
Power budget: +5 to –25 dBm
Extinction ratio: typ. 8.2 dB
Connection: LC duplex
DDM monitoring: Yes
Hot-plug capable: Yes
Voltage: 3.3 V ±5%
Current consumption: max. 610 mA
Power consumption: < 2 W
Operating temperature: 0 °C to +70 °C
MSA SFF-8472, SFF-8431 compliant
Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
