InLine 32335J, Fiber optisk, 2500 Mbit/s, SFP, LC, LX, 80000 m
Varenr.: [24581906] | Producent: Inline | Model-nr.: 32335J | EAN: 4043718345106
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Bring – Leveres til pakkeboks nær deg
59,00
Bring – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
550,00
eksklusiv MVA 440,00
Totalt inkl. frakt
609,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Excellent range for fibre optic connections:With a range of up to 80 km, the module is ideal for large-scale network structures and long-distance applications.
High compatibility thanks to MSA standard:Supports the Multi-Source Agreement (MSA) standard for flexible integration into existing SFP slots of common network devices.
Stable data transmission at 2.5 Gb/s:Optimised for reliable and high-performance transmission on single-mode fibre optic cables in the 1550 nm wavelength range.
Easy integration thanks to LC duplex connection:The LC connector enables fast and secure connection with minimal space requirements.
Hot-plug capable for uninterrupted installation:Replacement or integration during operation without system restart possible.

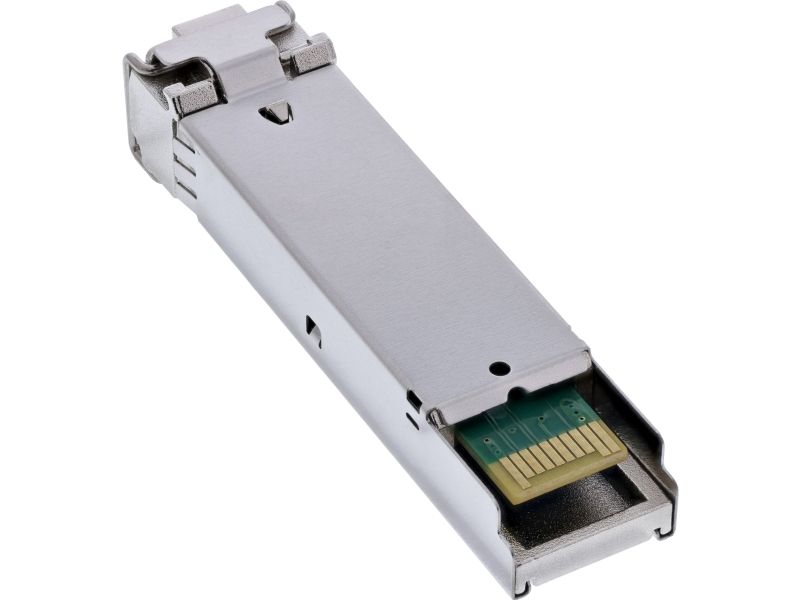

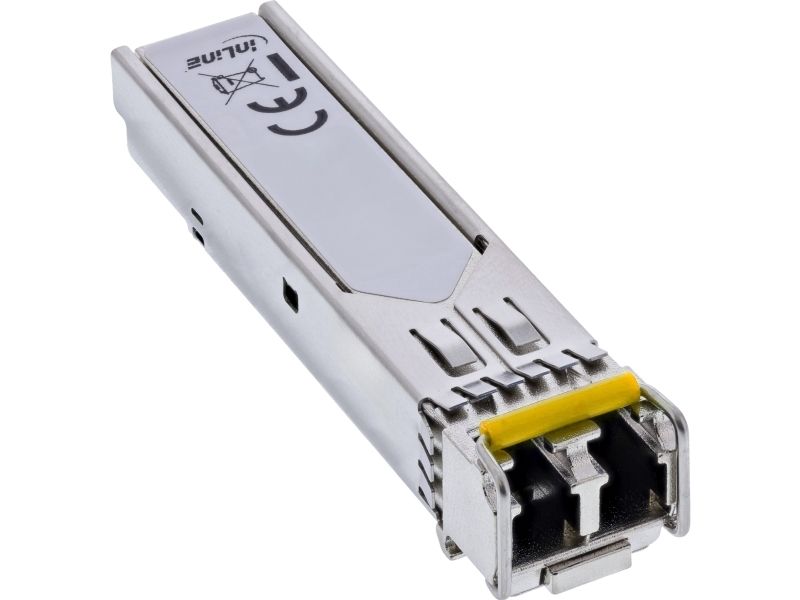

The InLine® SFP Module 32335J is a powerful 2.5G 1550nm LX transceiver for use in professional fibre optic applications over single-mode fibres. With a transmission distance of up to 80 km, the module offers a reliable solution for long-distance connections, such as those found in data centres, campus networks or telecommunications infrastructures.
The transceiver is MSA-compliant and supports the SFP form factor according to SFF-8472. It is suitable for applications such as STM-16, SDH/SONET, ATM switches or fibre channel connections. The combination of LC duplex connection, hot-plug capability and industrial temperature range from 0°C to 70°C enables flexible and robust integration into existing systems.
Thanks to 1550 nm DFB laser technology and an integrated APD TIA receiver unit, the module ensures stable and powerful data transmission at up to 2.5 Gb/s – ideal for companies that depend on high availability and long distances.
Form factor: SFP (Small Form Factor Pluggable)
Transmitter wavelength: 1550 nm
Receiver wavelength: 1260–1610 nm
Compatibility: SFF-8472, MSA
Laser class: Class 1, according to IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5%
Operating temperature: 0 °C to +70 °C
Current consumption: max. 300 mA
Compatible applications: STM-16, Fibre Channel, SDH/SONET, ATM
Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
High compatibility thanks to MSA standard:Supports the Multi-Source Agreement (MSA) standard for flexible integration into existing SFP slots of common network devices.
Stable data transmission at 2.5 Gb/s:Optimised for reliable and high-performance transmission on single-mode fibre optic cables in the 1550 nm wavelength range.
Easy integration thanks to LC duplex connection:The LC connector enables fast and secure connection with minimal space requirements.
Hot-plug capable for uninterrupted installation:Replacement or integration during operation without system restart possible.
The InLine® SFP Module 32335J is a powerful 2.5G 1550nm LX transceiver for use in professional fibre optic applications over single-mode fibres. With a transmission distance of up to 80 km, the module offers a reliable solution for long-distance connections, such as those found in data centres, campus networks or telecommunications infrastructures.
The transceiver is MSA-compliant and supports the SFP form factor according to SFF-8472. It is suitable for applications such as STM-16, SDH/SONET, ATM switches or fibre channel connections. The combination of LC duplex connection, hot-plug capability and industrial temperature range from 0°C to 70°C enables flexible and robust integration into existing systems.
Thanks to 1550 nm DFB laser technology and an integrated APD TIA receiver unit, the module ensures stable and powerful data transmission at up to 2.5 Gb/s – ideal for companies that depend on high availability and long distances.
Form factor: SFP (Small Form Factor Pluggable)
Transmitter wavelength: 1550 nm
Receiver wavelength: 1260–1610 nm
Compatibility: SFF-8472, MSA
Laser class: Class 1, according to IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5%
Operating temperature: 0 °C to +70 °C
Current consumption: max. 300 mA
Compatible applications: STM-16, Fibre Channel, SDH/SONET, ATM
Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
