InLine SFP-modul fiberoptisk ZX 1550 nm singlemode med LC-kontakter - 80 km - 1,25 Gb/s (32335F)

Extra-long range of up to 80 km:For long-distance connections, carrier-grade networks and cross-site network infrastructures.
Gigabit data transmission with 1000BASE-ZX:Ideal for professional applications with high demands on distance and stability.
1550 nm DFB laser technology:For precise, interference-free transmission via single-mode fibres.
LC duplex connection & hot plug:Space-saving, flexible and can be integrated without interrupting operation.
MSA and IEEE 802.3z compliant:Compatible with numerous switches, media converters and fibre optic components.

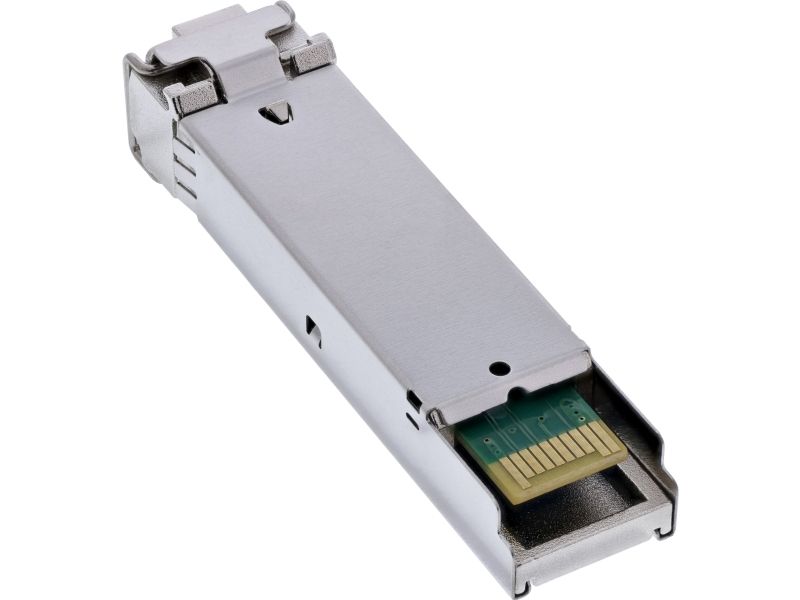

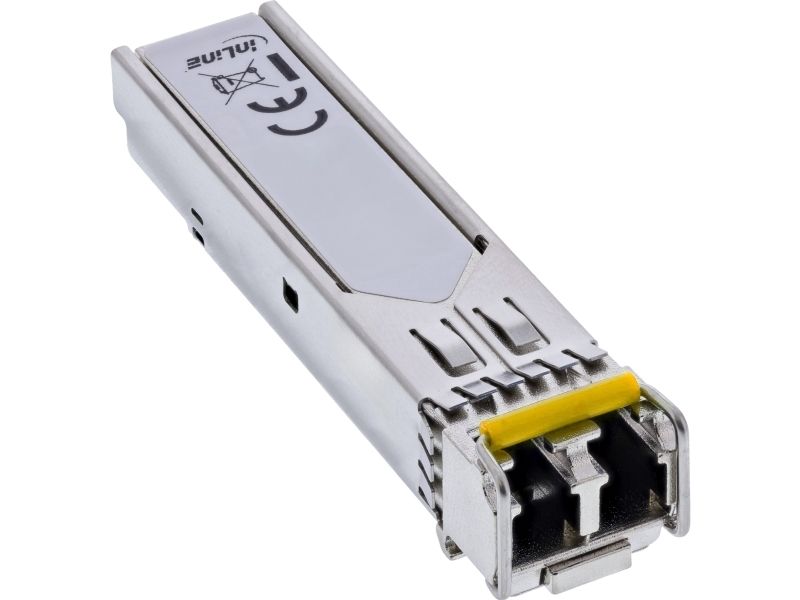

The InLine® SFP Module 32335F is a high-range 1000BASE-ZX transceiver for demanding fibre optic applications. It operates with a DFB laser at 1550 nm and provides a reliable 1.25 Gb/s Gigabit connection over single-mode fibres with a length of up to 80 km.
The transmit power is between -2 and +5 dBm, and the receive sensitivity is at least -24 dBm. With a receiver range of 1260 nm to 1620 nm and overload protection of -3 dBm, the module ensures stable data transmission even under difficult link conditions.
Thanks to its LC duplex connection, MSA and IEEE 802.3z compatibility and hot-plug functionality, the module can be easily integrated into existing networks – whether in data centres, campus networks or wide area networks.

Standard: 1000BASE-ZX (Gigabit Ethernet)
Data rate: 1.25 Gb/s
Range: up to 80 km over single-mode fibre
Transmitter wavelength: 1550 nm (DFB laser)
Receiver wavelength: 1260–1620 nm
Transmitter power: -2 to +5 dBm
Receiver sensitivity: min. -24 dBm
Receiver overload: max. -3 dBm
Receiver type: PIN-TIA
Form factor: SFP, hot-plug capable
Compatibility: MSA, SFF-8472, IEEE 802.3z
Operating temperature: 0 °C to +70 °C

Coding:
Cisco
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
