InLine 76660W, M.2, Seriell, Hankjønn, PCIe 3.0, 9-pin, Taiwan

Expansion card for converting M.2 to 4x serial 9-pin connectors
PCIe 3.0 x4 interfacewith support for high data rates
Automatic lane detection at bootfor easy system integration
Onboard LED indicatorto display the operating activity
Compatible with Windows and Linux

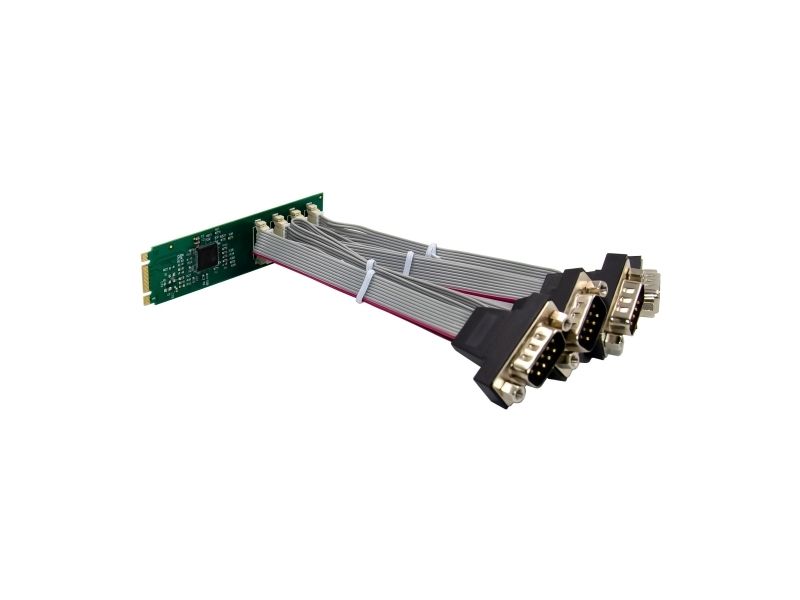

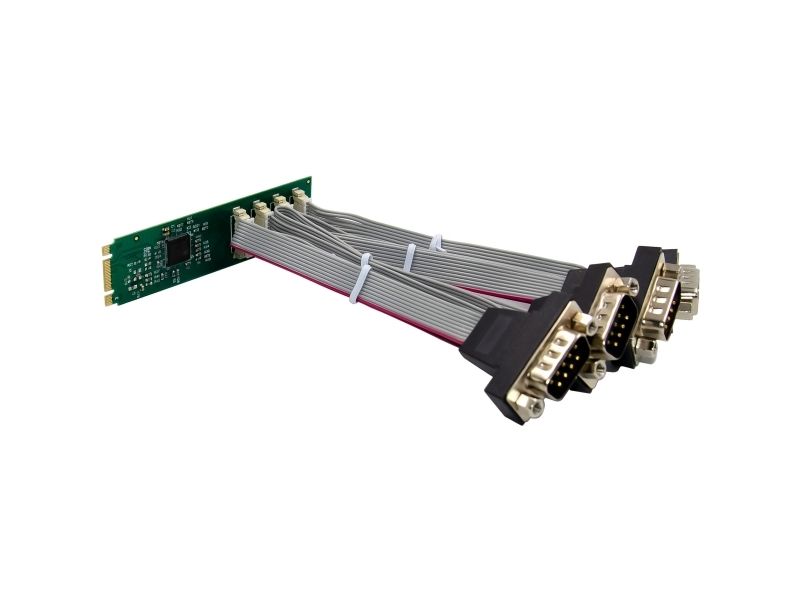

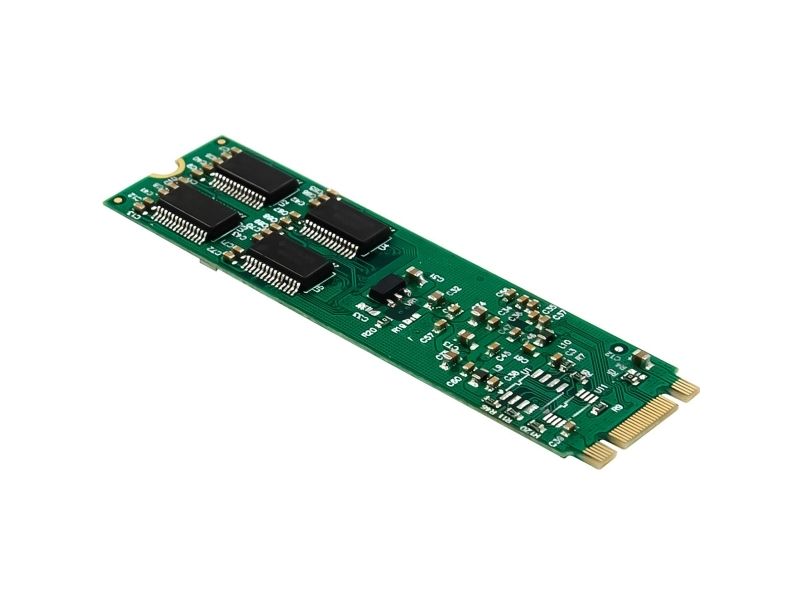

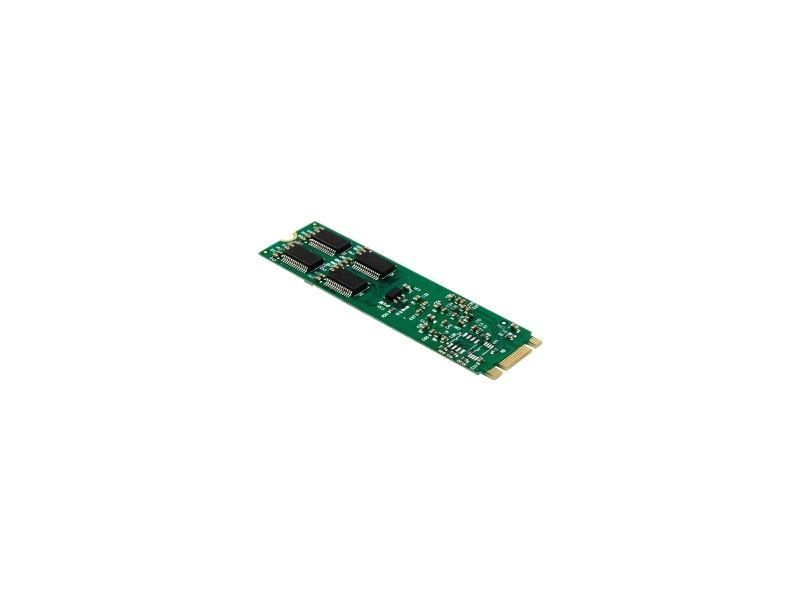

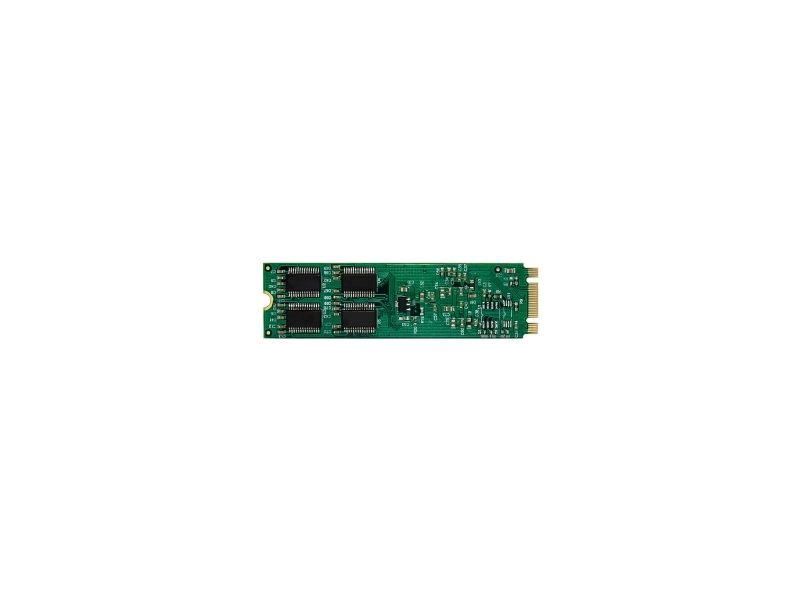

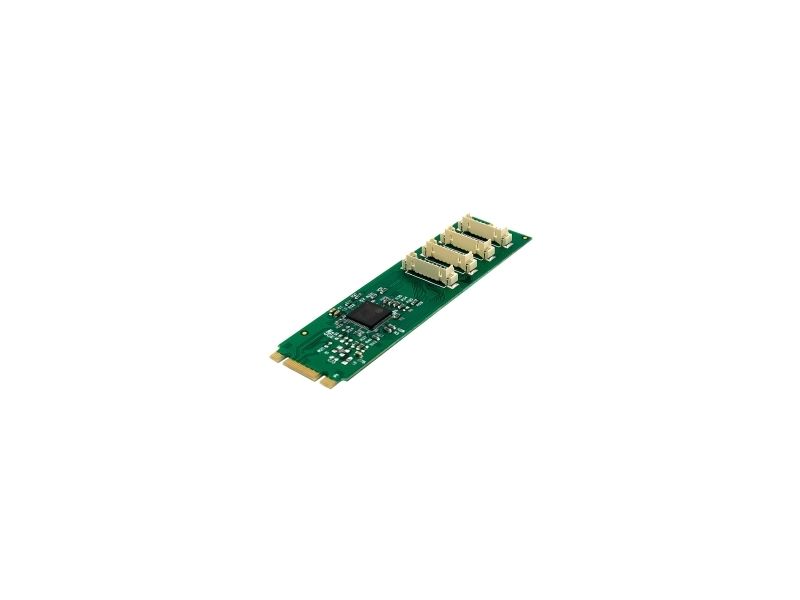

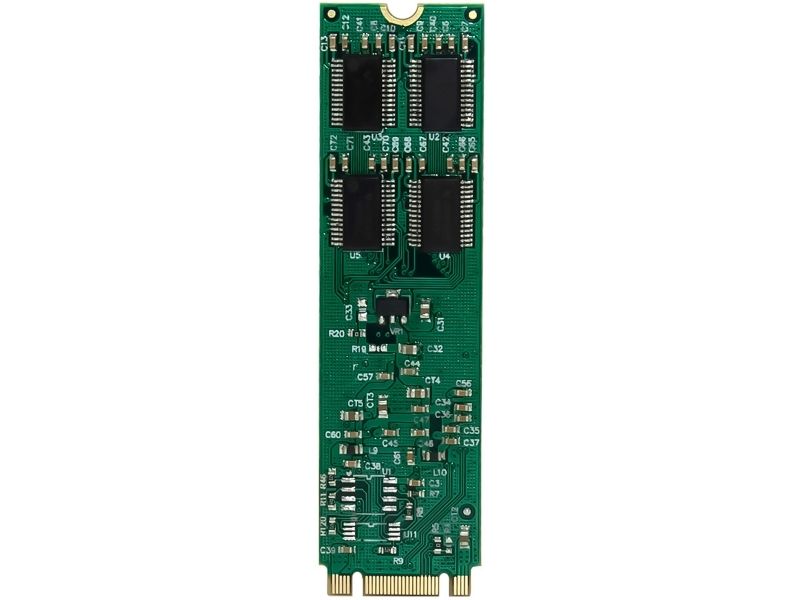

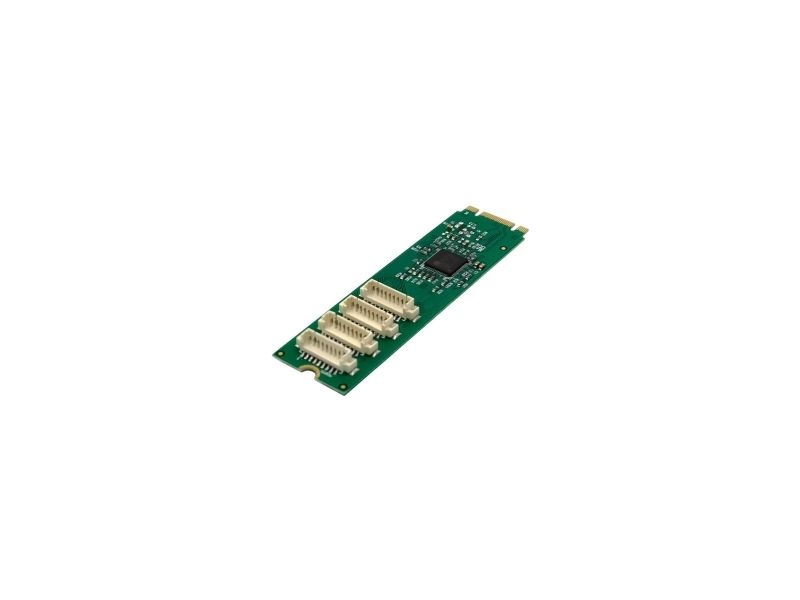

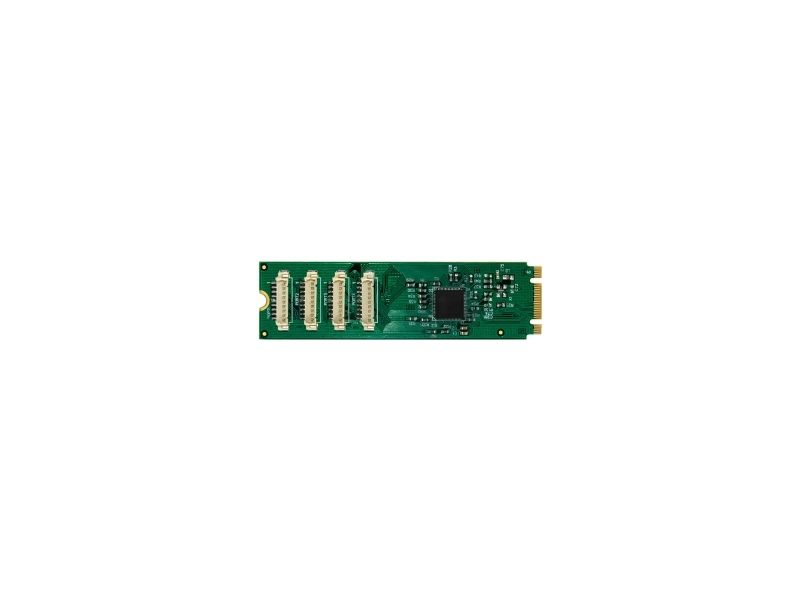

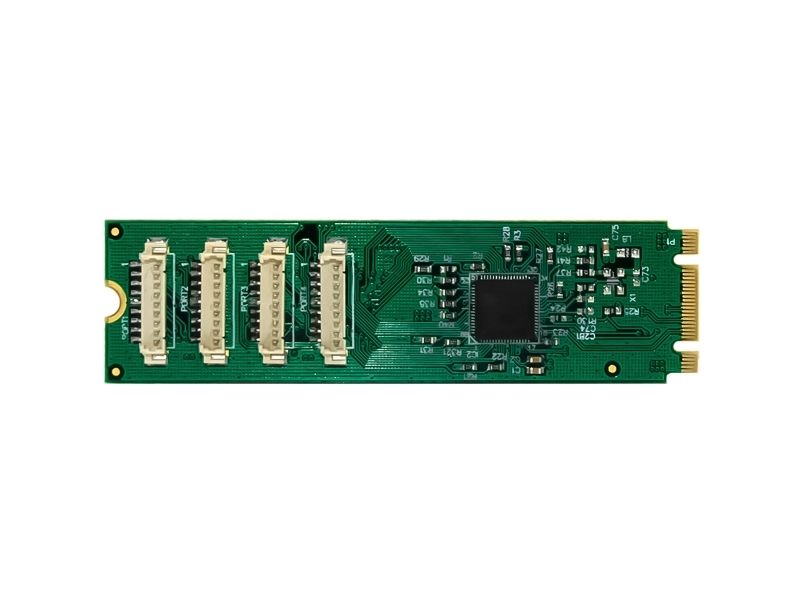

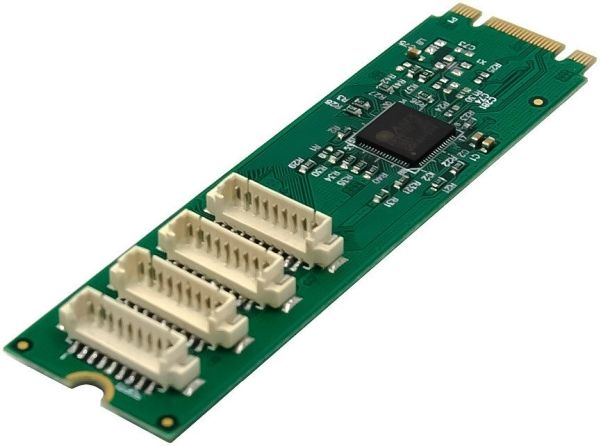

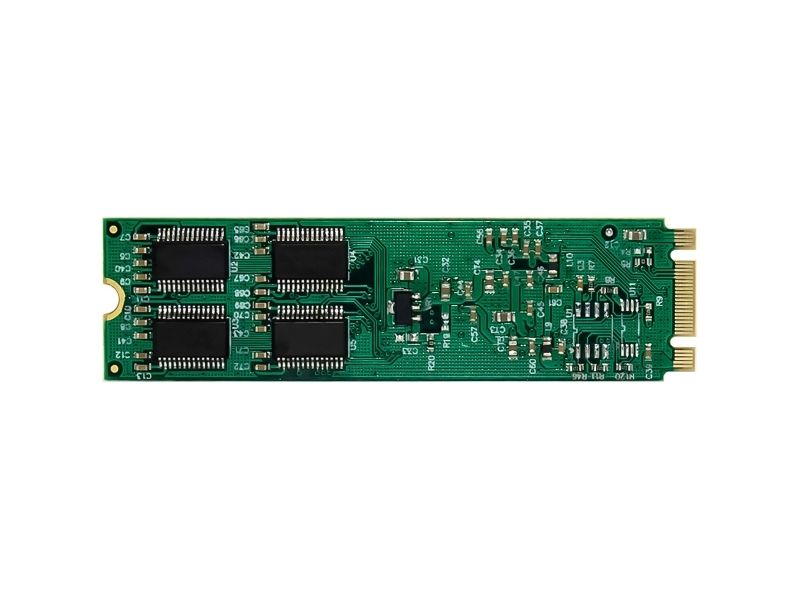

The InLine® interface card M.2 to 4x serial 9pin connectorenables the use of up to four serial interfaces (DB9-9pin) and offers a powerful conversion from M.2 to serial communication. The card is equipped with a PCIe 3.0 x4 interfaceand supports data rates of up to 4 Gb/s.
The automatic lane detection at boot ensures seamless system integration. The card is powered directly via the PCIe bus (3.3 V). The scope of delivery also includes low-profile slot bracketsso that the card can also be used in more compact systems.
Technical data:

Bus type & PCIe: PCIe 3.0 x4 (maximum bandwidth up to 4 Gb/s)

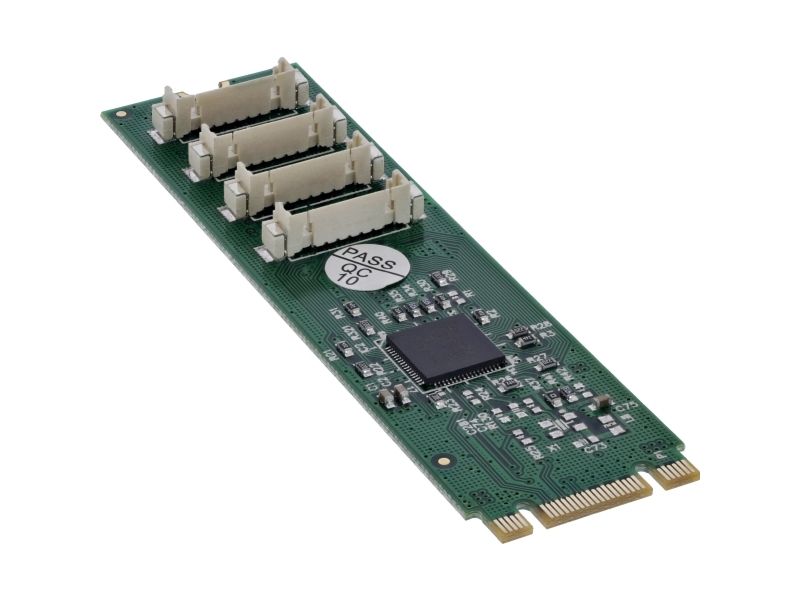

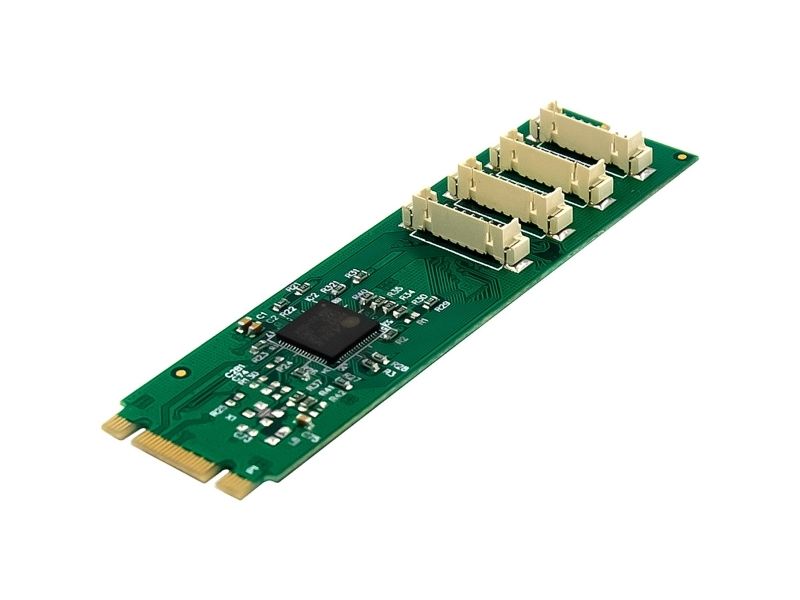

Controller/chipset: ASIX AX99100
Ports – interfaces:
1 x M.2 slot (Key M) for the module connection
4 x serial 9-pin connector (DB9-9pin)

Compatible module sizes: 2230, 2242, 2260, 2280
Dimensions: 22 mm x 80 mm (M.2 board)
Operating temperature: -40 °C to +85 °C

Functions:

Automatic lane detection during the boot process
LED indicator for displaying read/write activities
Power supply via PCIe bus (3.3 V)
No driver installation necessary

System requirements:Hardware:

Free PCIe x4 slot (also compatible with x8 or x16 slots)
Motherboard with PCIe 3.0 or higher

Operating system compatibility:

Windows: 11, 10, 8.1, 8, 7
Windows Server: 2012 R2
Linux: from kernel version 2.6

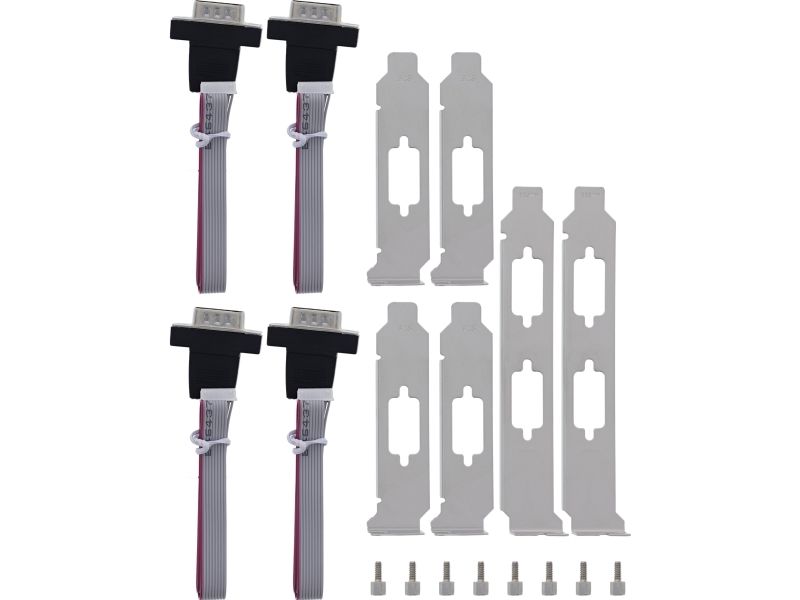

Scope of delivery:

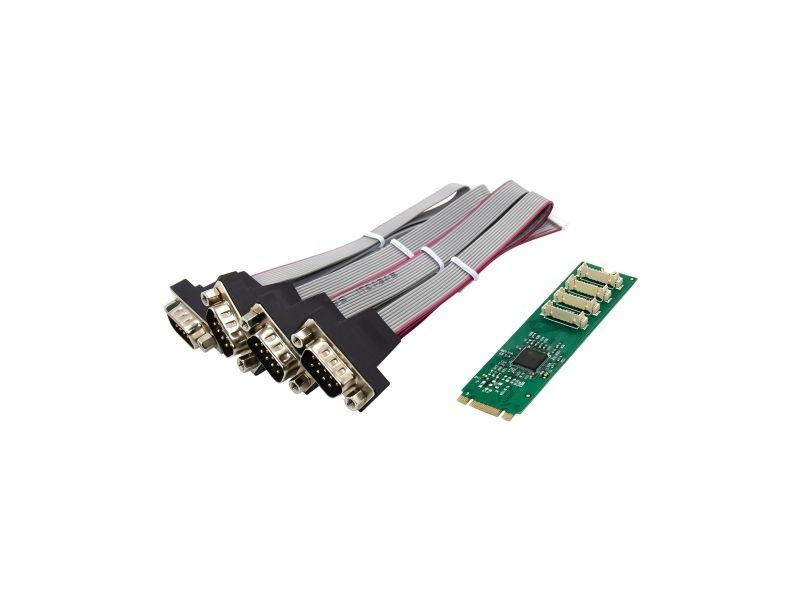

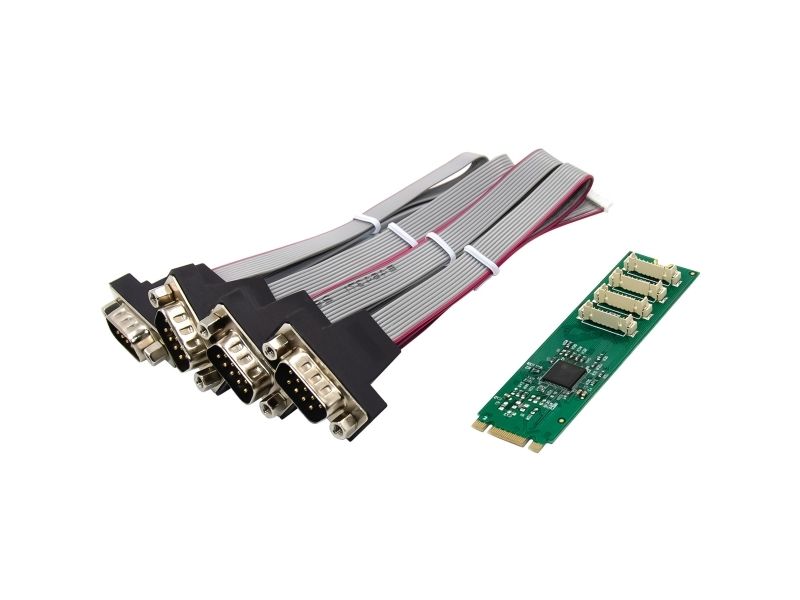

1 x InLine® interface card M.2 to 4x serial 9pin connector
4 x low-profile slot brackets
2 x high-profile slot brackets
4 x DB9 9-pin serial cables (20 cm)
10 x screw
1 x driver CD
1 x user manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing
