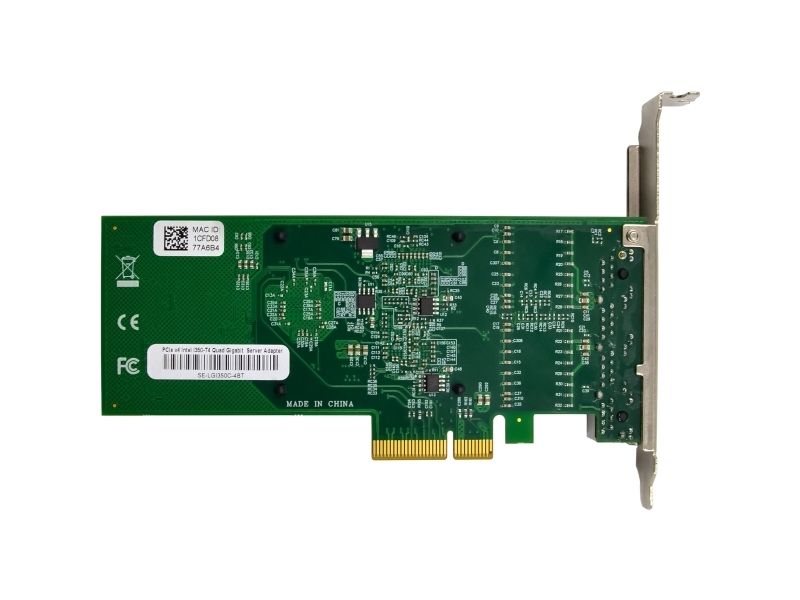

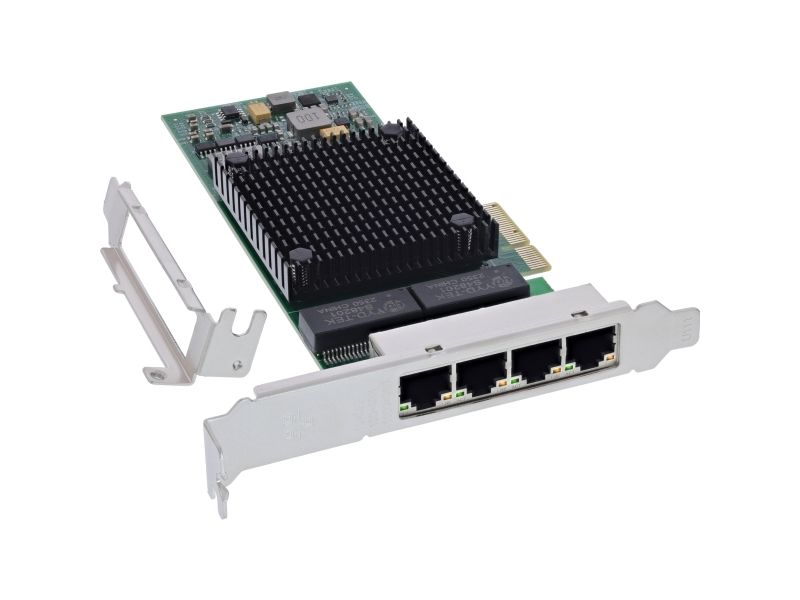

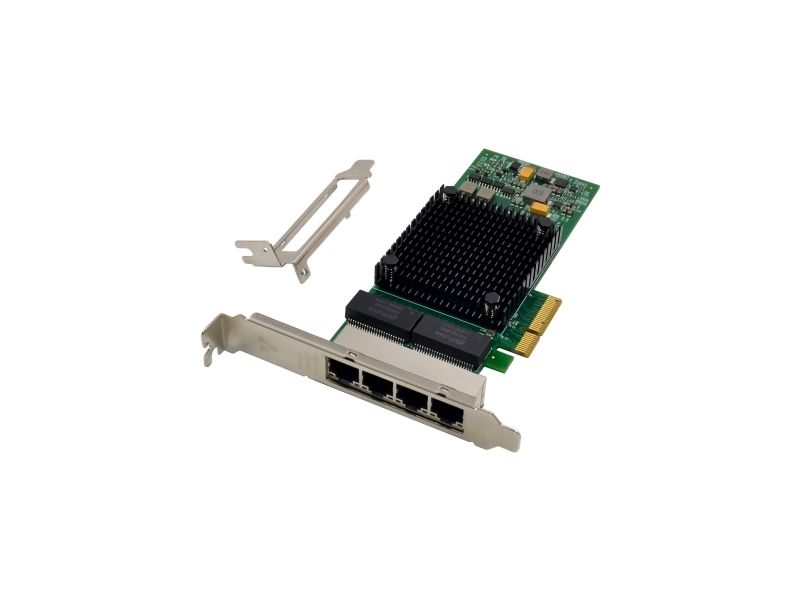

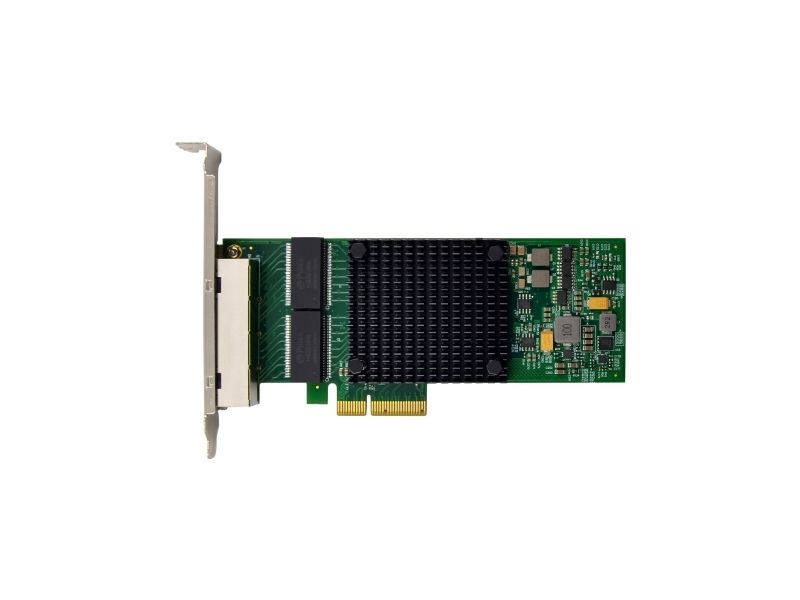

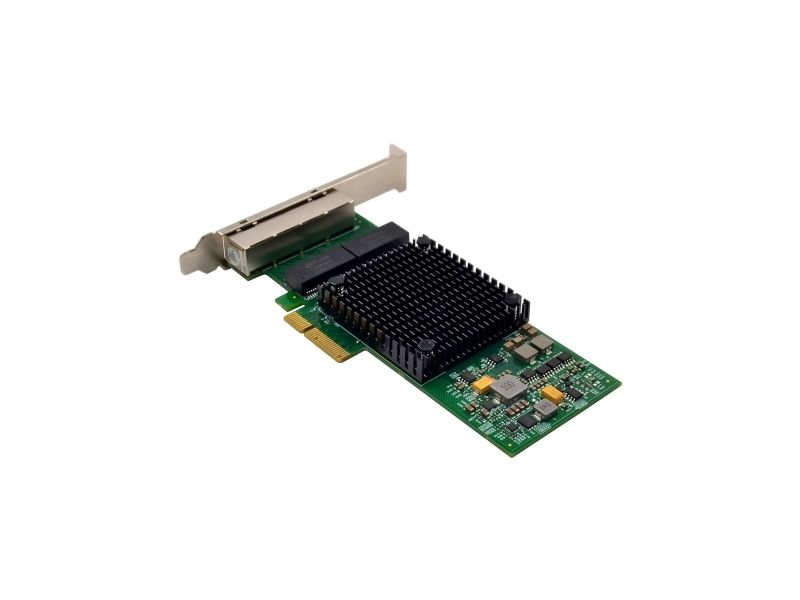

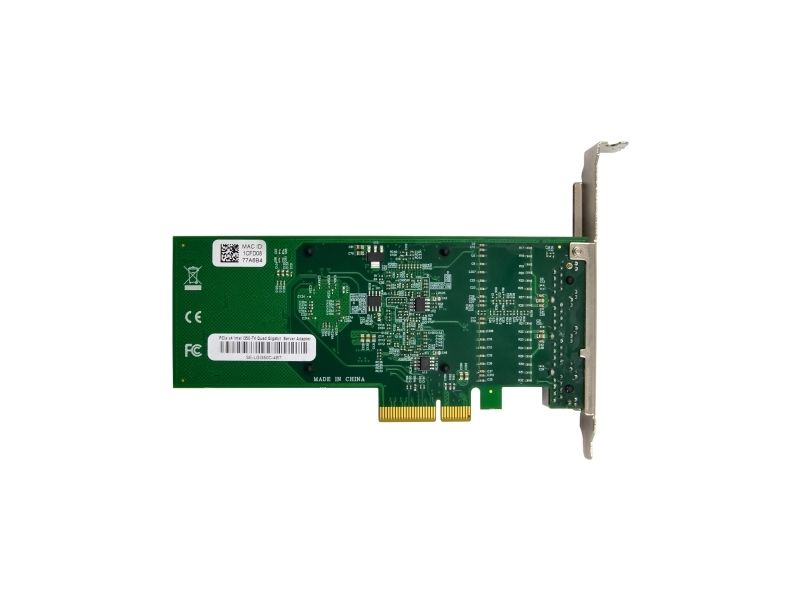

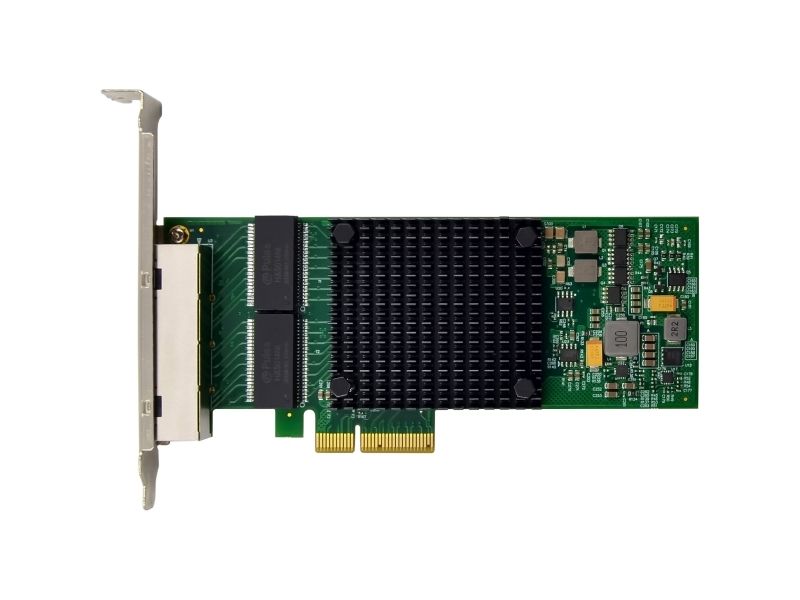

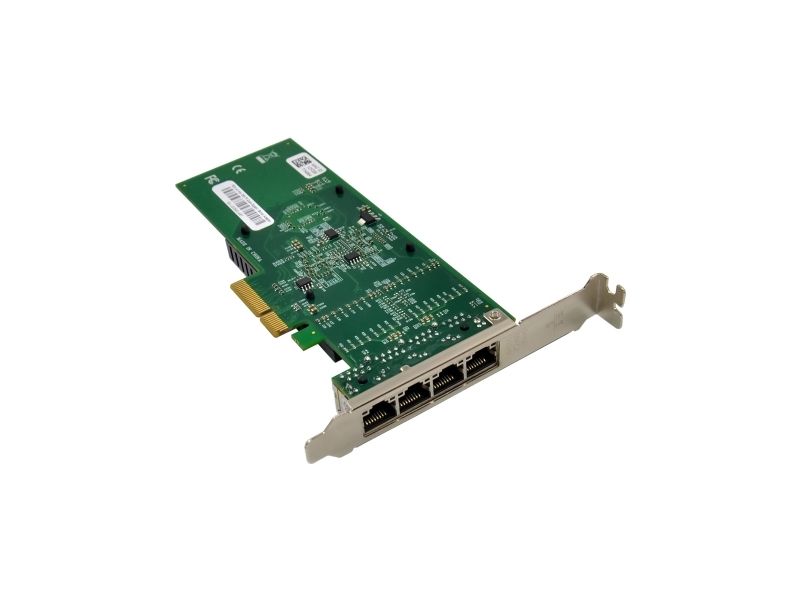

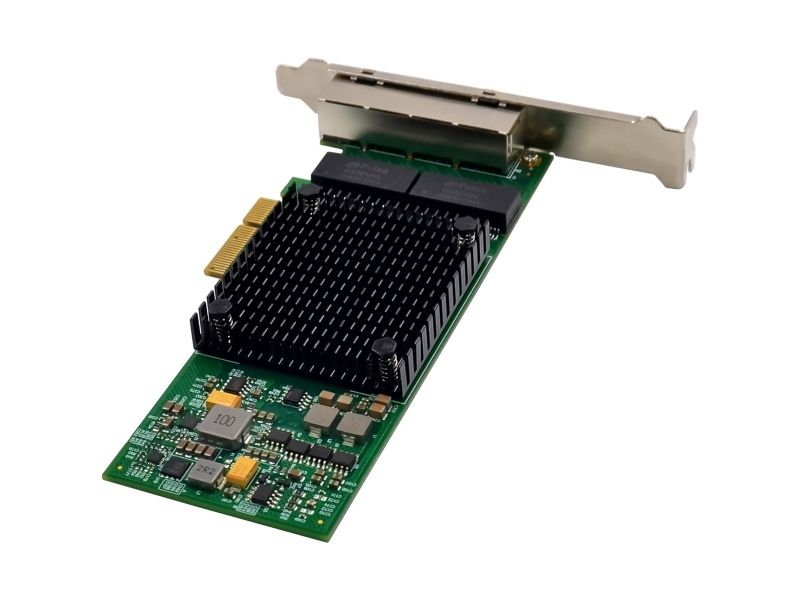

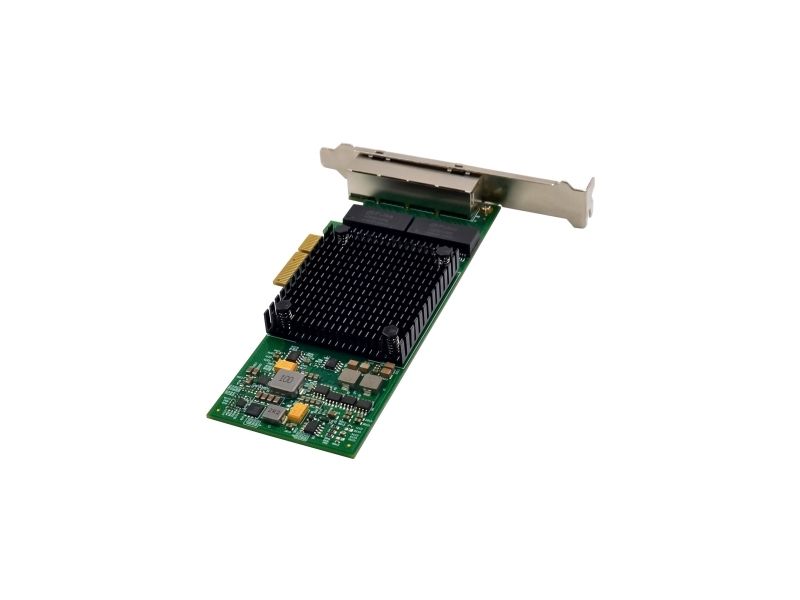

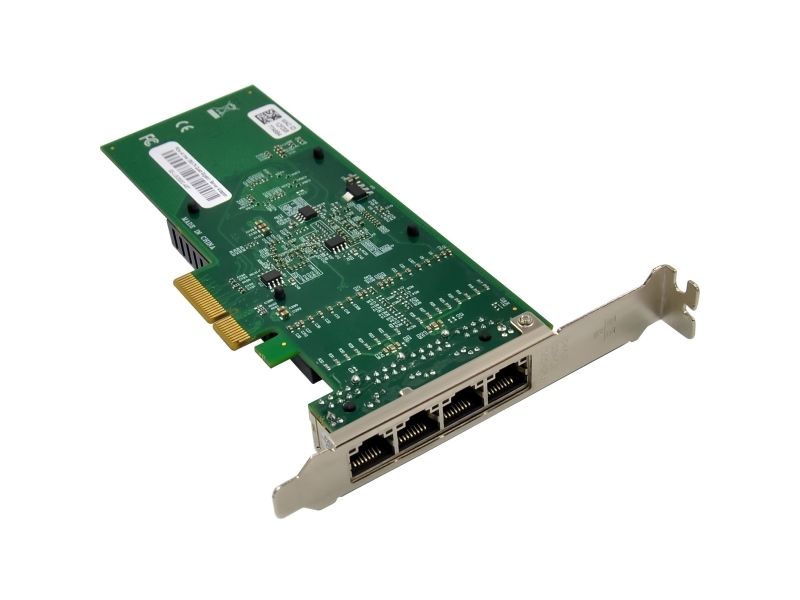

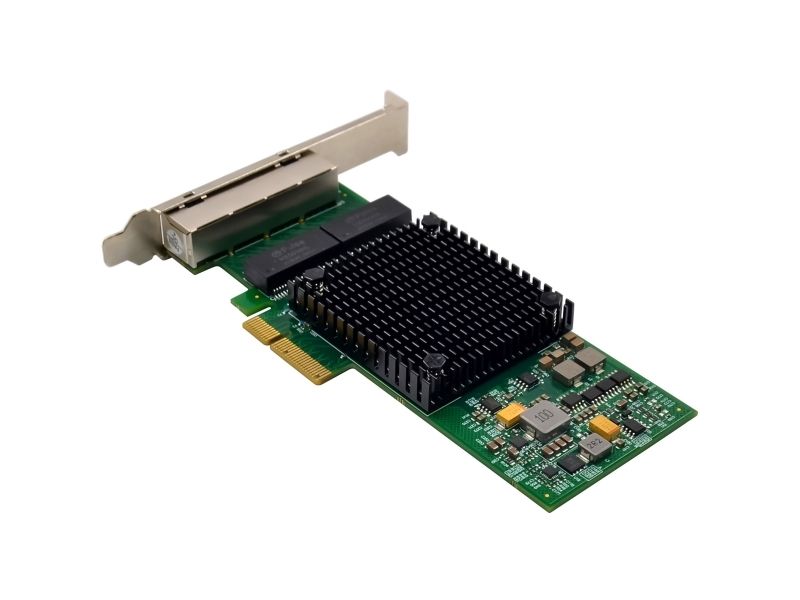

InLine Quad Gigabit-nettverkskort 4x RJ45 1 Gb/s PCIe x4 (51127E)

Four RJ45 Gigabit portsfor powerful and stable network connections
PCIe x4 interfacewith compatibility to x4, x8 and x16 slots
Supports Energy Efficient Ethernet (EEE), VLAN (802.1Q) and Jumbo Frames
Ideal for virtualized environments and iSCSI applications
Intel I350AM2*2 chipsetfor high performance and optimized energy management

The InLine® Quad Gigabit Network Cardhas been specially developed for use in servers and data centersand offers high-performance network connectionswith four RJ45 Gigabit ports. It is ideal for virtualized environments, iSCSI applicationsand professional network infrastructures.
Thanks to PCIe v2.1 (x4), the card offers a high data bandwidthand is compatible with x4, x8 and x16 slots. State-of-the-art functions such as Energy Efficient Ethernet (EEE), DMA coalescingand flexible I/O virtualization (up to 32 virtual ports)ensure highly efficient network processing.
Technical data:

Bus type & PCIe: PCIe v2.1 (5 GT/s) x4 lane (compatible with x4, x8, x16 slots)
Connection: 4 x RJ45 (copper)
Chipset: Intel I350AM2*2
Supported Internet protocols: IPv4, IPv6
Dimensions: 155 mm x 69 mm (PCIe board)

Duplex modes:

Half duplex: 10/100 Mb/s
Full duplex: 10/100/1000 Mb/s

Maximum cable length:

10BASE-T: Category 3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)

Features:

Auto-negotiation: Automatic adjustment of the connection speed
Wake on LAN (WOL): Remote start of the computer possible
Jumbo frames: Transmission of larger data packets up to approx. 9K

Advanced technical details
IEEE standards:

IEEE 802.3: Basic standard for Ethernet
IEEE 802.3u: Fast Ethernet - 100 Mb/s
IEEE 802.3ab: Gigabit Ethernet - 1000 Mb/s over copper
IEEE 802.3x: Flow Control - control of the data flow
IEEE 802.1Q: VLAN - division into logical networks
IEEE 1588/802.1AS: For precise time synchronization

Other functions:

Checksum offloading: Reduces the load on the processor during checksum calculations
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Interrupt throttling control: limitation of the interrupt rate
Support for receive-side scaling (RSS)
Virtual machines: Support for device queues and next generation VMDq (up to 8 VMs)
Management statistics & RMON support

Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s
1x low profile slot bracket
1x driver CD
1x user manual (German/English)
