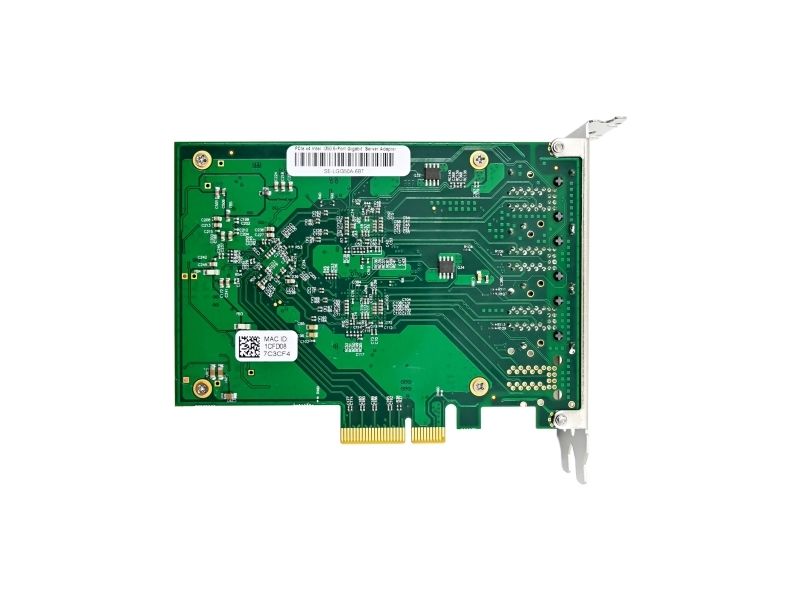

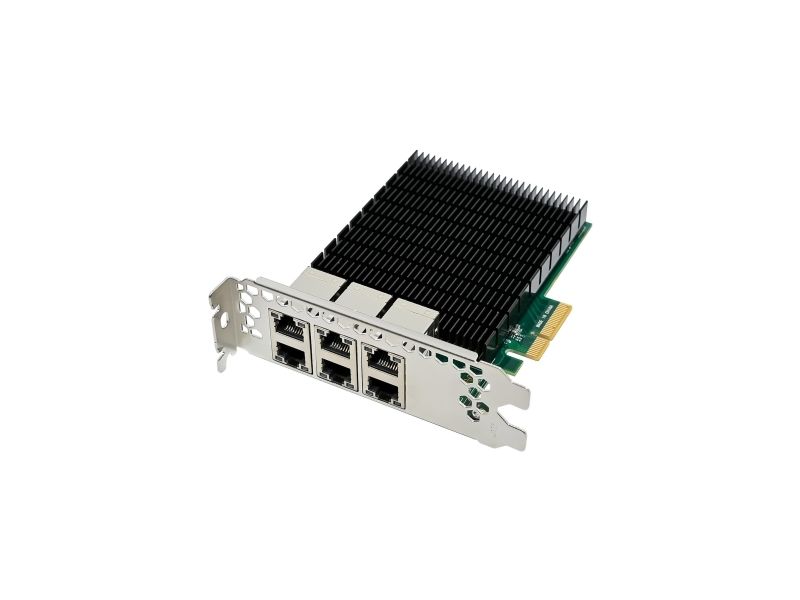

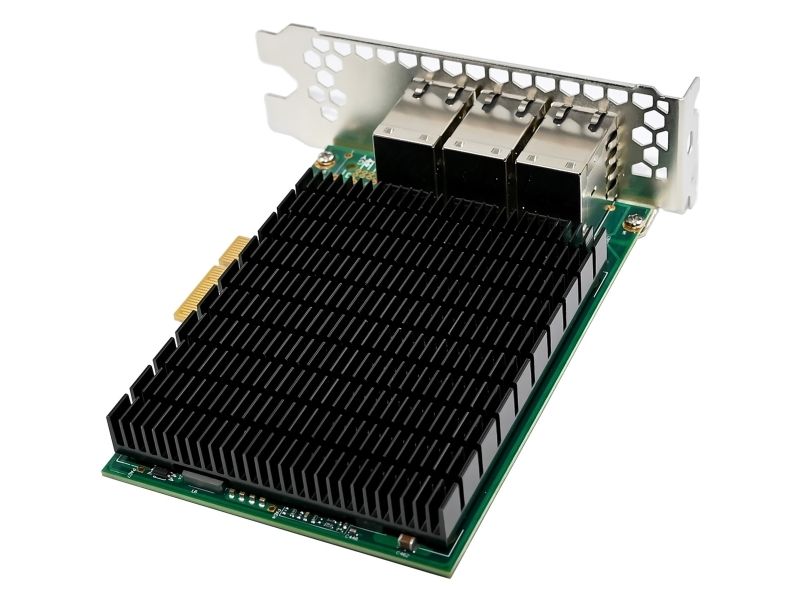

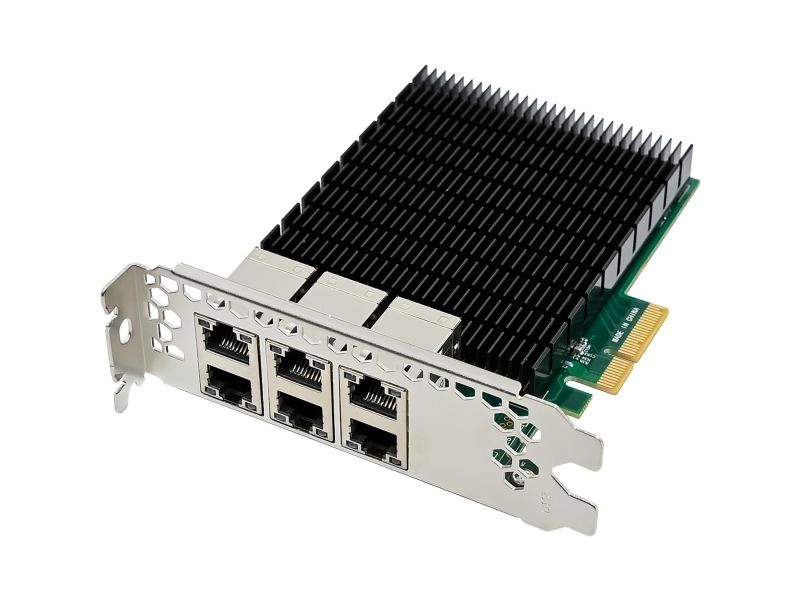

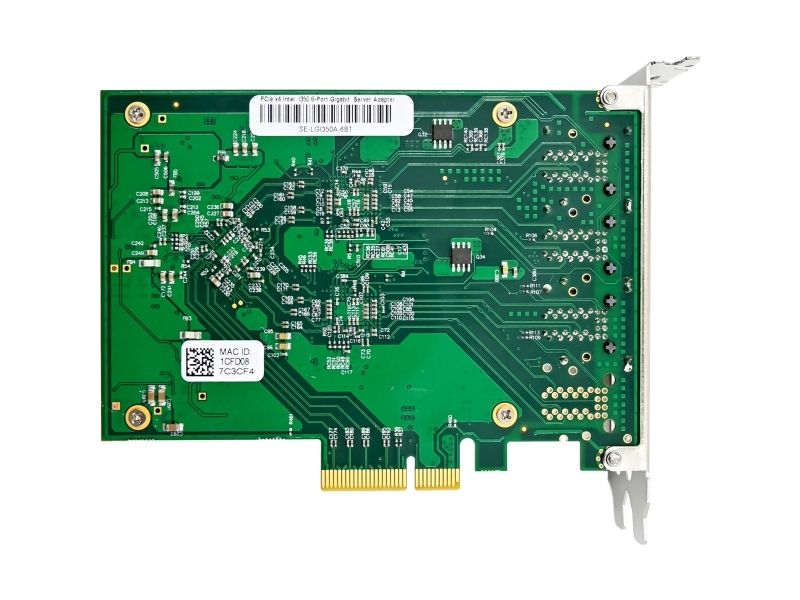

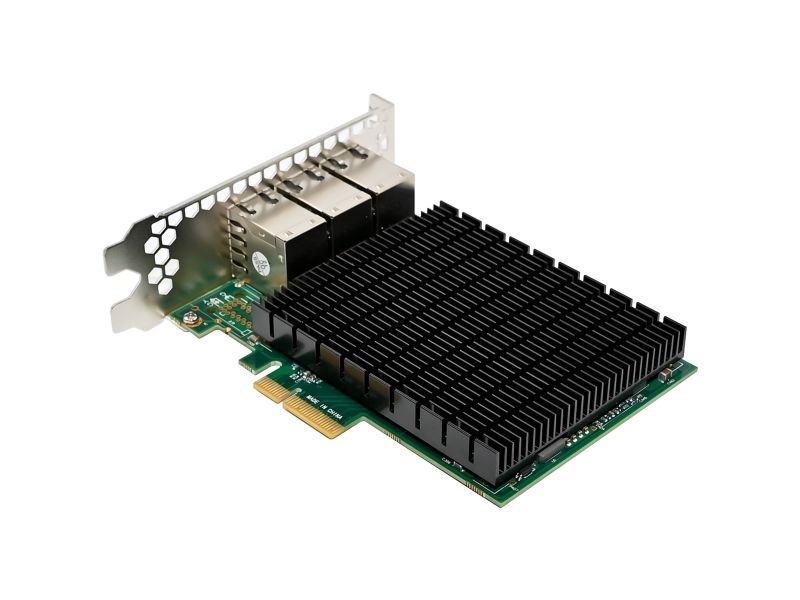

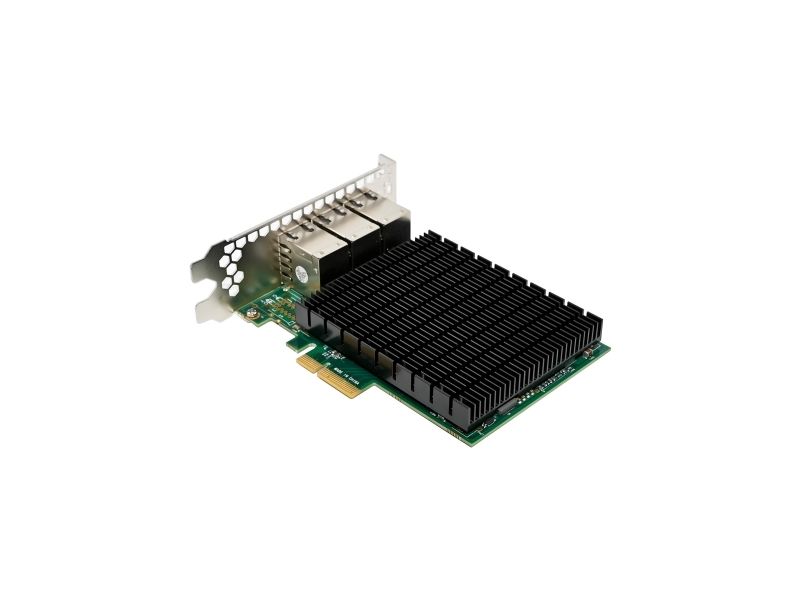

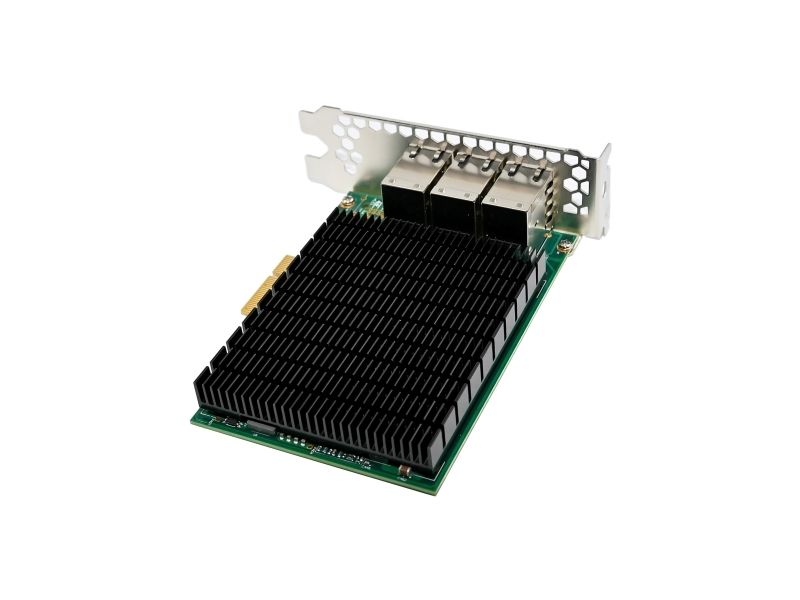

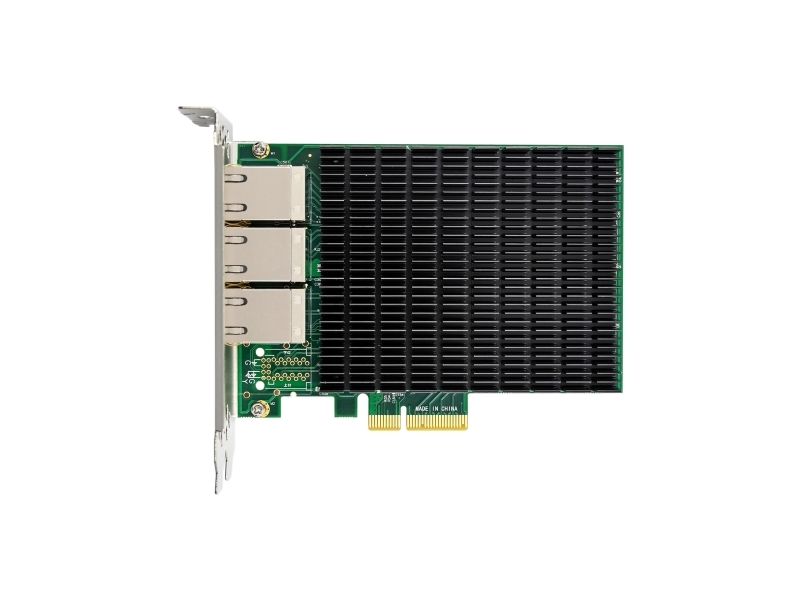

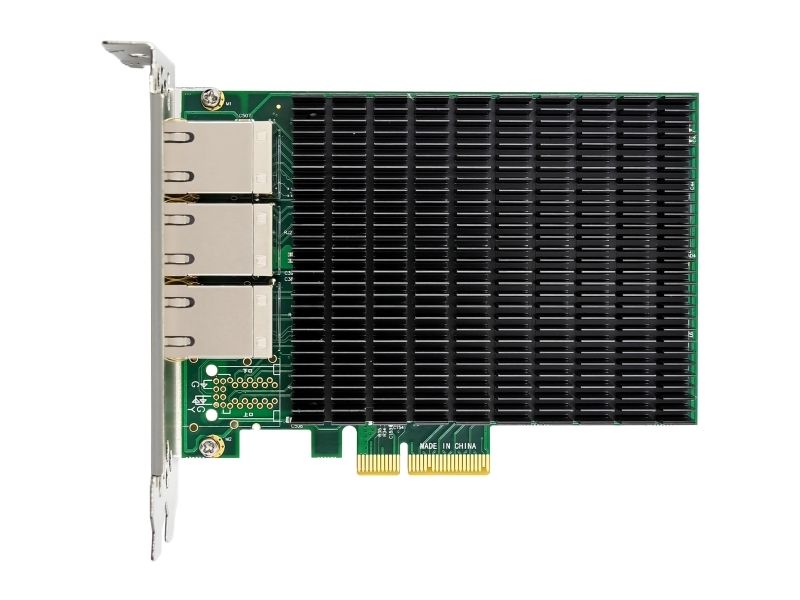

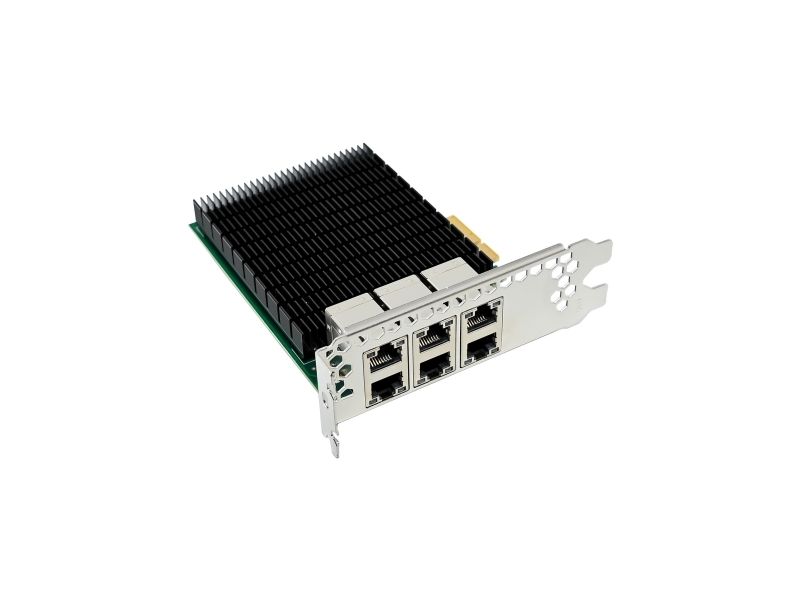

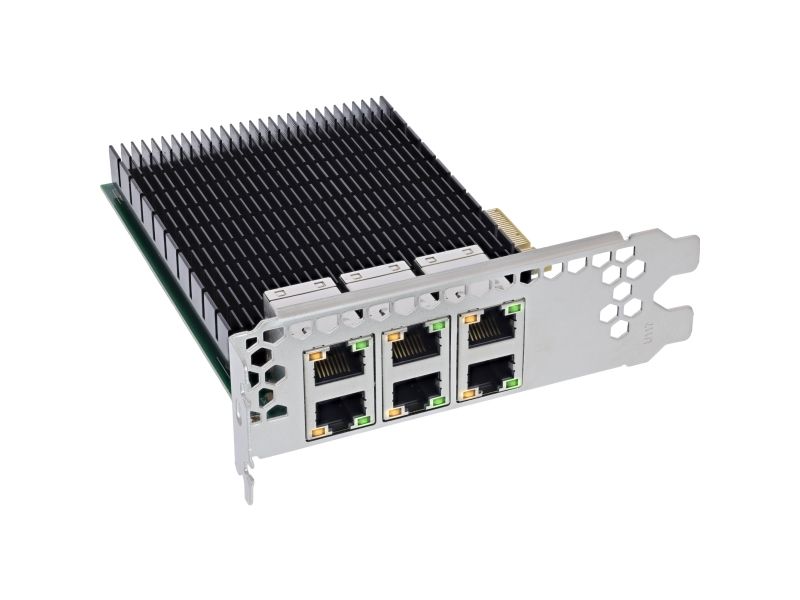

InLine 6-port Gigabit-nettverkskort 6x RJ45 1 Gb/s PCIe x4 (51127C)
Varenr.: [24316645] | Producent: Inline | Model-nr.: 51127C | EAN: 4043718341634
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
4.237,00
eksklusiv MVA 3.389,60
Totalt inkl. frakt
4.237,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Six RJ45 Gigabit portsfor a stable and fast network connection
PCIe x4 interfacefor high bandwidth and efficient data transmission
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Ideal for servers, workstations and AV applications
Intel I350AM4 chipsetfor high performance and energy efficiency
The InLine® 6-way Gigabit network cardis a powerful network solution for professional server, workstationand AV applications. With six Gigabit Ethernet ports, it offers high flexibility and stabilityfor demanding network environments.
Thanks to a data rate of up to 1 Gb/sper port, the card supports modern network technologies such as VLAN (802.1Q), Flow Control (802.3x) and Jumbo Frames (up to 9K). The Intel I350AM4 chipsetensures efficient network processing and optimized resource usage.
Thanks to the PCIe x4 interface (v2.1), the card achieves a high bandwidth of up to 5 GT/sand is compatible with various system configurations. Energy Efficient Ethernet (802.3az)helps to reduce energy consumption.
Technical data:
Bus type: PCIe v2.1 (5 GT/s) x4 lanes
Connection: 6 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:
10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full duplex mode
Maximum cable length:
10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)
Chipset: Intel I350AM4
Supported protocols: IPv4, IPv6
Dimensions: 132 mm x 98 mm (PCIe board)
Network & protocol support:
Supported IEEE standards:
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 1588, 802.1AS (time synchronization)
Functions:
Auto-negotiation (10/100/1000 Mb/s)
Supports Wake-on-LAN (WOL)
Support for Jumbo Frames (up to 9K)
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® 6-way Gigabit network card, 6x RJ45 1 Gb/s
1x driver CD
1x operating instructions (German/English)
