FiberX FX-I360-020, 20 m, HDMI Type A (Standard), HDMI Type A (Standard), 3D, 18 Gbit/sek., Svart

AV TRANSMISSION VIA FIBER / COPPER HYBRID CABLE

The armored Active HDMI Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports an HDMI total bandwidth of up to 18Gbps, still being lightweight and flexible. The cable features a tight and durable bending radius of only 45mm with an ultra-strong steel spiral underneath the cable jacket. Using an advanced optical engine, this HDMI Hybrid Cable provides full HDMI signal integrity over a max. of up to 100m cable length without requiring external power (Plug&Play).

FiberX AOC - The Best of Armoured Copper and Fiber Technologies

The FiberX FX-I360 is the perfect solution for transmitting full-bandwidth video and audio signals over long distances and under very harsh and demanding conditions.
The AOC hybrid cable is made of copper and fiber conductors and thus allows full and uncompressed 4K@60Hz with 18Gbps over up to 100m.
Beneath the outer jacket, the cable features a steel spiral, protecting it against any environmental damage over the complete cable length - The connectors are made of steel as well!

With the "integrated" AOC fiber optic HDMI cable FX-I360 from FiberX, the lossless and uncompressed transmission of up to 18Gbps is possible, allowing to transmit contents in UltraHD / 4K / 2160p with 60Hz.
The maximum lossless transmission distance of this hybrid cable made of fiber and copper strands is 100 meters.
This makes it the first available technical solution with full CEC, EDID and HDCP support.
Thanks to the latest chipset, these "integrated" variants also transmit a digital audio signal.
The armored cables feature a steel spiral protecting the conductors, with a minimal bending radius of only 45mm.

The latest technology
Using hybrid technology, all HDMI data (e. g. EDID, HDCP, CEC, etc.) can be transmitted from the transmitter to the receiver for the first time. This also includes the 5V line of a conventional HDMI connection, which unfortunately cannot be transmitted via pure fiber optic lines. All products in the series are 3D enabled and offer full support for HDCP and Real Pass through EDID in real time, eliminating the need for EDID learning. The built-in chipsets are also equipped with a reclocking function and of course also support digital audio.

Pre-assembled lengths

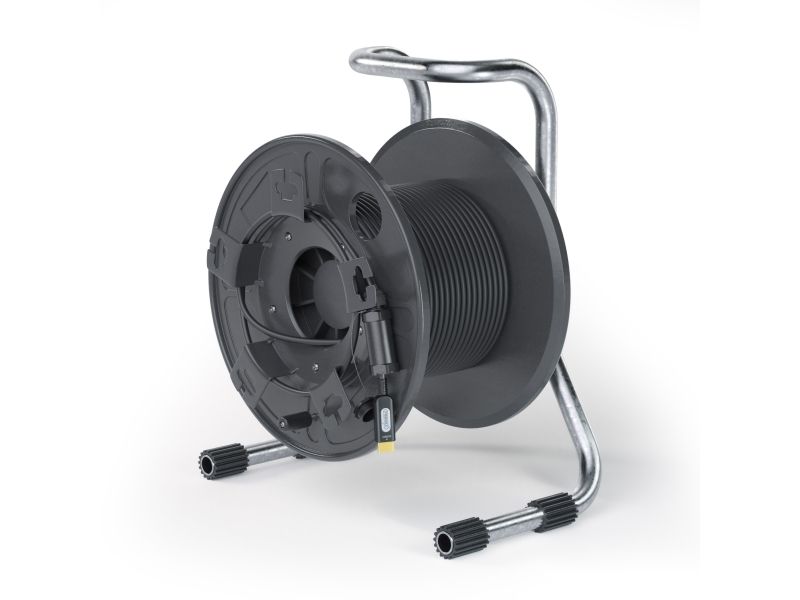

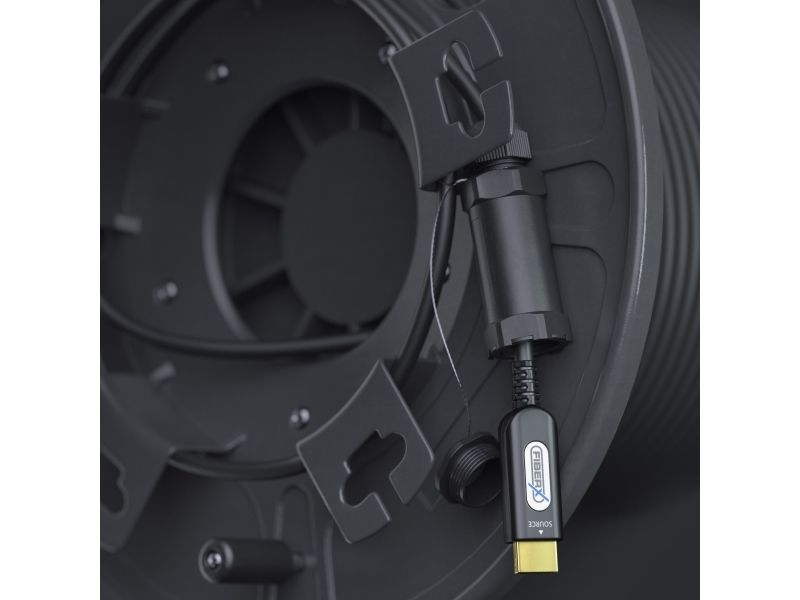

The FX-I360 series is available in the lengths of 10m up to remarkable 100m, each with pre-assembled, black HDMI connectors (also made of steel) on both sides and delivered on a reel.

Please note

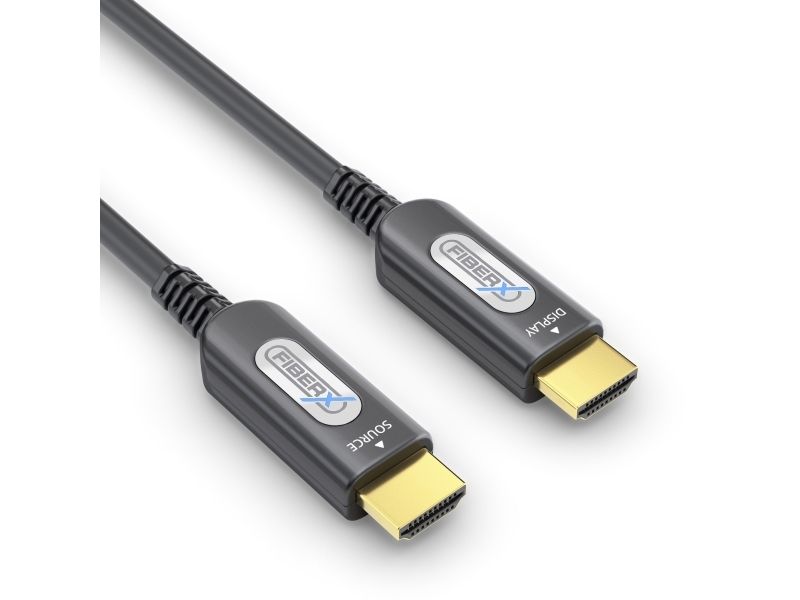

The cable is uni-directional and must not be connected to the wrong port - the ends are clearly marked with "source" and "sink". The successful connection to an HDMI adapter can not be guaranteed.

For professional applications and installations
All FiberX products are manufactured exclusively in state-of-the-art manufacturing facilities. During the manufacturing process, the products undergo a variety of quality tests, making them the most reliable choice on the market.
