Weller T0053501699N

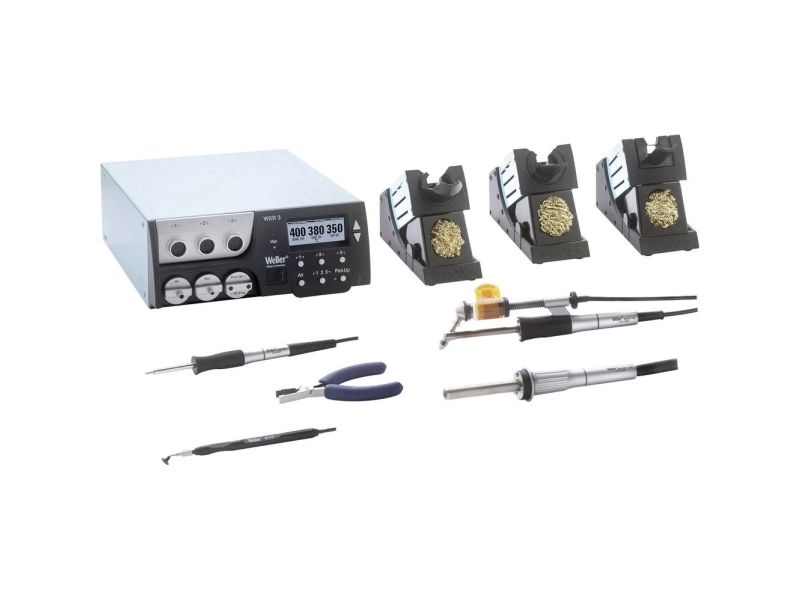

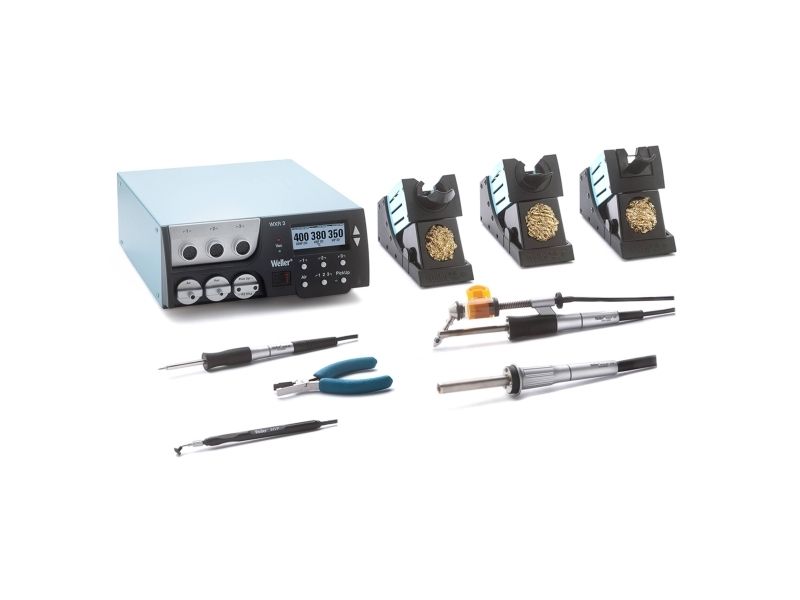

Weller WXR 3030 Soldering Station Set
Introducing the WXR 3030 from Weller, the 600W rework station uses three channels supporting three different tools. It's the perfect solution for all your soldering, desoldering and hot air jobs. The WXR 3030 provides versatility and is compatible with a wide range of tips and accessories, also with two integrated pumps. The pumps allow the system to be independent of separate compressed air supply. The WXR 3030 rework station includes a power unit, soldering and desoldering iron, hot air iron, vacuum pick up tool, desoldering nozzle pliers and soldering iron rests.
What's included?
WXR 3 600W Power Unit
WXHAP 200 Hot Air Iron
WXDP 120 Desoldering Iron
WXP 65 Soldering Iron
WVP Vacuum Pick Up Tool
PDN Desoldering Nozzle Pliers
WDH 10/30/70 Soldering Iron Rests
Power Unit
Introducing the WXR 3 fromthe Weller 3030 set, this digitally controlled soldering station uses an LCD display, that can easily track the temperatures for the tools selected. The WXR 3 station supports up to three tools at 200W each. The station an additional port for USB to datalog and parameter configurations.
The power unit has a temperature range is from 100°C to 450°C (212°CF to 842°CF), offering a great deal of flexibility for various soldering applications. The Weller WXR 3 soldering station is ESD protected and offers a temperature accuracy of ?±9°C. There is a 3.5mm jack plug and socket on the back of the soldering unit for equipotential bonding. Equipotential bonding enables you to be ESD safe by joining metalwork that may be earthed, to avoid any potential malfunctions from ESD.
Soldering Iron
Part of this WX 3030 soldering set is the WXP 65 soldering iron, this high performance and ergonomically designed iron is great for accurate soldering. The 65W intelligent soldering iron is ideal for small and medium components with average energy demand. Interchangeable heating elements provide a great deal of flexibility when using different soldering iron tips. Easy to change out XNT tips enable to quickly change out a tip if required for different tasks.
Desoldering Iron
The WXDP 120 desoldering iron is high-performance and intelligent iron is capable for most desoldering applications. Equipped with an integrated solder collector, which constructed from glass allowing the iron to be stored whilst still warm. Designed to be used with the WDH 70 soldering iron rest.
Vacuum Pick Up Tool
Introducing the WVP vacuum pick up tool also part of the WXR 3030 set, this can easily and safely handle components. Supplied with two sizes of vacuum nipples for different applications.
Soldering Iron Rest
The Weller WDH 10/30/70 soldering iron rest is an ideal place to keep the soldering, desoldering and hot air iron when not in use. Supplied with brass metal wool for dry tip cleaning, integrated into the stand. The holder offers four positions between 30°C to 80°C angles for an ergonomic position.
Features and Benefits
Temperature accuracy of ?±9°C
600 W Power station for high-level productivity
Support up to three tools
An additional USB port for data logging
Automatic tool recognition
Features digital display for easy temperature readings
WVP Vacuum pipette to move components safely
Tools for soldering and desoldering of large SMT components
ESD Protected
EU Plug and UK Plugs
Typical Applications
Soldering stations and soldering iron are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering irons are often used by:
Engineers
Electricians
Metalworkers
Jewellers
Home inventors
FAQ's
Does it display in Centigrade or Fahrenheit?
This solder station only shows Centigrade (°C). The temperature range is from 100°C to 450°C (212°CF to 842°CF).
What plug does the Weller WXR 3030 use?
This soldering station has both UK and EU plug adapters.
Note
Please be aware solder wire is not included with this Soldering Station. Why not try RS brand Solder wire?
