M5Stack U009, Fargemodul, Hvit, 32,2 mm, 24,2 mm, 8,2 mm, 4 g
Varenr.: [24084861] | Producent: M5Stack | Model-nr.: AN-18082 | EAN: 6972934170606
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Bring – Leveres til pakkeboks nær deg
59,00
Bring – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
329,00
eksklusiv MVA 263,20
Totalt inkl. frakt
388,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
COLOR is color recognition unit integrated with TCS3472 chipset. As the name says, COLOR is able to detect color value and return RGB data as response.
Identify color principle: The TCS3472 chipset integrated with 3*4 array of filtered photodiodes and a 16 bit analog-to-digital embedded converters. Out of the 12 photodiodes, 3 have red filters, 3 have green filters, 3 have blue filters and 3 have no filter (clear), which gives a total range of RGBA (RGB + Transparency)
When detecting the color of an object the TCS3472 returns data from four channels: red(R), green(G), blue(B) and clear(C)(non-filtered). The response from the red, green and blue channels (RGB) can be used to determine a particular source’s chromaticity coordinates (x, y).
When we get coordinates (x, y), please reference the below figure so as to get the recommended color.

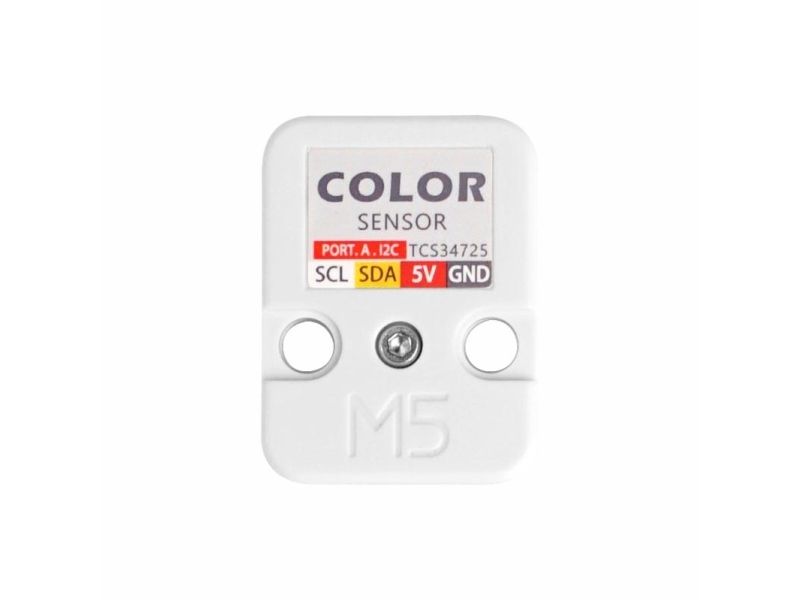

This Unit communicates with the M5Core via the GROVE A interface(I2C). Address is 0x29.
Identify color principle: The TCS3472 chipset integrated with 3*4 array of filtered photodiodes and a 16 bit analog-to-digital embedded converters. Out of the 12 photodiodes, 3 have red filters, 3 have green filters, 3 have blue filters and 3 have no filter (clear), which gives a total range of RGBA (RGB + Transparency)
When detecting the color of an object the TCS3472 returns data from four channels: red(R), green(G), blue(B) and clear(C)(non-filtered). The response from the red, green and blue channels (RGB) can be used to determine a particular source’s chromaticity coordinates (x, y).
When we get coordinates (x, y), please reference the below figure so as to get the recommended color.
This Unit communicates with the M5Core via the GROVE A interface(I2C). Address is 0x29.
