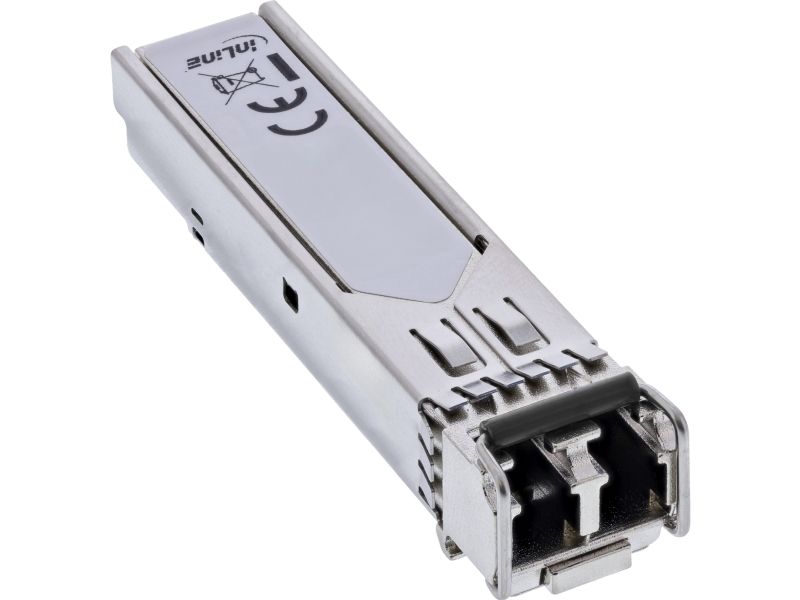

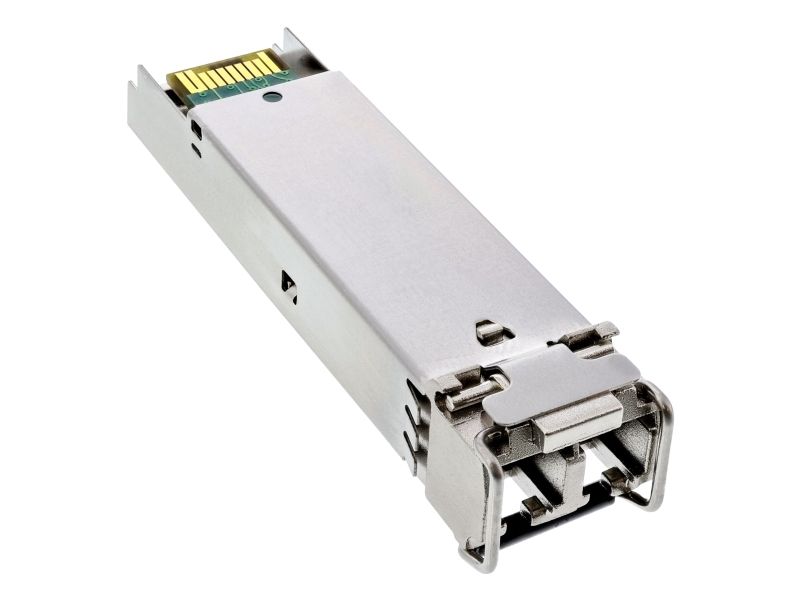

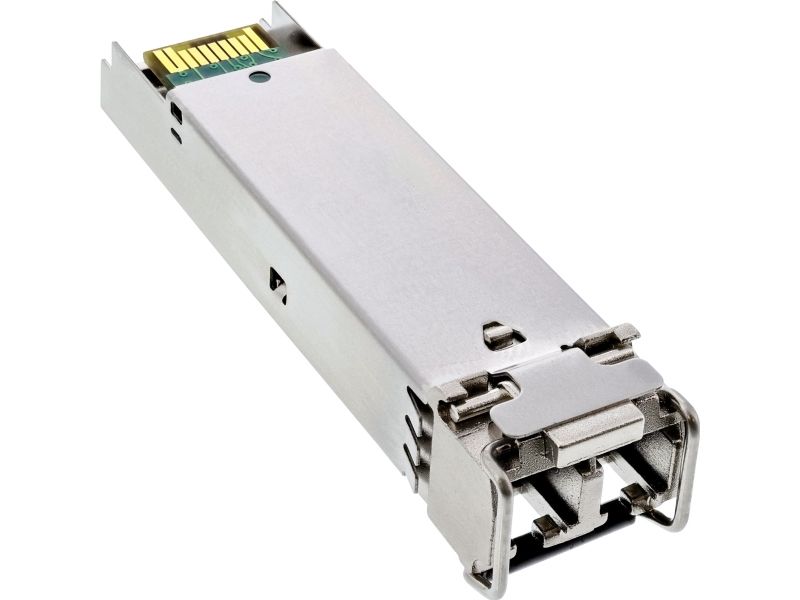

InLine 32335P, Fiberoptikk, 10000 Mbit/s, SFP+, LC, 300 m, 850 nm

The InLine® SFP+ module is a powerful and reliable solution for use in professional network environments. With a data rate of up to 10.3 Gb/s and a range of 300 metres, it is ideal for high-speed data connections in data centres, corporate networks and storage area networks (SANs). The module complies with IEEE 802.3ae, SFP MSA and SFF-8431 industry standards and can be easily integrated into existing network infrastructures. It features an LC duplex interface and utilises 850nm VCSEL laser technology, ensuring reliable and efficient data transmission. Thanks to the digital diagnostic monitoring (DDM) function, module performance can be analysed in real time, which facilitates maintenance and increases network security.

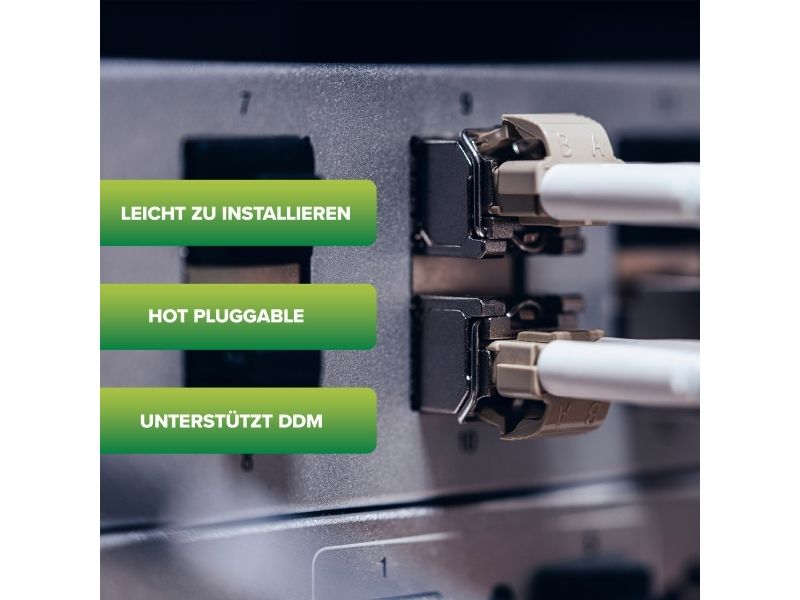

With an operating voltage of +3.3 V and a hot-pluggable design, the module is easy to install and replace without disrupting ongoing operations. Its robust construction and operating temperature range of 0 °C to 70 °C make it a reliable choice for demanding network environments. Technical specifications: Wavelength: 850 nm 850 nm Average optical power: -6.5 dBm ~ -1 dBm I2C interface with integrated digital diagnostics monitoring Electrical interface according to SFF-8431

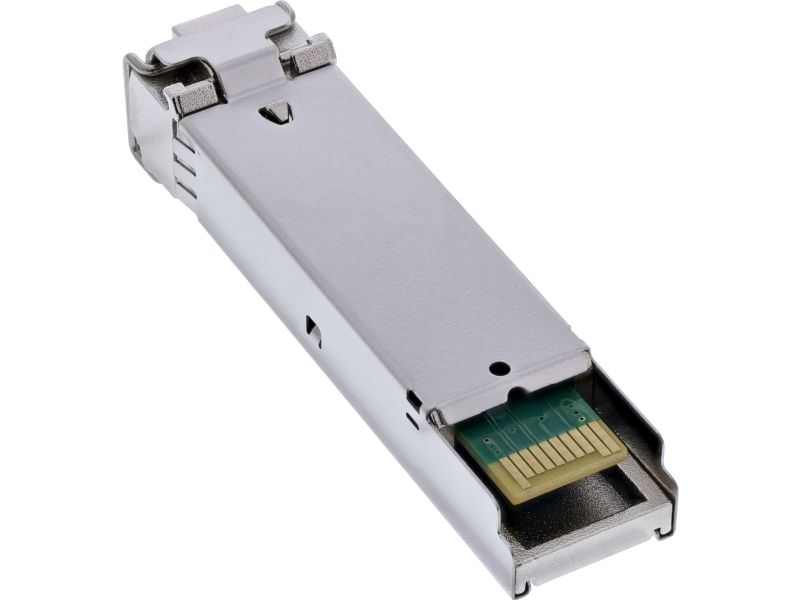

Pin definitions: 1-10 towards BEZEL, 11-20 towards ASIC
Storage temperature: -40 °C to 85 °C

Coding:
Intel
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.
